214115 Series
Manufacturer: Molex
Beta
⌘K

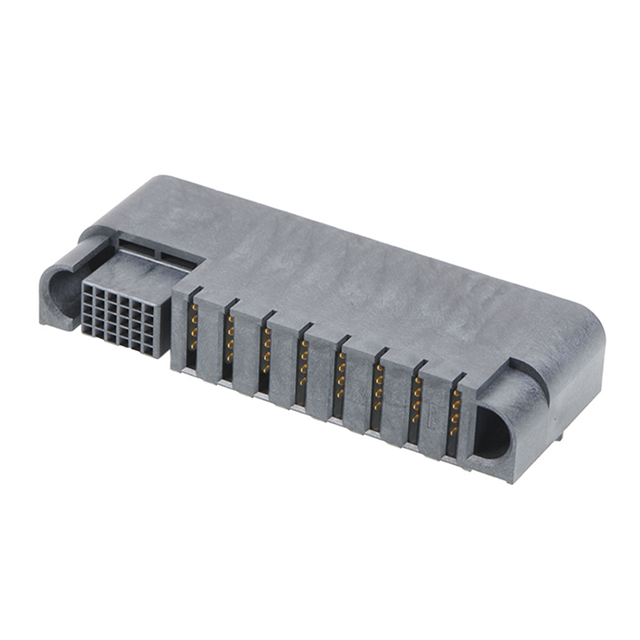

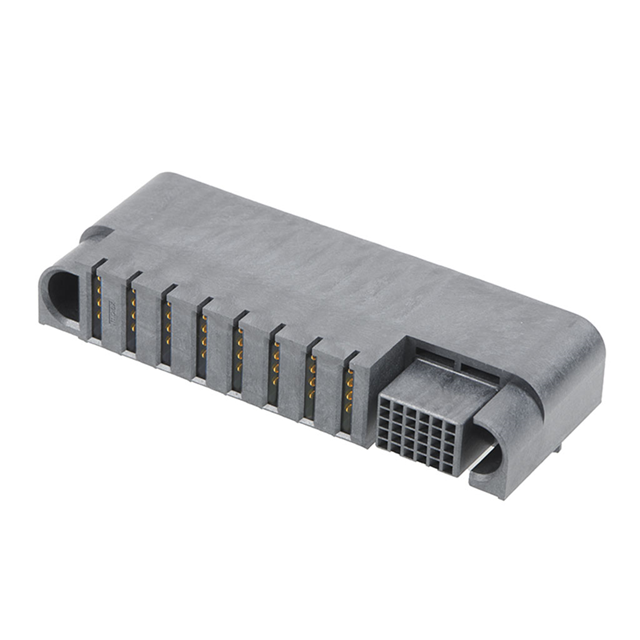

EXTREME GUARDIAN RIGHT-ANGLE RECEPTACLE ASSEMBLY WITH GUIDE RECEIVERS, 4 POWER CIRCUITS, 30 SIGNAL CIRCUITS, 4 POWER CIRCUITS
| Part | Contact Material | Mounting Type | Number of Positions | Features | Number of Rows | Fastening Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Color | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Current Rating (Amps) | Material - Insulation | Voltage Rating | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Copper Alloy | Through Hole Right Angle | 38 | Board Guide Mating Guide | 5 | Push-Pull | Solder | 0.76 Ám | 30 Áin | Black | -40 °C | 105 ░C | Receptacle Female Blade Sockets | 80 A | Liquid Crystal Polymer (LCP) | 125 VDC | Gold |
 Molex | Copper Alloy | Through Hole Right Angle | 38 | Board Guide Mating Guide | 5 | Push-Pull | Solder | 0.76 Ám | 30 Áin | Black | -40 °C | 105 ░C | Receptacle Female Blade Sockets | 80 A | Liquid Crystal Polymer (LCP) | 125 VDC | Gold |
 Molex | Copper Alloy | Through Hole Right Angle | 38 | Board Guide Mating Guide | 5 | Push-Pull | Solder | 0.76 Ám | 30 Áin | Black | -40 °C | 105 ░C | Receptacle Female Blade Sockets | 80 A | Liquid Crystal Polymer (LCP) | 125 VDC | Gold |
