432200 Series

Catalog

CONN BARRIER STRIP 2CIRC 0.438"

Part	Mounting Type	Terminal Screw Finish	Material Flammability Rating	Material - Insulation	Terminal Screw Material	Operating Temperature	Number of Wire Entries	Number of Circuits	Wire Gauge [Max]	Wire Gauge [Min]	Bottom Termination	Barrier Type	Top Termination	Features	Current Rating (Amps)	Number of Rows	Voltage Rating	Terminal Block Type	Pitch [x]	Pitch [x]	Number of Circuits [custom]
Curtis Industries 432200-02-0	Chassis Panel	Zinc	UL94 V-0	Polypropylene (PP)	Steel	105 C	2	2	22 AWG	12 AWG	Solder Turret Insulated	2 Wall (Dual)	Screws	Flange	20 A	1	600 V	Barrier Block	0.438 in	11.12 mm

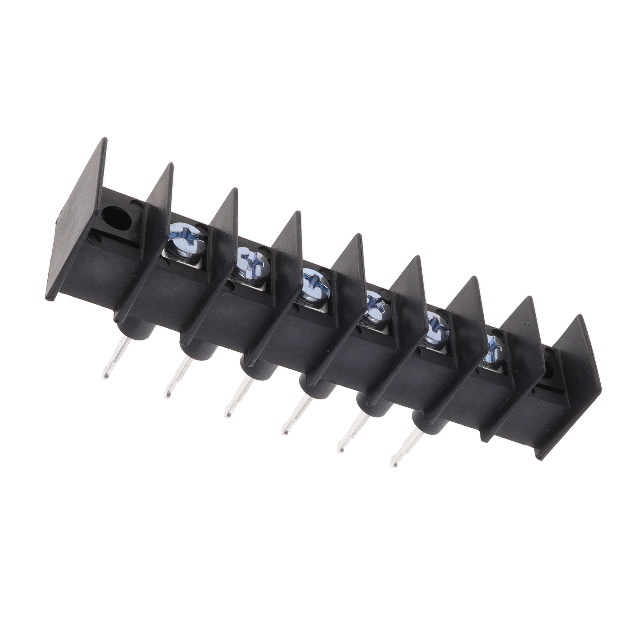

Curtis Industries 432200-06-0	Chassis Panel	Zinc	UL94 V-0	Polypropylene (PP)	Steel	105 C	6	6	22 AWG	12 AWG	Solder Turret Insulated	2 Wall (Dual)	Screws	Flange	20 A	1	600 V	Barrier Block	0.438 in	11.12 mm

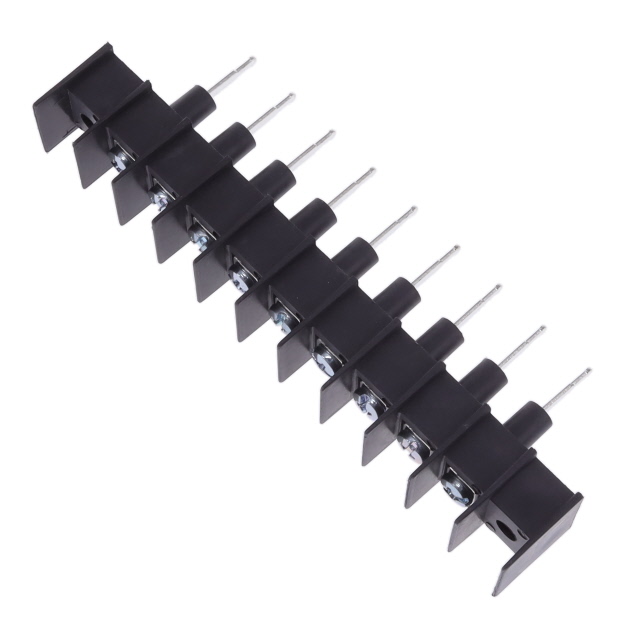

Curtis Industries 432200-09-0	Chassis Panel	Zinc	UL94 V-0	Polypropylene (PP)	Steel	105 C	9		22 AWG	12 AWG	Solder Turret Insulated	2 Wall (Dual)	Screws	Flange	20 A	1	600 V	Barrier Block	0.438 in	11.12 mm	9
Curtis Industries 432200-19-0	Chassis Panel	Zinc	UL94 V-0	Polypropylene (PP)	Steel	105 C	19	19	22 AWG	12 AWG	Solder Turret Insulated	2 Wall (Dual)	Screws	Flange	20 A	1	600 V	Barrier Block	0.438 in	11.12 mm
Curtis Industries 432200-21-0	Chassis Panel	Zinc	UL94 V-0	Polypropylene (PP)	Steel	105 C	21	21	22 AWG	12 AWG	Solder Turret Insulated	2 Wall (Dual)	Screws	Flange	20 A	1	600 V	Barrier Block	0.438 in	11.12 mm
