SMA30 Series

Catalog

PHOTOELECTRIC SENSOR, SM30 SERIES, EMITTER, OPPOSED, 150 M, STEEL, 10 VDC TO 30 VDC

Part	Ingress Protection	Connection Method	Cable Length	Cable Length	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensing Method	Sensing Distance	Sensing Distance	Light Source
BANNER ENGINEERING SMA30PEL	IP67 NEMA 6P	Cable	78.74 "	2 m	70 °C	-40 C	10 VDC 12 VAC	30 VDC 240 VAC	Through-Beam	150 m	492.13 '	Infrared LED
BANNER ENGINEERING SMA30PELC	IEC IP67 NEMA 6P	Cable	78.74 "	2 m	70 °C	-40 C	10 VDC 12 VAC	30 VDC 240 VAC	Through-Beam	150 m	492.13 '	Infrared
BANNER ENGINEERING SMA30SELB W/30	IEC IP67 NEMA 6P	Cable with Connector	78.74 "	2 m	70 °C	-40 C	10 VDC 12 VAC	30 VDC 240 VAC	Through-Beam	150 m	492.13 '	Infrared
BANNER ENGINEERING SMA30PELQD	IP67 NEMA 6P	Connector			70 °C	-40 C	10 VDC 12 VAC	30 VDC 240 VAC	Through-Beam	150 m	492.13 '	Infrared LED

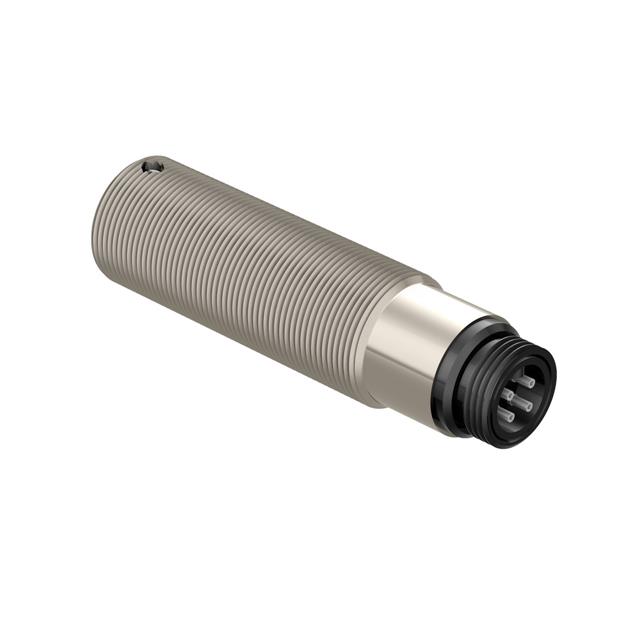

BANNER ENGINEERING SMA30SELQD	IP67 NEMA 6P	Connector			70 °C	-40 C	10 VDC 12 VAC	30 VDC 240 VAC	Through-Beam	150 m	492.13 '	Infrared LED
