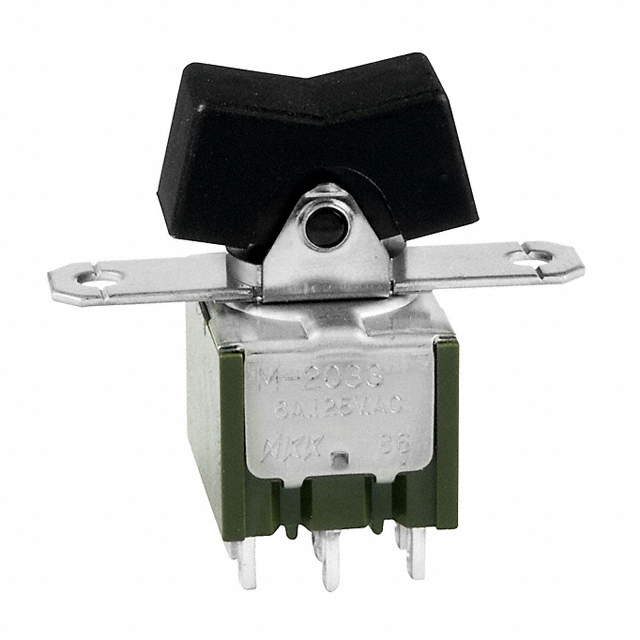

M2033TN Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER 3PDT 6A 125V
| Part | Electrical Life | Mechanical Life | Actuator Marking | Current Rating (Amps) | Features | Voltage Rating - AC | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Termination Style | Approval Agency | Circuit | Actuator Type | Mounting Type | Color - Actuator/Cap | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | 50000 Cycles | Varies by Cap | 3 A 6 A | Epoxy Sealed Terminals | 125 V | On-Off-On | 85 °C | -30 ░C | 30 V | Solder Lug | CSA UL | 3PDT | Actuator Arm Cap Required | Flange Panel Mount | |||
 NKK Switches | 25000 Steps | 50000 Cycles | No Marking | 3 A 6 A | Epoxy Sealed Terminals | 125 V | On-Off-On | 85 °C | -30 ░C | 30 V | Solder Lug | CSA UL | 3PDT | Concave | Flange Panel Mount | Black | 10.1 mm | 17.8 mm |
NKK Switches | 25000 Steps | 50000 Cycles | No Marking | 3 A 6 A | Epoxy Sealed Terminals | 125 V | On-Off-On | 85 °C | -30 ░C | 30 V | Solder Lug | CSA UL | 3PDT | Concave | Flange Panel Mount | Red | 10.1 mm | 17.8 mm |
