322238 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

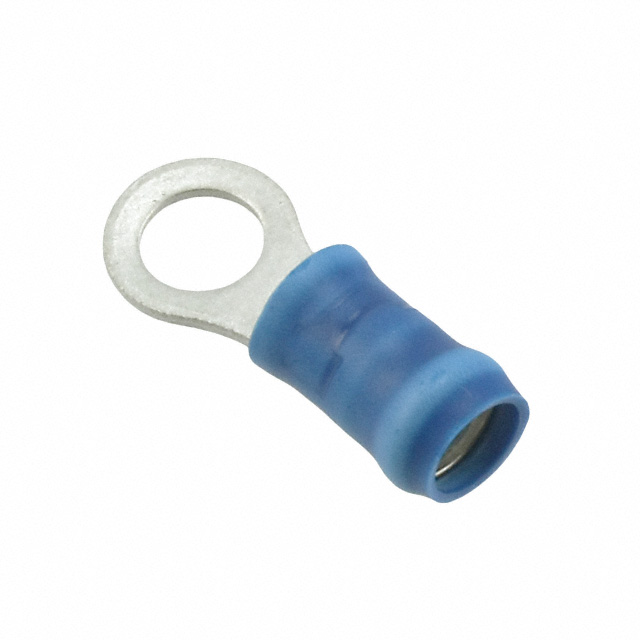

CONN RING CIRC 14-16AWG #10
| Part | Features | Contact Finish | Thickness | Thickness | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Termination | Insulation | Length - Overall [x] | Length - Overall [x] | Width - Outer Edges [y] | Width - Outer Edges [y] | Material - Insulation | Terminal Type | Mounting Type | Color | Stud/Tab Size | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Serrated Termination | Tin | 0.031 in | 0.79 mm | 0.115 in 2.92 mm | 0.17 " 4.32 mm | Crimp | Insulated | 20.65 mm | 0.813 in | 7.92 mm | 0.312 in | Poly-Vinyl Chloride (PVC) | Circular | Free Hanging (In-Line) | Blue | 10 Stud | Copper |
