R14340 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

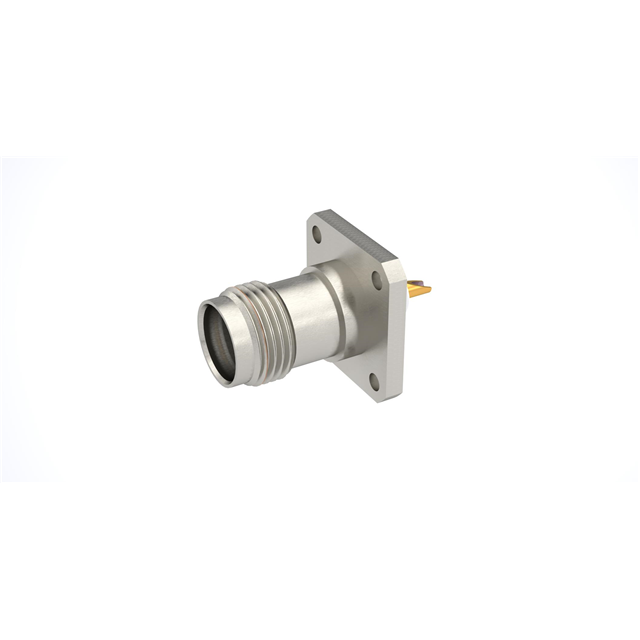

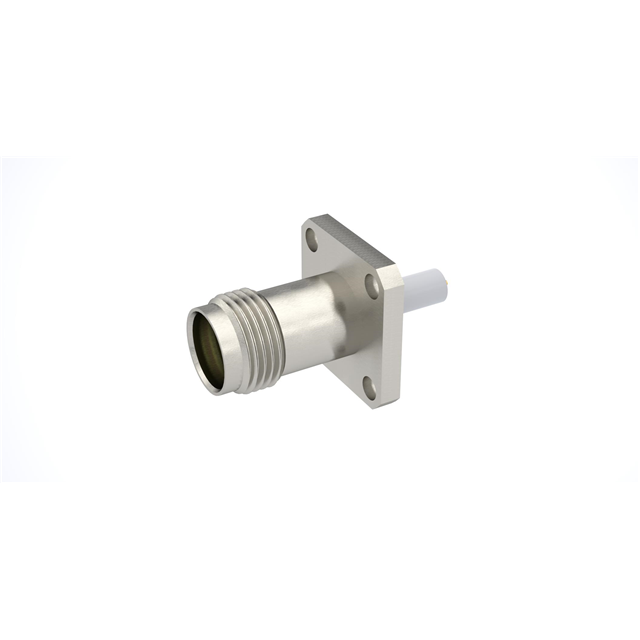

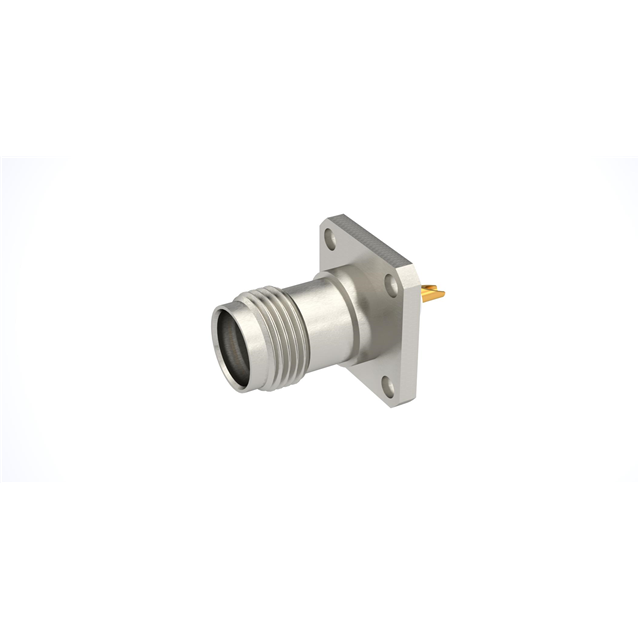

TNC / SQUARE FLANGE JACK RECEPTA
| Part | Body Finish | Insertion Loss | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Voltage Rating | Dielectric Material | Body Material | Mating Cycles | Center Contact Material | Connector Type | Connector Style | Shield Termination | Number of Ports | Features | Impedance | Fastening Type | Mounting Feature | Frequency - Max [Max] | Mounting Type | Housing Color | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Nickel | 0.18 dB | -65 ░C | 165 °C | Gold | 500 V | Polytetrafluoroethylene (PTFE) | Brass | 500 | Beryllium Copper | Female Socket Jack | TNC | Solder | 1 | Extended Insulation | 50 Ohms | Threaded | Flange | 11 GHz | Panel Mount | Silver | Solder Cup |
 Radiall USA, Inc. | Nickel | 0.18 dB | -65 ░C | 165 °C | Gold | 500 V | Polytetrafluoroethylene (PTFE) | Brass | 500 | Beryllium Copper | Female Socket Jack | TNC | Solder | 1 | Extended Insulation | 50 Ohms | Threaded | Flange | 11 GHz | Panel Mount Through Hole | Silver | Solder |
 Radiall USA, Inc. | Nickel | 0.18 dB | -65 ░C | 165 °C | Gold | 500 V | Polytetrafluoroethylene (PTFE) | Brass | 500 | Beryllium Copper | Female Socket Jack | TNC | Solder | 1 | Extended Insulation | 50 Ohms | Threaded | Flange | 11 GHz | Panel Mount | Silver | Solder Cup |
 Radiall USA, Inc. | Nickel | 0.18 dB | -65 ░C | 165 °C | Gold | 500 V | Polytetrafluoroethylene (PTFE) | Brass | 500 | Beryllium Copper | Female Socket Jack | TNC | Solder | 1 | Extended Insulation | 50 Ohms | Threaded | Flange | 11 GHz | Panel Mount Through Hole | Silver | Solder |
Radiall USA, Inc. | Nickel | 0.18 dB | -65 ░C | 165 °C | Gold | 500 V | Polytetrafluoroethylene (PTFE) | Brass | 500 | Beryllium Copper | Female Socket Jack | TNC | Solder | 1 | Extended Insulation | 50 Ohms | Threaded | Flange | 11 GHz | Panel Mount | Silver | Solder Cup |
