G11M07-P Series
Manufacturer: ODU
Beta
⌘K

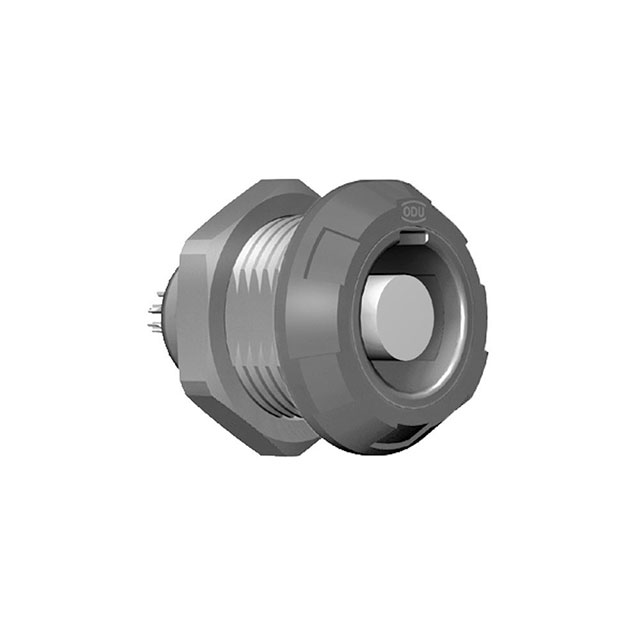

ODU MEDI-SNAP RECEPT, STY 1, SZ
| Part | Shell Size - Insert | Voltage Rating | Number of Positions | Mounting Feature | Shell Material | Contact Finish - Mating | Connector Type | Ingress Protection | Primary Material | Contact Material | Insert Material | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Applications | Mounting Type | Current Rating (Amps) | Fastening Type | Material Flammability Rating | Shielding | Color | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | 10 V | 12 | Bulkhead - Rear Side Nut | Polysulfone (PSU) | Gold | Receptacle Female Sockets | IP50 - Dust Protected | Plastic | Brass | Polyetheretherketone (PEEK) | 120 °C | -50 °C | 0 | Industrial Medical Testing Equipment & Measurement | Panel Mount | 6 A | Detent Lock Push-Pull | UL94 V-0 | Unshielded | Gray | ||
1 | 5 | Bulkhead - Rear Side Nut | Polysulfone (PSU) | Gold | Receptacle Female Sockets | IP50 - Dust Protected | Plastic | Brass | Polyetheretherketone (PEEK) | 120 °C | -50 °C | 0 | Industrial Medical Testing Equipment & Measurement | Panel Mount | 7.5 A | Detent Lock Push-Pull | Unshielded | Gray | ||||
1 | 6 | Bulkhead - Rear Side Nut | Polysulfone (PSU) | Gold | Receptacle Female Sockets | IP50 - Dust Protected | Plastic | Brass | Polyetheretherketone (PEEK) | 120 °C | -50 °C | 0 | Industrial Medical Military Testing Equipment & Measurement | Panel Mount | 4.55 A | Detent Lock Push-Pull | Unshielded | |||||
1 | 5 | Bulkhead - Rear Side Nut | Polysulfone (PSU) | Gold | Receptacle Female Sockets | IP50 - Dust Protected | Plastic | Brass | Polyetheretherketone (PEEK) | 120 °C | -50 °C | 0 | Industrial Medical Military Testing Equipment & Measurement | Panel Mount | 7.5 A | Detent Lock Push-Pull | Unshielded | Gray Green | ||||
1 | 8 | Bulkhead - Rear Side Nut | Polysulfone (PSU) | Gold | Receptacle Female Sockets | IP50 - Dust Protected | Plastic | Brass | Polyetheretherketone (PEEK) | 120 °C | -50 °C | 0 | Industrial Medical Testing Equipment & Measurement | Panel Mount | 3.85 A | Detent Lock Push-Pull | Unshielded | Gray | ||||
1 | 38 V | 2 | Bulkhead - Rear Side Nut | Polysulfone (PSU) | Gold | Receptacle Female Sockets | IP50 - Dust Protected | Plastic | Brass | Polyetheretherketone (PEEK) | 120 °C | -50 °C | 0 | Industrial Medical Testing Equipment & Measurement | Panel Mount | 15 A | Detent Lock Push-Pull | UL94 V-0 | Unshielded | Gray | ||
1 | 36 VDC | 6 | Bulkhead - Rear Side Nut | Polysulfone (PSU) | Gold | Receptacle Female Sockets | IP50 - Dust Protected | Plastic | Brass | Polyetheretherketone (PEEK) | 120 °C | -50 °C | 0 | Industrial Medical Testing Equipment & Measurement | Panel Mount Through Hole | 6 A | Detent Lock Push-Pull | UL94 V-0 | Unshielded | Gray White | Solder | |
1 | 7 | Bulkhead - Rear Side Nut | Polysulfone (PSU) | Gold | Receptacle Female Sockets | IP50 - Dust Protected | Plastic | Brass | Polyetheretherketone (PEEK) | 120 °C | -50 °C | 0 | Industrial Medical Military Testing Equipment & Measurement | Panel Mount | 4.55 A | Detent Lock Push-Pull | Unshielded | Gray Red | ||||
1 | 25 V | 14 | Bulkhead - Rear Side Nut | Polysulfone (PSU) | Gold | Receptacle Female Sockets | IP50 - Dust Protected | Plastic | Brass | Polyetheretherketone (PEEK) | 120 °C | -50 °C | 0 | Industrial Medical Testing Equipment & Measurement | Panel Mount Through Hole | 4 A | Detent Lock Push-Pull | UL94 V-0 | Unshielded | Gray | Solder | |
1 | Bulkhead - Rear Side Nut | Polysulfone (PSU) | Gold | Receptacle Female Sockets | IP50 - Dust Protected | Plastic | Brass | Polyetheretherketone (PEEK) | 120 °C | -50 °C | 0 | Industrial Medical Testing Equipment & Measurement | Panel Mount | 14 A | Detent Lock Push-Pull | Unshielded | Gray |
