CSLA2 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

CURRENT SENSOR

Part	For Measuring	Current - Supply (Max) [Max]	Sensitivity	Package / Case	Sensor Type	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Output	Current - Sensing	Polarization	Operating Temperature [Min]	Operating Temperature [Max]	Number of Channels
Honeywell Sensing and Productivity Solutions CSLA2CEI

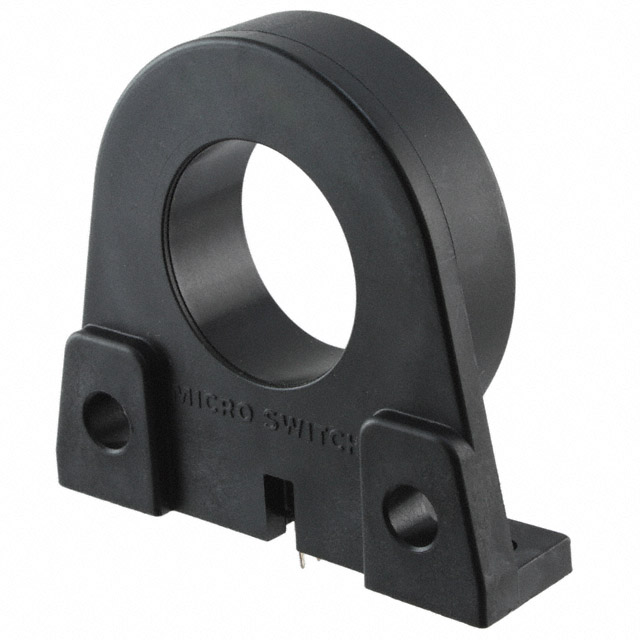

Honeywell Sensing and Productivity Solutions CSLA2EJ	AC/DC	20 mA	7.6 mV/N	Module Single Pass Through	Hall Effect Open Loop	Through Hole	12 V	6 V	Ratiometric Voltage	310 A	Bidirectional	-25 °C	85 °C	1

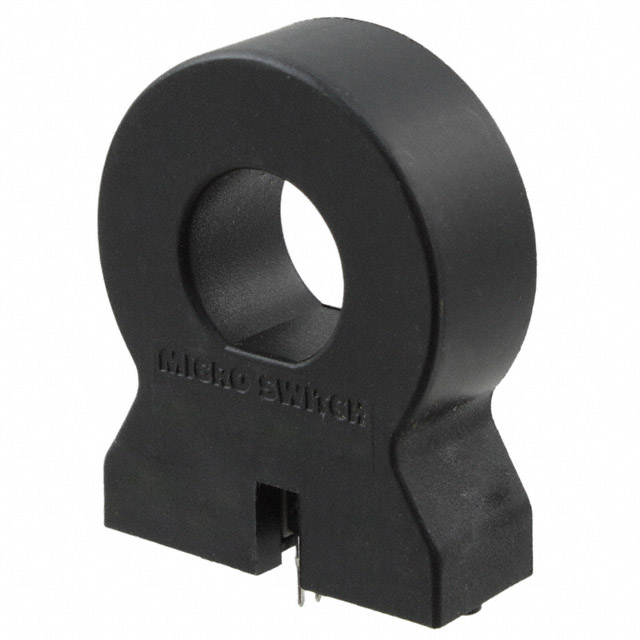

Honeywell Sensing and Productivity Solutions CSLA2DG	AC/DC	20 mA	16.2 mV/N	Module Single Pass Through	Hall Effect Open Loop	Through Hole	12 V	6 V	Ratiometric Voltage	150 A	Bidirectional	-25 °C	85 °C	1

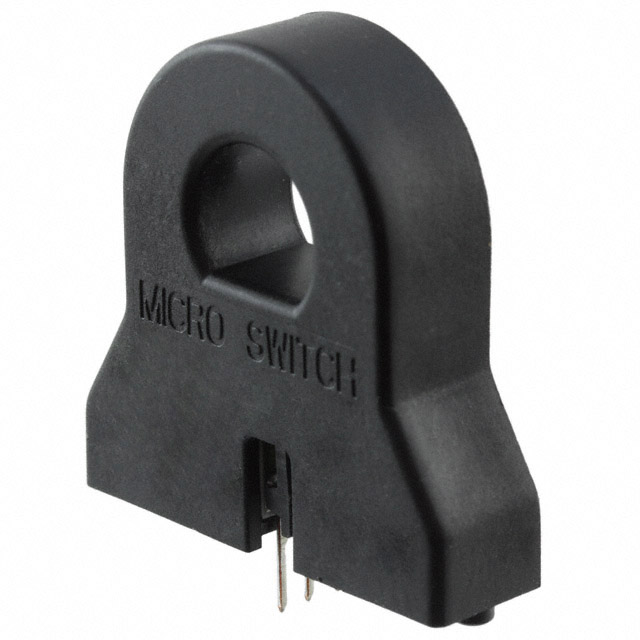

Honeywell Sensing and Productivity Solutions CSLA2CE	AC/DC	20 mA	26.1 mV/N	Module Single Pass Through	Hall Effect Open Loop	Through Hole	12 V	6 V	Ratiometric Voltage	92 A	Bidirectional	-25 °C	85 °C	1

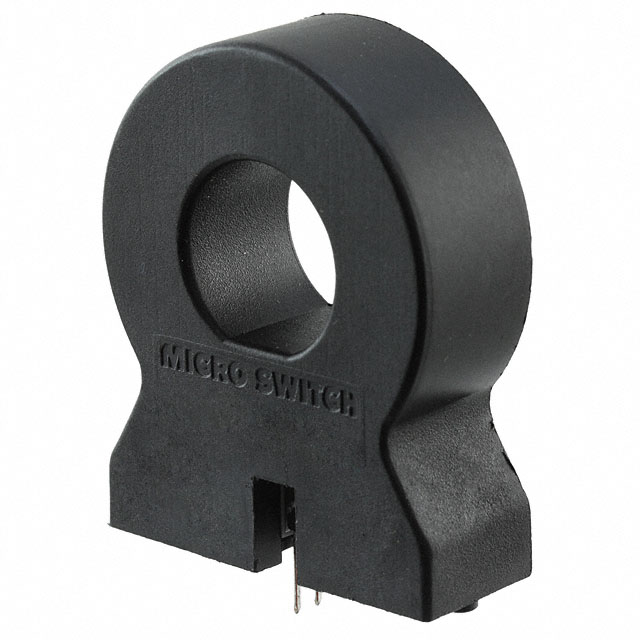

Honeywell Sensing and Productivity Solutions CSLA2DK	AC/DC	20 mA	5.8 mV/N	Module Single Pass Through	Hall Effect Open Loop	Through Hole	12 V	6 V	Ratiometric Voltage	400 A	Bidirectional	-25 °C	85 °C	1
Honeywell Sensing and Productivity Solutions CSLA2DH	AC/DC	20 mA	9.8 mV/N	Module Single Pass Through	Hall Effect Open Loop	Through Hole	12 V	6 V	Ratiometric Voltage	235 A	Bidirectional	-25 °C	85 °C	1
Honeywell Sensing and Productivity Solutions CSLA2GF	AC/DC	20 mA	19.6 mV/N	Module Single Pass Through	Hall Effect Open Loop	Through Hole	12 V	6 V	Ratiometric Voltage	125 A	Bidirectional	-25 °C	85 °C	1
Honeywell Sensing and Productivity Solutions CSLA2GE	AC/DC	20 mA	26.1 mV/N	Module Single Pass Through	Hall Effect Open Loop	Through Hole	12 V	6 V	Ratiometric Voltage	92 A	Bidirectional	-25 °C	85 °C	1

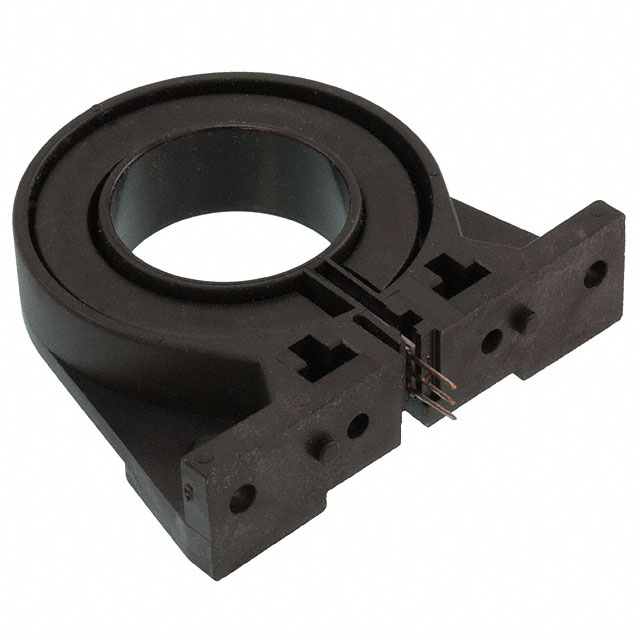

Honeywell Sensing and Productivity Solutions CSLA2EL	AC/DC	20 mA	4.3 mV/N	Module Single Pass Through	Hall Effect Open Loop	Through Hole	12 V	6 V	Ratiometric Voltage	550 A	Bidirectional	-25 °C	85 °C	1
Honeywell Sensing and Productivity Solutions CSLA2DKI	AC/DC	20 mA	5.8 mV/N	Module Single Pass Through	Hall Effect Open Loop	Through Hole	12 V	6 V	Ratiometric Voltage	400 A	Bidirectional	-25 °C	85 °C	1
