SW3823 Series
Manufacturer: NKK Switches
Beta
⌘K

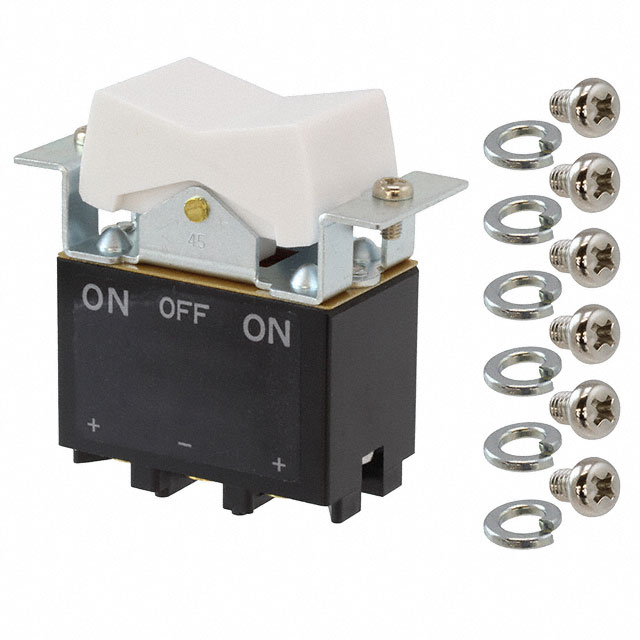

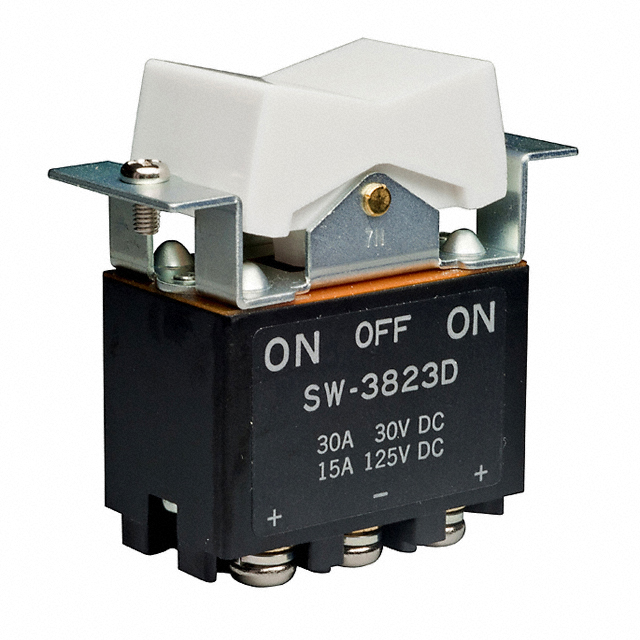

SWITCH ROCKER DPDT 30A 30V
| Part | Electrical Life | Mechanical Life | Actuator Type | Approval Agency | Color - Actuator/Cap | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Circuit | Mounting Type | Actuator Marking | Termination Style | Switch Function | Voltage Rating - AC | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | 50000 Cycles | Concave | CSA UL | White | 70 °C | -10 °C | 30 V | DPDT | Flange Panel Mount | No Marking | Screw Terminal | On-Off-On | ||
 NKK Switches | 25000 Steps | 50000 Cycles | Concave | CSA UL | White | 70 °C | -10 °C | 30 V | DPDT | Flange Panel Mount | No Marking | Screw Terminal | On-Off-On | ||
 NKK Switches | 25000 Steps | 50000 Cycles | Concave | CSA UL | White | 70 °C | -10 °C | 30 V | DPDT | Flange Panel Mount | No Marking | Screw Terminal | On-Off-On | 125 V | 30 A |
