2563070 Series
Manufacturer: NorComp Inc.
Beta
⌘K

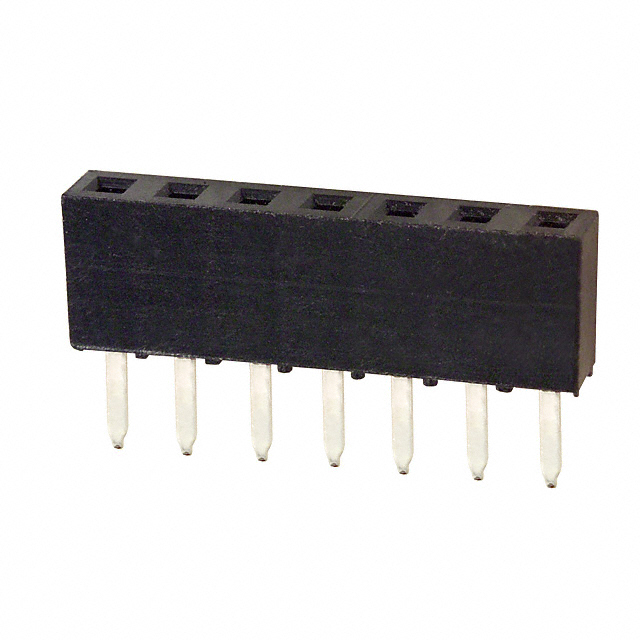

25630701RP2 ROHS COMPLIANT: YES
| Part | Contact Material | Contact Shape | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Length - Post | Contact Length - Post | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Contact Type | Mounting Type | Termination | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Number of Positions | Contact Finish - Mating | Number of Positions Loaded | Contact Finish - Post | Number of Rows | Insulation Color | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Phosphor Bronze | Square | 2.54 µm | 100 µin | Flash | 2.5 mm | 0.098 in | 0.079 " | 2 mm | 4.3 mm | 0.169 " | Female Socket | Through Hole | Solder | Push-Pull | -40 C | 105 ░C | Receptacle | 7 | Gold | All | Tin | 1 | Black | UL94 V-0 |
