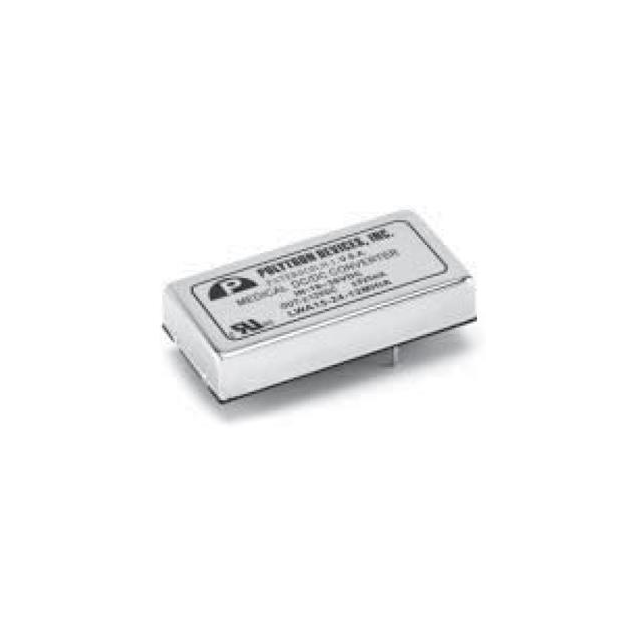

LWA15 Series
Manufacturer: Polytron
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
DC DC CONVERTER +/-15V 15W
| Part | Number of Outputs | Voltage - Input (Max) | Applications | Operating Temperature (Max) | Operating Temperature (Min) | Power (Watts) | Current - Output (Max) | Voltage - Input (Min) | Mounting Type | Package / Case | Voltage - Output 2 | Type | Size / Dimension Width | Size / Dimension Length | Size / Dimension Height | Approval Agency | Voltage - Output 1 | Voltage - Isolation | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Polytron | 2 | 36 V | ITE (Commercial) | 85 °C | -40 °C | 15 W | 500 mA | 18 V | Through Hole | 5-DIP Module | -15 V | Isolated Module | 1 in | 2 in | 0.4 in | CE cURus UL | 15 V | 1500 Vrns | 80 % |
