2307724 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

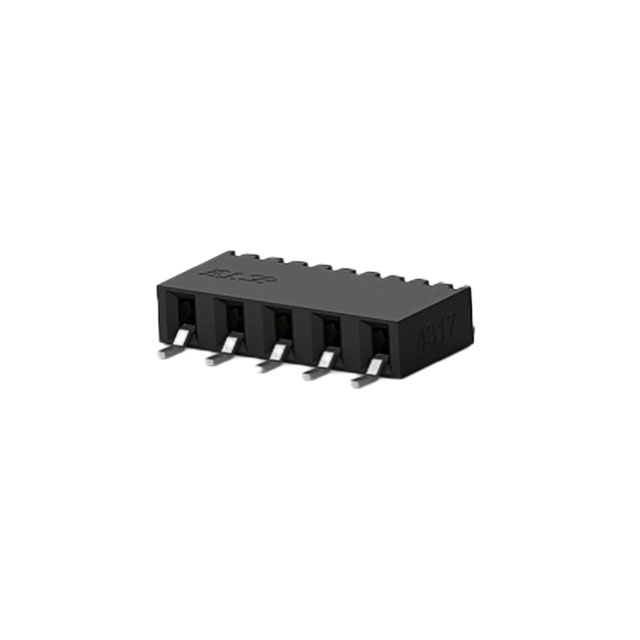

5P,2MM,B-B,REC,SRHZ,SMD,SN,TR
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Pitch - Mating [x] | Pitch - Mating [x] | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Material Flammability Rating | Insulation Color | Number of Positions Loaded | Contact Material | Insulation Height [z] | Insulation Height [z] | Termination | Fastening Type | Contact Shape | Number of Rows | Contact Finish - Post | Voltage Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Insulation Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 3 µm | 118.1 µin | 0.079 in | 2 mm | Female Socket | -40 °C | 105 ░C | 2 A | UL94 V-0 | Black | All | Phosphor Bronze | 0.08 in | 2.03 mm | Solder | Push-Pull | Square | 1 | Tin | 125 VDC | 118.1 µin | 3 µm | Receptacle | Liquid Crystal Polymer (LCP) | Surface Mount Right Angle |
