A766EB Series

Manufacturer: KEMET

Catalog

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 68 ΜF, 16 V, RADIAL CAN - SMD, 0.03 OHM

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Type	Capacitance	Ripple Current @ Low Frequency	Lifetime @ Temp.	Tolerance	Mounting Type	Ripple Current @ High Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Package / Case	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Height - Seated (Max)	Height - Seated (Max) [Max]	Applications	ESR (Equivalent Series Resistance)
KEMET A766EB686M1CLAE030	0.248 "	6.3 mm	Polymer	68 µF	110 mA	5000 Hrs	20 %	Surface Mount	2.2 A	-55 C	105 ░C	16 V	Radial Can - SMD	0.26 in	6.6 mm	6.6 mm	0.26 in	6 mm	0.236 "	General Purpose	30 mOhms
KEMET A766EB686M1ALAE030	0.248 "	6.3 mm	Polymer	68 µF	110 mA	5000 Hrs	20 %	Surface Mount	2.2 A	-55 C	105 ░C	10 V	Radial Can - SMD	0.26 in	6.6 mm	6.6 mm	0.26 in	6 mm	0.236 "	General Purpose	30 mOhms
KEMET A766EB396M1CLAE037	0.248 "	6.3 mm	Polymer	39 µF	102.5 mA	5000 Hrs	20 %	Surface Mount	2.05 A	-55 C	105 ░C	16 V	Radial Can - SMD	0.26 in	6.6 mm	6.6 mm	0.26 in	6 mm	0.236 "	General Purpose	37 mOhms
KEMET A766EB127M1ALAE027	0.248 "	6.3 mm	Polymer	120 µF	116 mA	5000 Hrs	20 %	Surface Mount	2.32 A	-55 C	105 ░C	10 V	Radial Can - SMD	0.26 in	6.6 mm	6.6 mm	0.26 in	6 mm	0.236 "	General Purpose	27 mOhms

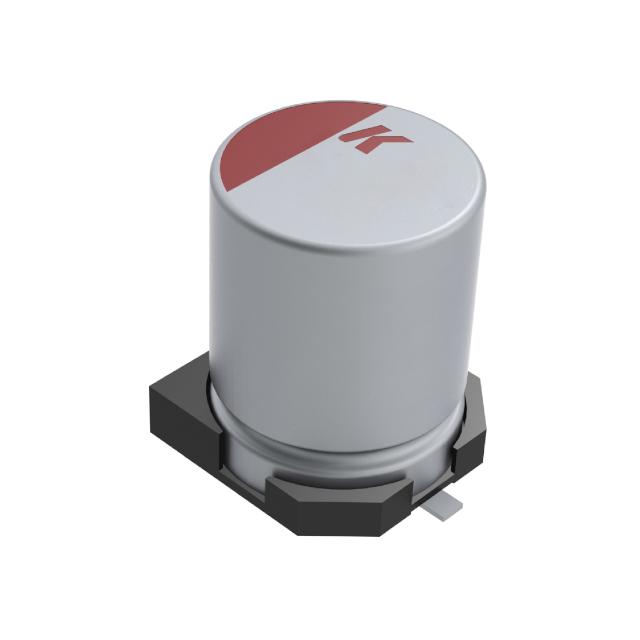

KEMET A766EB127M0JLAE022	0.248 "	6.3 mm	Polymer	120 µF	128.5 mA	5000 Hrs	20 %	Surface Mount	2.57 A	-55 C	105 ░C	6.3 VDC	Radial Can - SMD	0.26 in	6.6 mm	6.6 mm	0.26 in	6 mm	0.236 "	General Purpose	22 mOhms
KEMET A766EB226M1DLAE060	0.248 "	6.3 mm	Polymer	22 µF	72.5 mA	5000 Hrs	20 %	Surface Mount	1.45 A	-55 C	105 ░C	20 V	Radial Can - SMD	0.26 in	6.6 mm	6.6 mm	0.26 in	6 mm	0.236 "	General Purpose	60 mOhms
KEMET A766EB227M0JLAE022	0.248 "	6.3 mm	Polymer	220 µF	128.5 mA	5000 Hrs	20 %	Surface Mount	2.57 A	-55 C	105 ░C	6.3 VDC	Radial Can - SMD	0.26 in	6.6 mm	6.6 mm	0.26 in	6 mm	0.236 "	General Purpose	22 mOhms
