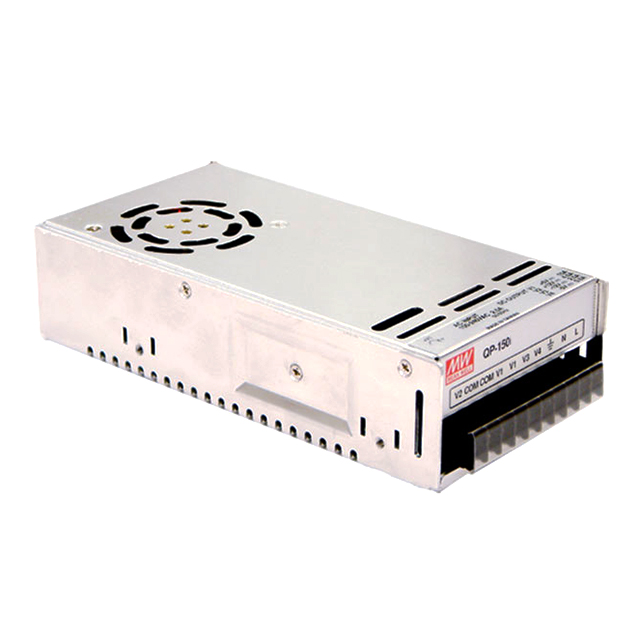

QP-150 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CNVRTR 5V 3.3V +/-12V 150W
| Part | Minimum Load Required | Voltage - Output 3 | Mounting Type | Current - Output 4 | Number of Outputs | Current - Output 1 | Voltage - Output 1 | Efficiency | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Output 4 | Voltage - Isolation | Type | Voltage - Input [Max] | Voltage - Input [Min] | Current - Output 2 | Current - Output 3 | Features | Voltage - Output 2 | Power (Watts) | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 12 V | Chassis Mount | 600 mA | 4 | 10 A | 5 V | 75 % | -10 °C | 60 °C | ITE (Commercial) | 99 mm | 1.97 " | 3.9 " | 7.83 in | 50 mm | 199 mm | -12 V | 3000 V | Enclosed | 264 VAC 370 VDC | 90 VAC 127 VDC | 10 A | 5 A | Adjustable Output PFC Universal Input | 3.3 V | 150 W | CB CE cURus TUV | |
MEAN WELL USA Inc. | 24 V | Chassis Mount | 600 mA | 4 | 10 A | 5 V | 78 % | -10 °C | 60 °C | ITE (Commercial) | 99 mm | 1.97 " | 3.9 " | 7.83 in | 50 mm | 199 mm | -12 V | 3000 V | Enclosed | 264 VAC 370 VDC | 90 VAC 127 VDC | 4 A | 2 A | Adjustable Output PFC Universal Input | 12 V | 153 W | CB CE cURus TUV |
