24_QN-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

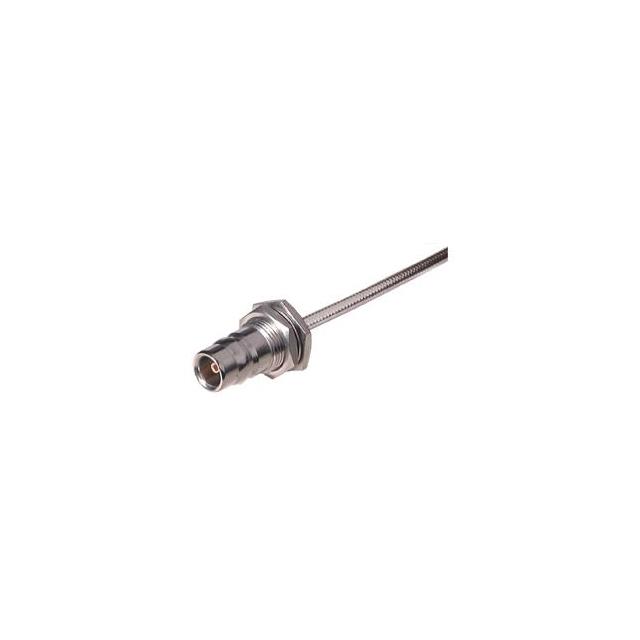

24_QN-50-3-4/133_NE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Voltage Rating | Dielectric Material | Body Material | Center Contact Plating | Contact Termination | Number of Ports | Frequency - Max [Max] | Mounting Type | Fastening Type | Connector Type | Housing Color | Cable Group | Shield Termination | Mounting Feature | Impedance | Connector Style | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | 125 °C | -40 C | White Bronze | 1000 VDC | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | Gold | Crimp | 1 | 11 GHz | Panel Mount | Snap-On | Female Socket Jack | Silver | RG-400 | Crimp | Bulkhead - Front Side Nut | 50 Ohms | QN | Bronze |
 Huber+Suhner, Inc. | 125 °C | -40 C | White Bronze | 1000 VDC | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | Gold | Crimp | 1 | 11 GHz | Panel Mount | Snap-On | Female Socket Jack | Silver | RG-393 | Crimp | Bulkhead - Front Side Nut | 50 Ohms | QN | Bronze |
Huber+Suhner, Inc. | 125 °C | -40 C | White Bronze | 1000 VDC | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | Gold | Crimp | 1 | 11 GHz | Panel Mount | Snap-On | Female Socket Jack | Silver | 223 RG-142 | Crimp | Bulkhead - Front Side Nut | 50 Ohms | QN | Bronze |
 Huber+Suhner, Inc. | 125 °C | -40 C | White Bronze | 1000 VDC | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | Gold | Crimp | 1 | 11 GHz | Panel Mount | Snap-On | Female Socket Jack | Silver | LMR-240 | Crimp | Bulkhead - Front Side Nut | 50 Ohms | QN | Bronze |
 Huber+Suhner, Inc. | 125 °C | -40 C | White Bronze | 1000 VDC | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | Gold | Crimp | 1 | 11 GHz | Panel Mount | Snap-On | Female Socket Jack | Silver | RG-58 | Crimp | Bulkhead - Front Side Nut | 50 Ohms | QN | Bronze |
Huber+Suhner, Inc. | 125 °C | -40 C | White Bronze | 1000 VDC | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | Gold | Crimp | 1 | 11 GHz | Panel Mount | Snap-On | Female Socket Jack | Silver | RG-214 | Crimp | Bulkhead - Front Side Nut | 50 Ohms | QN | Bronze |
Huber+Suhner, Inc. | ||||||||||||||||||||
 Huber+Suhner, Inc. | 125 °C | -40 C | White Bronze | 1000 VDC | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | Gold | Crimp | 1 | 11 GHz | Panel Mount | Snap-On | Female Socket Jack | Silver | RG-141 | Solder | Bulkhead - Front Side Nut | 50 Ohms | QN | Bronze |
