500-0017 Series
Manufacturer: Cinch Connectivity Solutions
Beta
⌘K

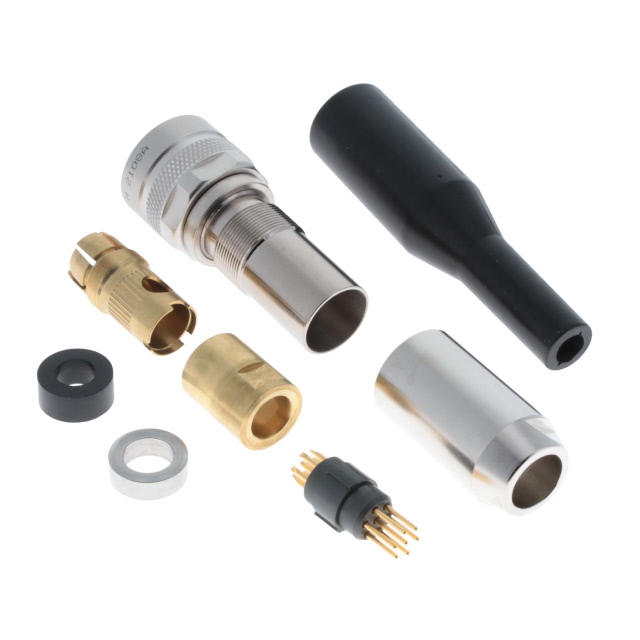

CIRCULAR CONNECTOR, DMS-TP SERIES, MIL-DTL-45204 SERIES, STRAIGHT PLUG, 7 CONTACTS, SOLDER PIN
| Part | Insert Material | Connector Type | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Shell Material | Primary Material | Number of Positions | Shielding | Contact Finish - Mating | Contact Material | Fastening Type | Color | Ingress Protection | Cable Opening | Cable Opening | Features | Orientation | Mounting Type | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions | Molybdenum Disulfide (MoS2) Nylon 6/6 Polyamide (PA66) | Plug Male Pins | Industrial | 85 °C | -20 ░C | 7.5 A | Brass | Metal | 7 | Unshielded | Nickel | Copper Alloy | Push-Pull | Silver | Environment Sealed | 0.343 in | 8.7 mm | Backshell Coupling Nut | Keyed | Free Hanging (In-Line) | 10-7 |
