SHHD001 Series

Catalog

DC DC CONVERTER 12V 15W

Part	Applications	Voltage - Input (Min) [Min]	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Control Features	Mounting Type	Current - Output (Max) [Max]	Type	Number of Outputs	Voltage - Input (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Features	Power (Watts)	Efficiency	Voltage - Output 1

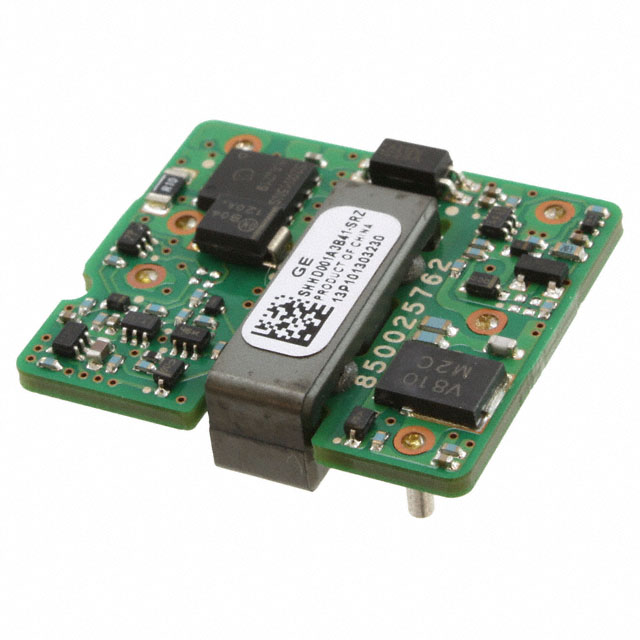

OmniOn Power™ SHHD001A3B41-SRZ	ITE (Commercial)	18 V	2250 VDC	0.96 in	24.4 mm	0.34 in	1.1 in	27.9 mm	8.5 mm	Active Low Enable	Surface Mount	1.3 A	Isolated Module	1	75 V	6-SMD Module	85 °C	-40 C	OCP OTP OVP Remote On/Off UVLO	15 W	87.5 %	12 V
OmniOn Power™ SHHD001A3B41-SRZ	ITE (Commercial)	18 V	2250 VDC	0.96 in	24.4 mm	0.34 in	1.1 in	27.9 mm	8.5 mm	Active Low Enable	Surface Mount	1.3 A	Isolated Module	1	75 V	6-SMD Module	85 °C	-40 C	OCP OTP OVP Remote On/Off UVLO	15 W	87.5 %	12 V
