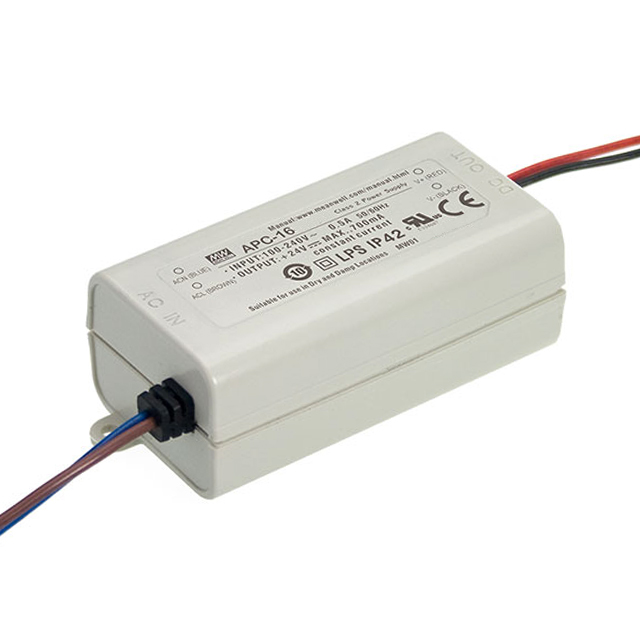

APC-16 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
LED DRIVER CC AC/DC 9-24V 700MA
| Part | Mounting Type | Number of Outputs | Voltage - Output [Min] | Voltage - Output [Max] | Topology | Ratings | Voltage - Input (Min) [Min] | Features | Voltage - Input (Max) [Max] | Voltage - Isolation | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Current - Output (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Termination Style | Type | Approval Agency | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Chassis Mount | 1 | 9 V | 24 V | AC DC Converter | IP42 | 180 VAC | OVP SCP | 264 VAC | 3750 VDC | 77 mm | 3.03 in | 1.14 in | 29 mm | 40 mm | 1.57 " | 700 mA | -30 ░C | 70 °C | 17 W | Wire Leads | Constant Current | CE ENEC | |
 MEAN WELL USA Inc. | Chassis Mount | 1 | 12 V | 48 V | AC DC Converter | IP42 | 90 VAC | OVP SCP | 264 VAC | 3750 VDC | 77 mm | 3.03 in | 1.14 in | 29 mm | 40 mm | 1.57 " | 350 mA | -30 ░C | 70 °C | 17 W | Wire Leads | Constant Current | CCC CE cURus | 84 % |
