1.25mm Pitch, Micro-Lock Plus PCB Header, Single Row, Vertical, Through Hole, Tin-Bismuth Plating, Positive Lock, 13 Circuits, Low-Halogen, Black
1.25mm Pitch, Micro-Lock Plus PCB Header, Single Row, Vertical, Through Hole, Tin-Bismuth Plating, Positive Lock, 13 Circuits, Low-Halogen, Black
1.25mm Pitch, Micro-Lock Plus PCB Header, Single Row, Vertical, Through Hole, Tin-Bismuth Plating, Positive Lock, 13 Circuits, Low-Halogen, Black
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Features | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Number of Rows | Insulation Material | Insulation Color | Contact Type | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Voltage Rating | Number of Positions | Contact Shape | Termination | Contact Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions Loaded | Current Rating (Amps) | Fastening Type | Style | Shrouding | Connector Type | Material Flammability Rating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

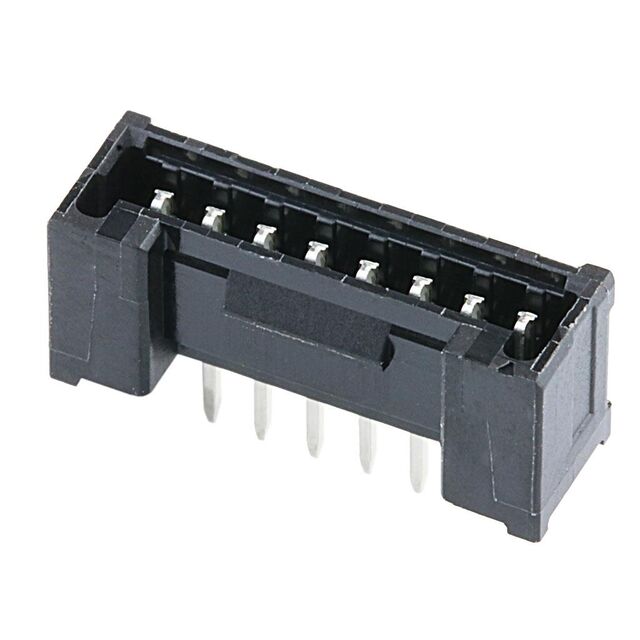

 Molex | Through Hole | -40 °C | 105 ░C | Board Guide | 1 µm | 39.4 µin | 1.25 mm | 0.049 in | 4.9 mm | 0.193 in | 1 | Glass Filled Nylon Polyamide (PA) | Black | Male Pin | 0.091 in | 2.3 mm | Tin | 50 VAC | 8 | Rectangular | Solder | Brass | 1 çm | 39.4 çin | All | Varies by Wire Gauge | Locking Ramp | Board to Cable/Wire | Shrouded - 4 Wall | Header | UL94 V-0 | |

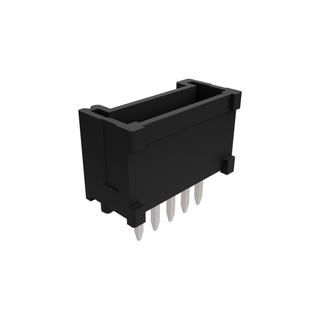

 Molex | Through Hole | -40 °C | 105 ░C | Board Guide | 1 µm | 39.4 µin | 1.25 mm | 0.049 in | 4.9 mm | 0.193 in | 1 | Glass Filled Nylon Polyamide (PA) | Black | Male Pin | 0.091 in | 2.3 mm | Tin | 50 VAC | Rectangular | Solder | Brass | 1 çm | 39.4 çin | All | Varies by Wire Gauge | Locking Ramp | Board to Cable/Wire | Shrouded - 4 Wall | Header | UL94 V-0 | ||

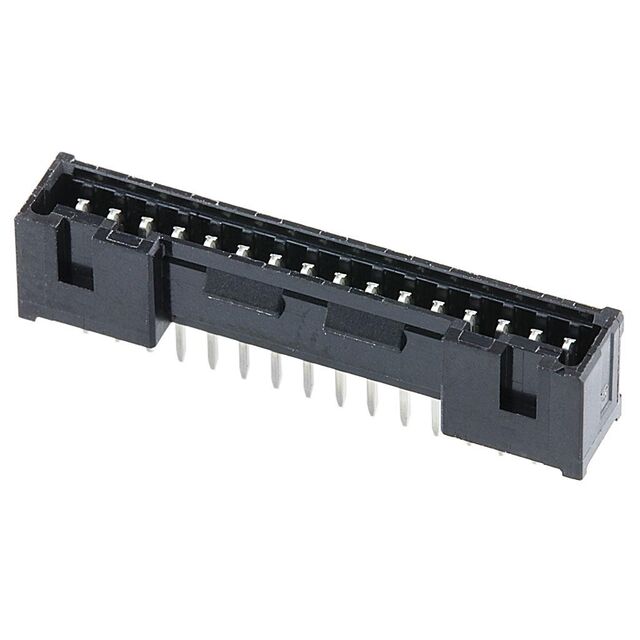

 Molex | Through Hole | -40 °C | 105 ░C | Board Guide | 1 µm | 39.4 µin | 1.25 mm | 0.049 in | 4.9 mm | 0.193 in | 1 | Glass Filled Nylon Polyamide (PA) | Black | Male Pin | 0.091 in | 2.3 mm | Tin | 50 VAC | Rectangular | Solder | Brass | 1 çm | 39.4 çin | All | Varies by Wire Gauge | Locking Ramp | Board to Cable/Wire | Shrouded - 4 Wall | Header | UL94 V-0 | 16 |
