NRPN034 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

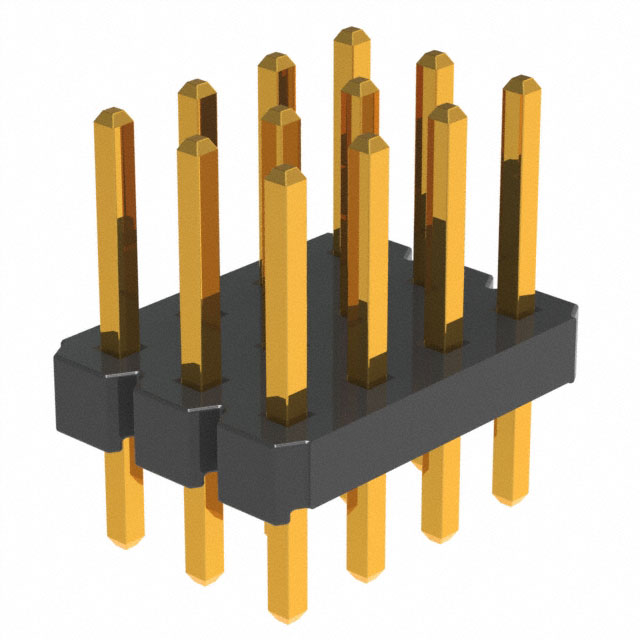

CONN HEADER VERT 12POS 2MM
| Part | Contact Finish Thickness - Post | Contact Finish - Mating | Termination | Fastening Type | Pitch - Mating | Pitch - Mating | Insulation Color | Row Spacing - Mating | Row Spacing - Mating | Contact Length - Post | Contact Length - Post | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Length - Mating | Contact Length - Mating | Insulation Height | Insulation Height | Contact Material | Number of Positions Loaded | Connector Type | Mounting Type | Overall Contact Length | Overall Contact Length | Contact Finish - Post | Material Flammability Rating | Contact Shape | Current Rating (Amps) | Insulation Material | Shrouding | Contact Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Flash | Gold | Solder | Push-Pull | 0.079 " | 2 mm | Black | 2 mm | 0.079 in | 2.4 mm | 0.094 in | -40 C | 105 ░C | Flash | 0.173 in | 4.4 mm | 0.059 in | 1.5 mm | Brass | All | Header | Through Hole | 8.3 mm | 0.327 in | Gold | UL94 V-0 | Square | 2 A | Nylon 6T Polyamide (PA6T) | Unshrouded | Male Pin | 12 |
