MASW-009482 Series

Catalog

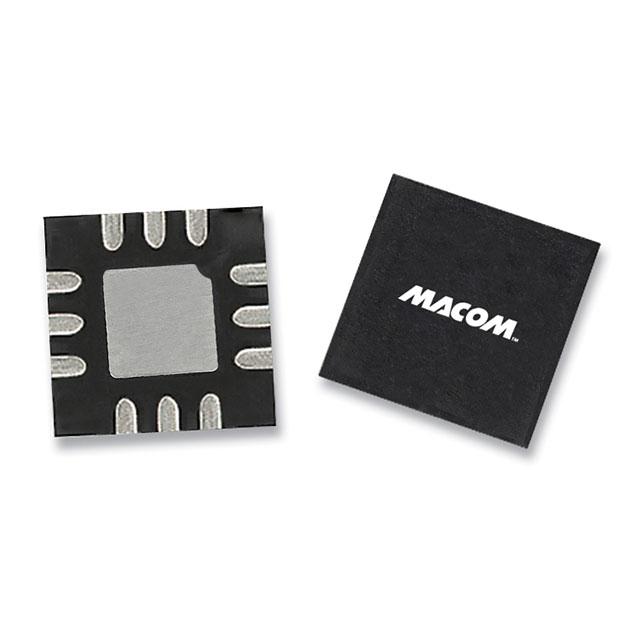

IC RF SWITCH SP3T 4GHZ 12STQFN

Part	Package / Case	Isolation	Insertion Loss	Operating Temperature [Max]	Operating Temperature [Min]	P1dB	Test Frequency	IIP3	Impedance	Frequency Range [Max]	Frequency Range [Min]	RF Type	Circuit	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type
MACOM Technology Solutions MASW-009482-TR3000	12-UFQFN Exposed Pad	20 dB	0.75 dB	85 °C	-40 C	36 dBm	2.5 GHz	64 dBm	50 Ohms	4 GHz	0 Hz	General Purpose	SP3T	12-STQFN (2x2)	2.7 V	0 V	Surface Mount
