R12545 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

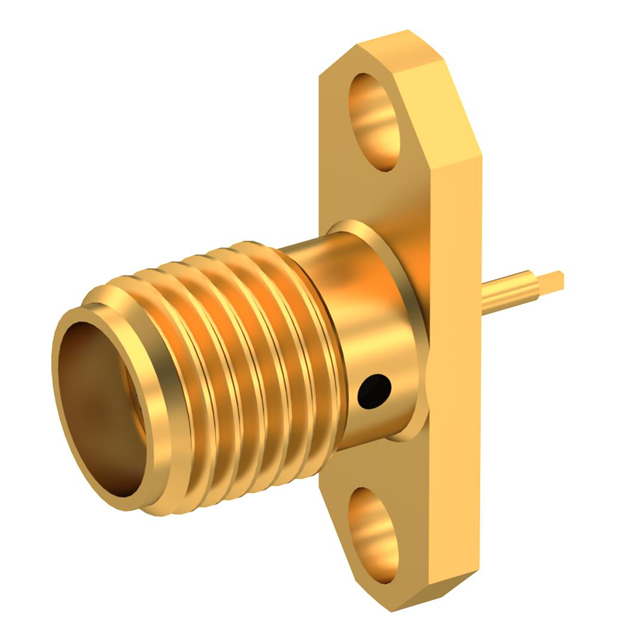

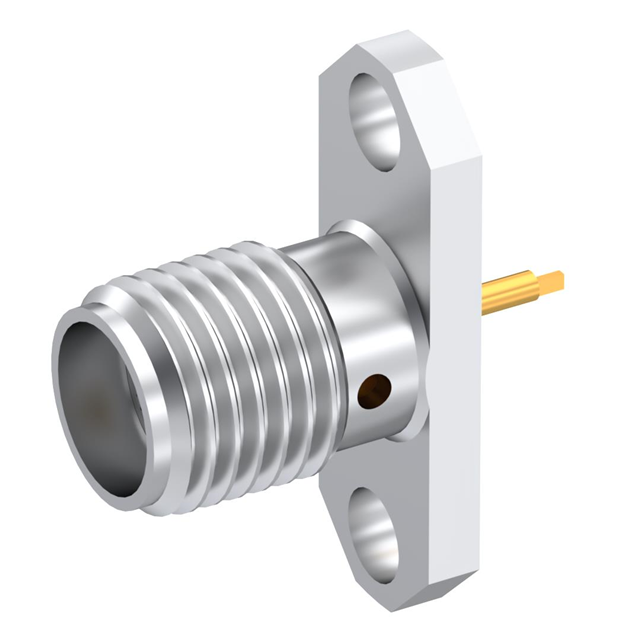

SMA / 2 HOLE FLANGE JACK RECEPTA
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Material | Dielectric Material | Voltage Rating | Mating Cycles | Frequency - Max [Max] | Mounting Type | Housing Color | Impedance | Connector Style | Center Contact Material | Connector Type | Mounting Feature | Fastening Type | Number of Ports | Shield Termination | Contact Termination | Body Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | 500 V | 500 | 18 GHz | Panel Mount | Silver | 50 Ohms | SMA | Beryllium Copper | Female Socket Jack | Flange | Threaded | 1 | Solder | Solder Cup | |
Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | 500 V | 500 | 18 GHz | Panel Mount Through Hole | Gold | 50 Ohms | SMA | Beryllium Copper | Female Socket Jack | Flange | Threaded | 1 | Solder | Solder Tab | Gold |
 Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | 500 V | 500 | 18 GHz | Panel Mount | Gold | 50 Ohms | SMA | Beryllium Copper | Female Socket Jack | Flange | Threaded | 1 | Solder | Solder Cup | Gold |
 Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | 500 V | 500 | 18 GHz | Panel Mount | Gold | 50 Ohms | SMA | Beryllium Copper | Female Socket Jack | Flange | Threaded | 1 | Solder | Solder Cup | Gold |
 Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | 500 V | 500 | 18 GHz | Panel Mount Through Hole | Gold | 50 Ohms | SMA | Beryllium Copper | Female Socket Jack | Flange | Threaded | 1 | Solder | Solder Tab | Gold |
 Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | 500 V | 500 | 18 GHz | Panel Mount | Silver | 50 Ohms | SMA | Beryllium Copper | Female Socket Jack | Flange | Threaded | 1 | Solder | Solder Cup | |
Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | 500 V | 500 | 18 GHz | Panel Mount | Gold | 50 Ohms | SMA | Beryllium Copper | Female Socket Jack | Flange | Threaded | 1 | Solder | Solder Cup | Gold |
