HRS-1B Series

Manufacturer: Adam Tech

Catalog

RECEPTACLE STRIP, 1.27MM, VERTIC

Part	Contact Finish Thickness - Post	Contact Shape	Applications	Contact Material	Insulation Material	Mounting Type	Number of Positions Loaded	Connector Type	Insulation Color	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Termination	Fastening Type	Contact Type	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Material Flammability Rating	Contact Finish Thickness - Mating	Voltage Rating
Adam Tech HRS-1B-06-GA	Flash	Rectangular	General Purpose	Phosphor Bronze	Thermoplastic	Through Hole	All	Receptacle	Black	Gold	1.27 mm	0.05 in	Solder	Push-Pull	Forked	Gold	0.118 in	3 mm	0.181 in	4.6 mm	1	-40 C	105 ░C	6	UL94 V-0	Flash	250 VAC

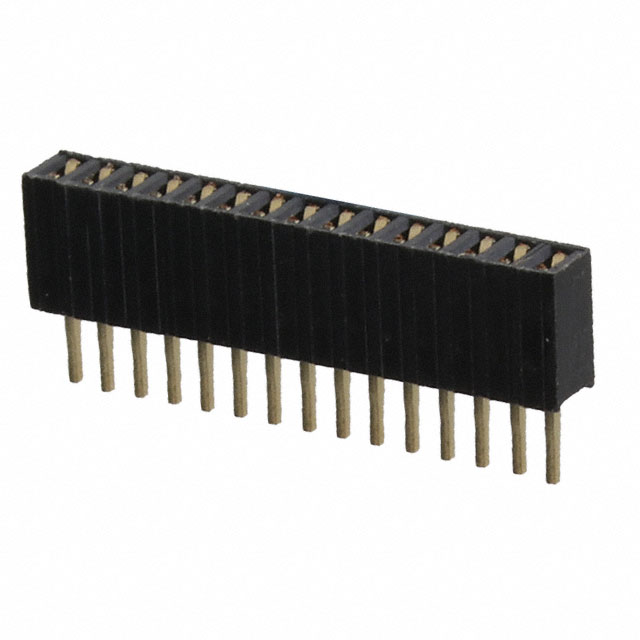

Adam Tech HRS-1B-15-GA	Flash	Rectangular	General Purpose	Phosphor Bronze	Thermoplastic	Through Hole	All	Receptacle	Black	Gold	1.27 mm	0.05 in	Solder	Push-Pull	Forked	Gold	0.118 in	3 mm	0.181 in	4.6 mm	1	-40 C	105 ░C	15	UL94 V-0	Flash	250 VAC
Adam Tech HRS-1B-14-GA	Flash	Rectangular	General Purpose	Phosphor Bronze	Thermoplastic	Through Hole	All	Receptacle	Black	Gold	1.27 mm	0.05 in	Solder	Push-Pull	Forked	Gold	0.118 in	3 mm	0.181 in	4.6 mm	1	-40 C	105 ░C	14	UL94 V-0	Flash	250 VAC

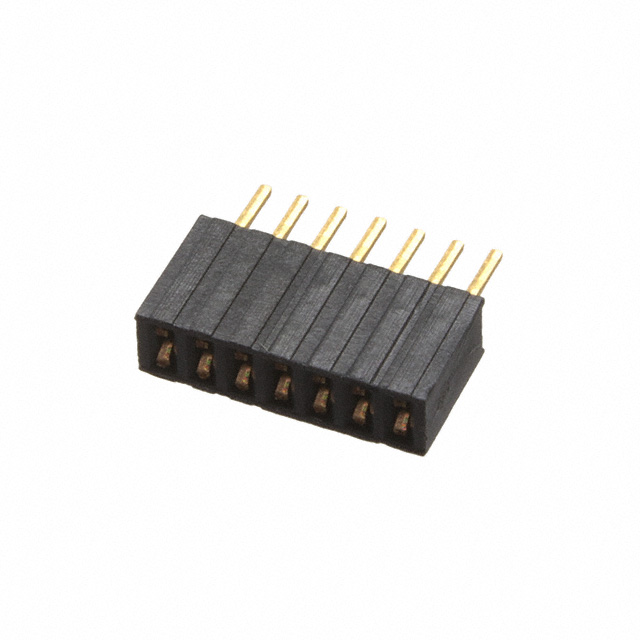

Adam Tech HRS-1B-07-GA	Flash	Rectangular	General Purpose	Phosphor Bronze	Thermoplastic	Through Hole	All	Receptacle	Black	Gold	1.27 mm	0.05 in	Solder	Push-Pull	Forked	Gold	0.118 in	3 mm	0.181 in	4.6 mm	1	-40 C	105 ░C	7	UL94 V-0	Flash	250 VAC
Adam Tech HRS-1B-03-GA	Flash	Rectangular	General Purpose	Phosphor Bronze	Thermoplastic	Through Hole	All	Receptacle	Black	Gold	1.27 mm	0.05 in	Solder	Push-Pull	Forked	Gold	0.118 in	3 mm	0.181 in	4.6 mm	1	-40 C	105 ░C		UL94 V-0	Flash	250 VAC
Adam Tech HRS-1B-05-GA	Flash	Rectangular	General Purpose	Phosphor Bronze	Thermoplastic	Through Hole	All	Receptacle	Black	Gold	1.27 mm	0.05 in	Solder	Push-Pull	Forked	Gold	0.118 in	3 mm	0.181 in	4.6 mm	1	-40 C	105 ░C	5	UL94 V-0	Flash	250 VAC

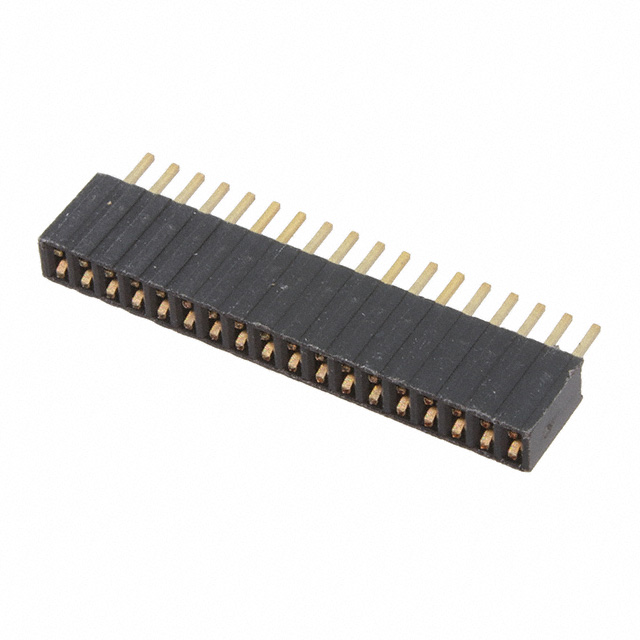

Adam Tech HRS-1B-18-GA	Flash	Rectangular	General Purpose	Phosphor Bronze	Thermoplastic	Through Hole	All	Receptacle	Black	Gold	1.27 mm	0.05 in	Solder	Push-Pull	Forked	Gold	0.118 in	3 mm	0.181 in	4.6 mm	1	-40 C	105 ░C	18	UL94 V-0	Flash	250 VAC

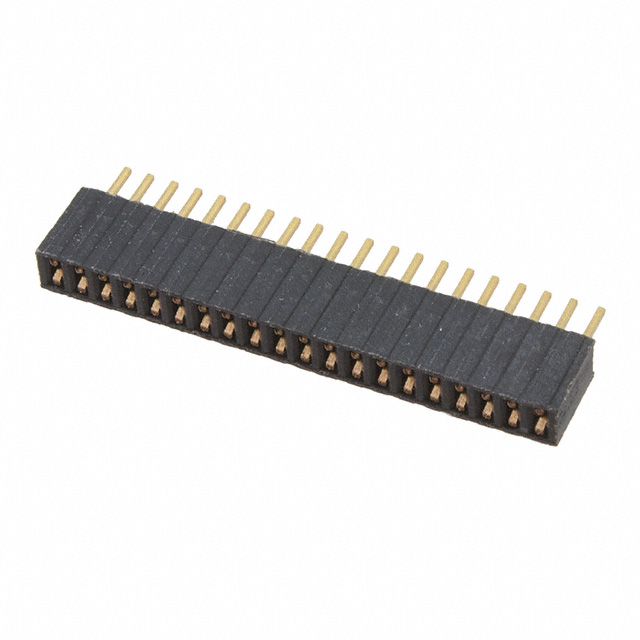

Adam Tech HRS-1B-20-GA	Flash	Rectangular	General Purpose	Phosphor Bronze	Thermoplastic	Through Hole	All	Receptacle	Black	Gold	1.27 mm	0.05 in	Solder	Push-Pull	Forked	Gold	0.118 in	3 mm	0.181 in	4.6 mm	1	-40 C	105 ░C	20	UL94 V-0	Flash	250 VAC

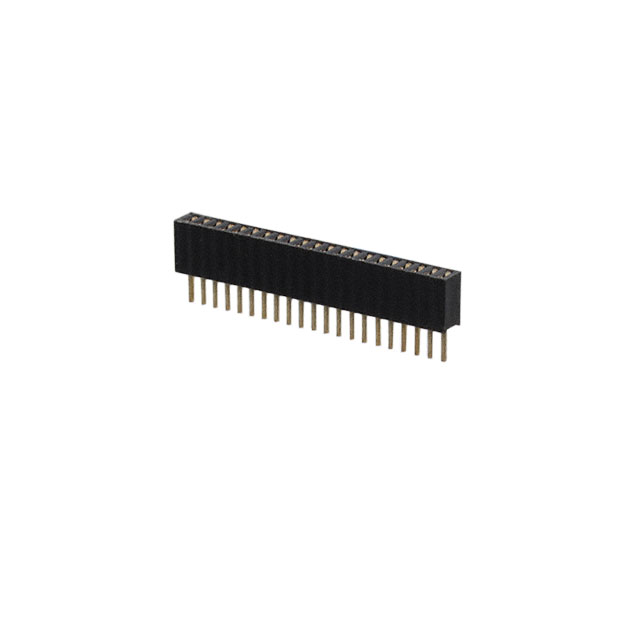

Adam Tech HRS-1B-21-GA	Flash	Rectangular	General Purpose	Phosphor Bronze	Thermoplastic	Through Hole	All	Receptacle	Black	Gold	1.27 mm	0.05 in	Solder	Push-Pull	Forked	Gold	0.118 in	3 mm	0.181 in	4.6 mm	1	-40 C	105 ░C	21	UL94 V-0	Flash	250 VAC
Adam Tech HRS-1B-12-GA	Flash	Rectangular	General Purpose	Phosphor Bronze	Thermoplastic	Through Hole	All	Receptacle	Black	Gold	1.27 mm	0.05 in	Solder	Push-Pull	Forked	Gold	0.118 in	3 mm	0.181 in	4.6 mm	1	-40 C	105 ░C	12	UL94 V-0	Flash	250 VAC
