071436 Series

1.00mm Mezz (IEEE 1386) Plug, Surface Mount, Dual Row, Vertical Stacking, 64 Circuits, 6.35mm Unmated Height, without PCB Locator Pegs, with Robotic Placement Metal Cap, Embossed Tape on Reel Packaging

Manufacturer: Molex

Catalog

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Mated Stacking Heights	Number of Rows	Mounting Type	Number of Positions	Pitch [x]	Pitch [x]	Features	Height Above Board	Height Above Board	Height Above Board [z]	Height Above Board [z]
Molex 0714368164	0.76 Ám	30 Áin	Gold	8 mm	2	Surface Mount	64	0.039 in	1 mm	Board Guide	0.25 in	6.35 mm
Molex 0714362564	0.76 Ám	30 Áin	Gold	10 mm 12 mm 13 mm 15 mm	2	Surface Mount	64	0.039 in	1 mm		0.329 in	8.35 mm

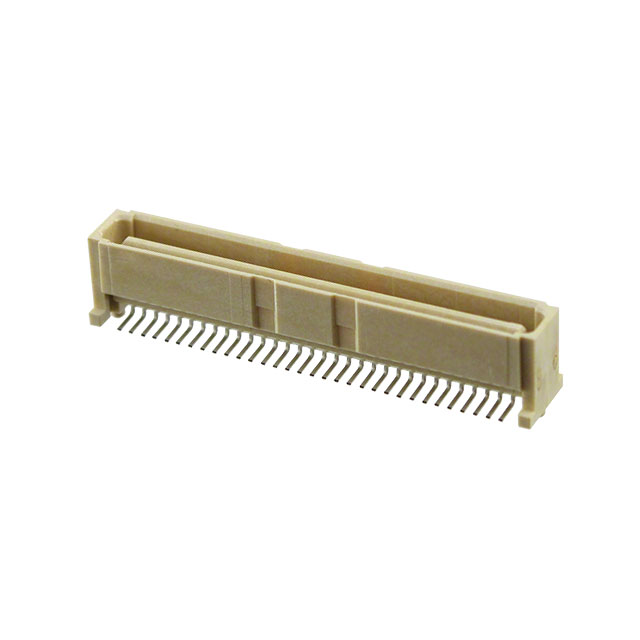

Molex 0714361164	0.76 Ám	30 Áin	Gold	9 mm 11 mm 14 mm	2	Surface Mount	64	0.039 in	1 mm	Board Guide			0.289 in	7.35 mm

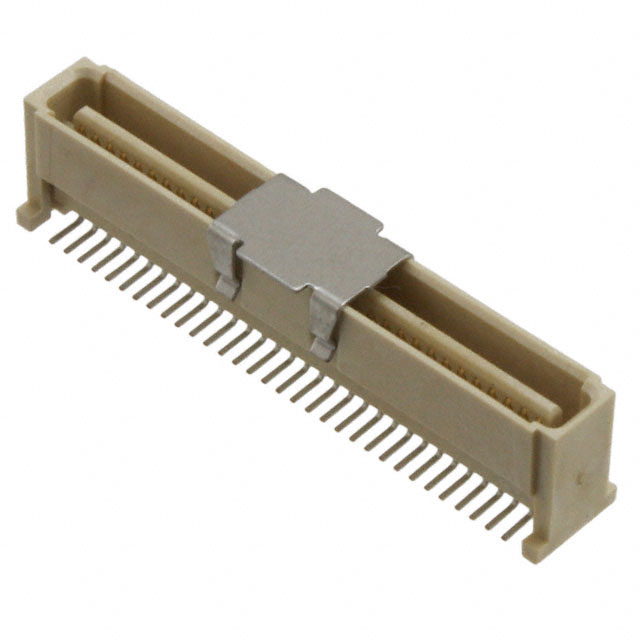

Molex 0714362846	0.76 Ám	30 Áin	Gold	10 mm 12 mm 13 mm 15 mm	2	Surface Mount	64	0.039 in	1 mm		0.329 in	8.35 mm
Molex 0714361064	1.27 µm	50 µin	Gold	9 mm 11 mm 14 mm	2	Surface Mount	64	0.039 in	1 mm				0.289 in	7.35 mm
Molex 0714361464	0.76 Ám	30 Áin	Gold	9 mm 11 mm 14 mm	2	Surface Mount	64	0.039 in	1 mm	Board Guide			0.289 in	7.35 mm
Molex 0714360364	0.76 Ám	30 Áin	Gold	8 mm	2	Surface Mount	64	0.039 in	1 mm	Board Guide	0.25 in	6.35 mm
Molex 0714360164	0.76 Ám	30 Áin	Gold	8 mm	2	Surface Mount	64	0.039 in	1 mm	Board Guide	0.25 in	6.35 mm
Molex 0714361564	0.76 Ám	30 Áin	Gold	9 mm 11 mm 14 mm	2	Surface Mount	64	0.039 in	1 mm				0.289 in	7.35 mm
Molex 0714362164	0.76 Ám	30 Áin	Gold	10 mm 12 mm 13 mm 15 mm	2	Surface Mount	64	0.039 in	1 mm	Board Guide	0.329 in	8.35 mm
