892-005 Series
Manufacturer: EDAC Inc.
Beta
⌘K

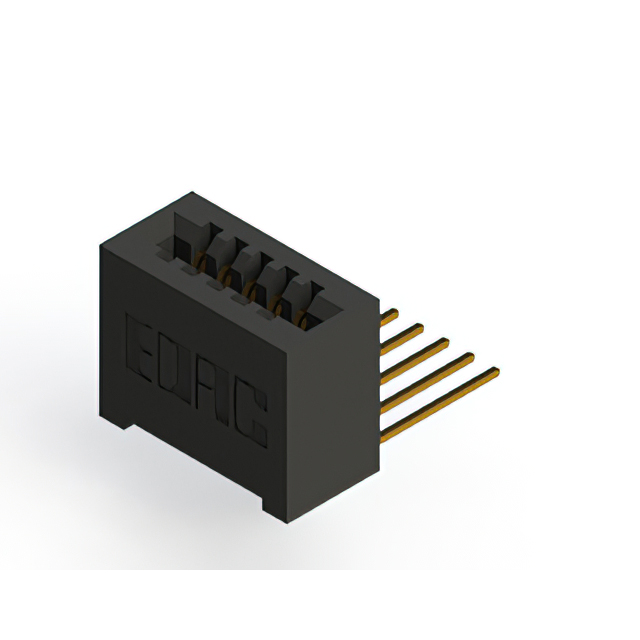

CONN EDGE SINGLE FML 5POS 0.100
| Part | Material - Insulation | Termination Rows | Gender | Number of Rows | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Card Thickness [Max] | Card Thickness [Min] | Color | Number of Positions | Card Type | Number of Positions/Bay/Row | Termination | Contact Finish | Pitch | Pitch | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Type | Read Out | Contact Finish Thickness | Contact Finish Thickness | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Female | 1 | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 5 | Non Specified - Single Edge | 5 | Wire Wrap | Gold | 0.1 " | 2.54 mm | 125 °C | -40 C | Through Hole | Cantilever | Single | 0.25 Ám | 10 Áin | Copper Alloy |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Female | 1 | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 5 | Non Specified - Single Edge | 5 | Solder | Gold | 0.1 " | 2.54 mm | 125 °C | -40 C | Right Angle Through Hole | Cantilever | Single | 0.25 Ám | 10 Áin | Copper Alloy |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Female | 1 | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 5 | Non Specified - Single Edge | 5 | Solder | Gold | 0.1 " | 2.54 mm | 125 °C | -40 C | Through Hole | Cantilever | Single | 0.25 Ám | 10 Áin | Copper Alloy |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Female | 1 | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 5 | Non Specified - Single Edge | 5 | Solder | Gold | 0.1 " | 2.54 mm | 125 °C | -40 C | Through Hole | Cantilever | Single | 0.25 Ám | 10 Áin | Copper Alloy |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Female | 1 | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 5 | Non Specified - Single Edge | 5 | Wire Wrap | Gold | 0.1 " | 2.54 mm | 125 °C | -40 C | Through Hole | Cantilever | Single | 0.25 Ám | 10 Áin | Copper Alloy |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Female | 1 | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 5 | Non Specified - Single Edge | 5 | Solder | Gold | 0.1 " | 2.54 mm | 125 °C | -40 C | Right Angle Through Hole | Cantilever | Single | 0.25 Ám | 10 Áin | Copper Alloy |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Female | 1 | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 5 | Non Specified - Single Edge | 5 | Wire Wrap | Gold | 0.1 " | 2.54 mm | 125 °C | -40 C | Through Hole | Cantilever | Single | 0.25 Ám | 10 Áin | Copper Alloy |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Female | 1 | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 5 | Non Specified - Single Edge | 5 | Solder | Gold | 0.1 " | 2.54 mm | 125 °C | -40 C | Right Angle Through Hole | Cantilever | Single | 0.25 Ám | 10 Áin | Copper Alloy | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Female | 1 | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 5 | Non Specified - Single Edge | 5 | Solder | Gold | 0.1 " | 2.54 mm | 125 °C | -40 C | Through Hole | Cantilever | Single | 0.25 Ám | 10 Áin | Copper Alloy |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Female | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 5 | Non Specified - Single Edge | 5 | Wire Wrap | Gold | 0.1 " | 2.54 mm | 125 °C | -40 C | Through Hole | Cantilever | Single | 0.25 Ám | 10 Áin | Copper Alloy |
