DC04-11 Series

Catalog

DISPLAY 7SEG 0.39" DBL YLW 16DIP

Part	Power Dissipation (Max) [Max]	Common Pin	Voltage - Forward (Vf) (Typ)	Number of Characters	Current - Test	Wavelength - Peak	Millicandela Rating	Digit/Alpha Size	Digit/Alpha Size	Color	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Display Type
Kingbright DC04-11SYKWA	75 mw	Common Cathode	2 V	2	20 mA	590 nm	84 mcd	10 mm	0.39 in	Yellow	16-DIP (0.500" 12.70mm)	7 mm	0.795 in	16 mm	0.276 in	0.63 "	20.2 mm	7-Segment
Kingbright DC04-11SRWA	75 mw	Common Cathode	1.85 V	2	20 mA	660 nm	29 mcd	10 mm	0.39 in	Red	16-DIP (0.500" 12.70mm)							7-Segment
Kingbright DC04-11CGKWA	75 mw	Common Cathode	2.1 V	2	20 mA		25 mcd	10 mm	0.39 in	Green	16-DIP (0.500" 12.70mm)	7 mm	0.795 in	16 mm	0.276 in	0.63 "	20.2 mm	7-Segment
Kingbright DC04-11SURKWA	75 mw	Common Cathode	1.95 V	2	20 mA	645 nm	54 mcd	10 mm	0.39 in	Red	16-DIP (0.500" 12.70mm)	7 mm	0.795 in	16 mm	0.276 in	0.63 "	20.2 mm	7-Segment

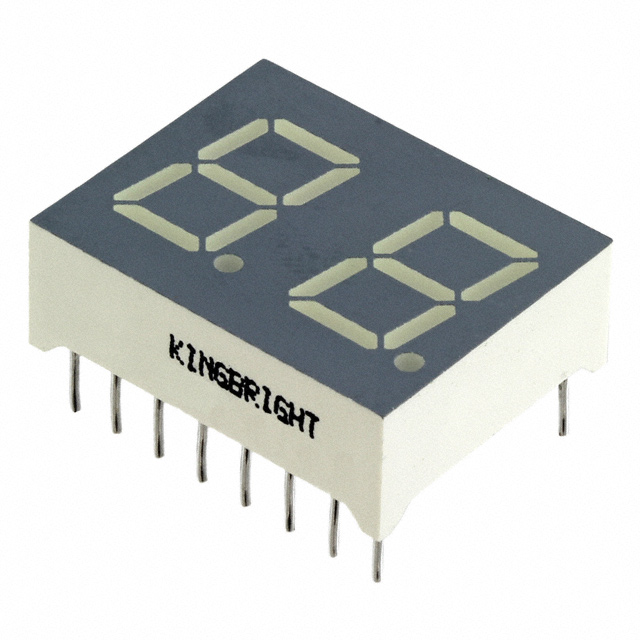

Kingbright DC04-11EWA	75 mw	Common Cathode	2 V	2	20 mA	627 nm		10 mm	0.39 in	Red	16-DIP (0.500" 12.70mm)							7-Segment
Kingbright DC04-11GWA	62.5 mW	Common Cathode	2.2 V	2	20 mA	565 nm	8 mcd	10 mm	0.39 in	Green	16-DIP (0.500" 12.70mm)							7-Segment
