0901-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

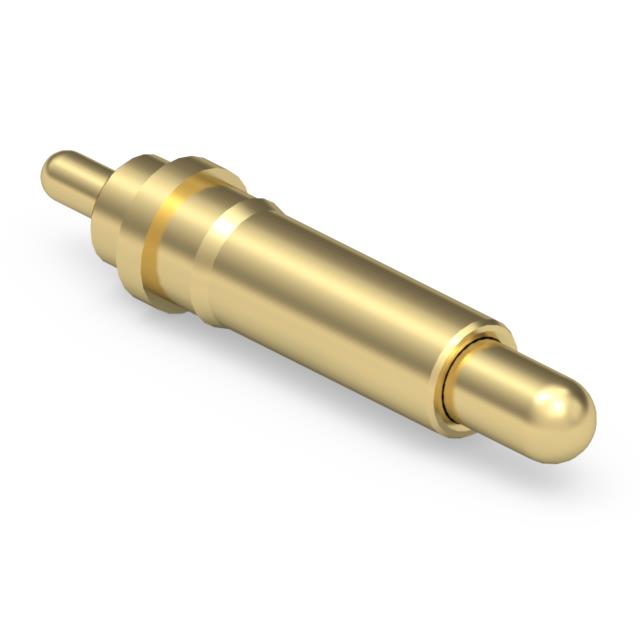

CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Plunger Size [diameter] | Plunger Size [diameter] | Contact Type | Maximum Working Height [Max] | Maximum Working Height [Max] | Current Rating (Amps) | Minimum Working Height | Minimum Working Height | Contact Material | Mating Cycles | Contact Finish | Mounting Type | Recommended Working Height | Recommended Working Height | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Operating Force - Mid Compression | Operating Force - Initial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 155 C | -55 C | 20 µin | 0.51 µm | 0.042 in | 1.07 mm | Sleeve & Plunger (Pogo Pins) | 6.81 mm | 0.268 in | 2 A | 0.213 in | 5.41 mm | Copper Alloy | 1000000 | Gold | Through Hole | 6.11 mm | 0.241 in | 0.07 in | 1.78 mm | ||
 Mill-Max Manufacturing Corp. | 125 °C | -55 C | 20 µin | 0.51 µm | 0.042 in | 1.07 mm | Sleeve & Plunger (Pogo Pins) | 6.81 mm 7.52 mm | 0.268 in 0.296 in | 5.2 A | 0.213 in | 5.41 mm | Brass Alloy | 1000000 | Gold | Through Hole | 6.11 mm | 0.241 in | 0.07 in | 1.78 mm | 60 gf | 10 gf |
