773-E09 Series
Manufacturer: NorComp Inc.
Beta
⌘K
IP67 9 . .318" / ROHS COMPLIANT: YES
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Color | Contact Material | Shell Material, Finish | Features | Backset Spacing | Backset Spacing | Connector Type | Flange Feature | Current Rating (Amps) | Number of Rows [custom] | Material Flammability Rating | Contact Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Positions | Connector Style | Contact Finish | Ingress Protection | Mounting Type | Contact Finish Thickness | Termination | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

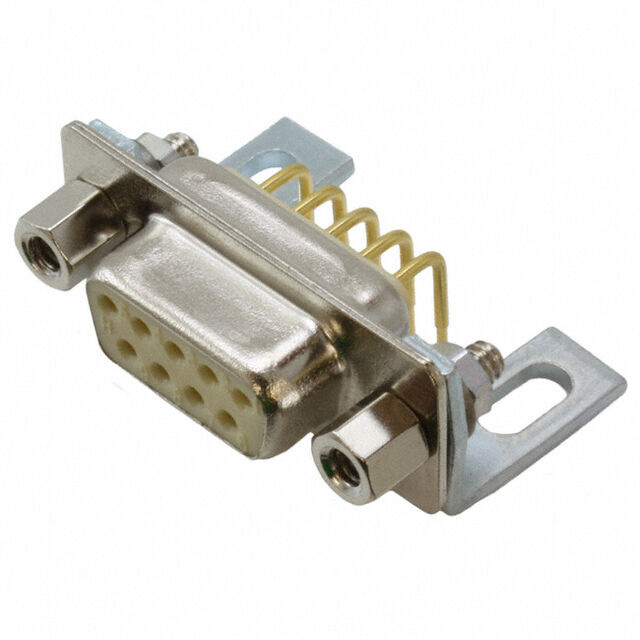

 NorComp Inc. | 100 °C | -50 °C | Polyamide (PA6T) Nylon 6T | White | Brass | Nickel Plated Steel | Mounting Brackets | 7.2 mm | 0.283 in | Receptacle Female Sockets | 4-40 Mating Side Female Screwlock | 5 A | 2 | UL94 V-0 | Signal | 1 | DE E | 9 | D-Sub | Gold | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Flash | Solder | |

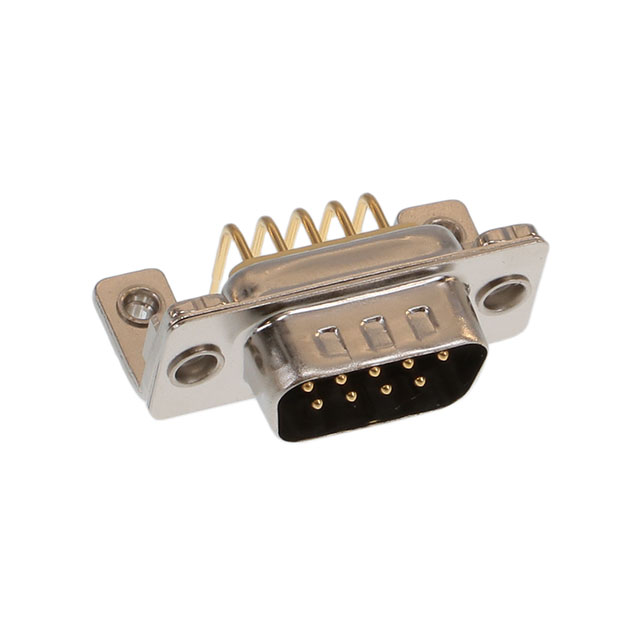

 NorComp Inc. | 100 °C | -50 °C | Polyamide (PA6T) Nylon 6T | White | Brass | Nickel Plated Steel | Board Lock Grounding Indents Mounting Brackets | 7.2 mm | 0.283 in | Plug Male Pins | Housing/Shell | 5 A | 2 | UL94 V-0 | Signal | 1 | DE E | 9 | D-Sub | Gold | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Flash | Solder | 4-40 |

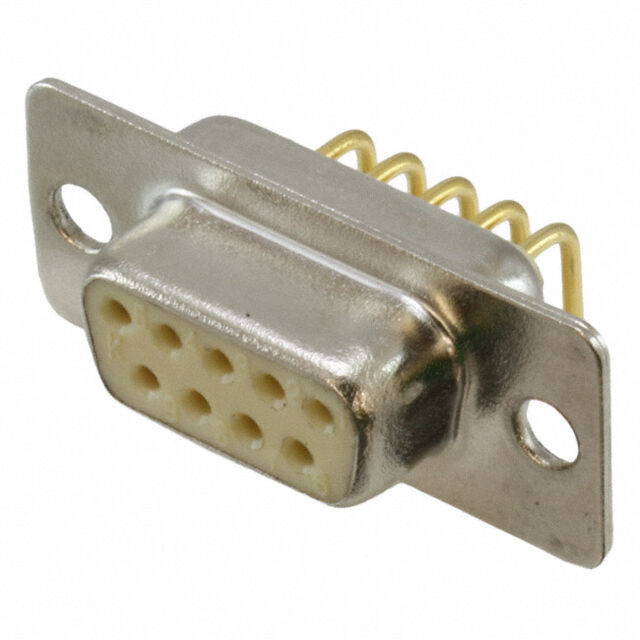

 NorComp Inc. | 100 °C | -50 °C | Polyamide (PA6T) Nylon 6T | White | Brass | Nickel Plated Steel | 7.2 mm | 0.283 in | Receptacle Female Sockets | Housing/Shell (Unthreaded) | 5 A | 2 | UL94 V-0 | Signal | 1 | DE E | 9 | D-Sub | Gold | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Flash | Solder |
