317-030 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 60POS 0.156

Part	Material - Insulation	Card Type	Contact Finish	Gender	Mounting Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Read Out	Color	Number of Positions	Number of Rows [custom]	Flange Feature [diameter]	Flange Feature [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Termination	Number of Positions/Bay/Row	Flange Feature

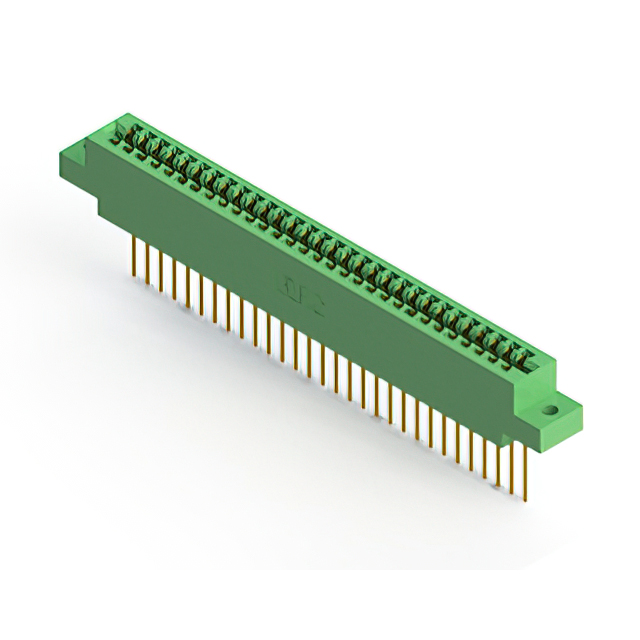

EDAC Inc. 317-030-541-604	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Gold	Female	Through Hole	Cantilever	0.25 Ám	10 Áin	Single	Green	60	2	0.156 "	3.96 mm	-65 ░C	125 °C	3.96 mm	0.156 in	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	30

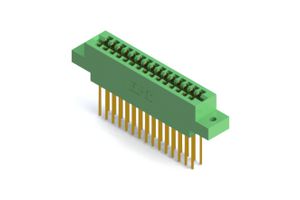

EDAC Inc. 317-030-540-802	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Gold	Female	Through Hole	Cantilever	0.25 Ám	10 Áin	Dual	Green	30	2			-65 ░C	125 °C	3.96 mm	0.156 in	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	15

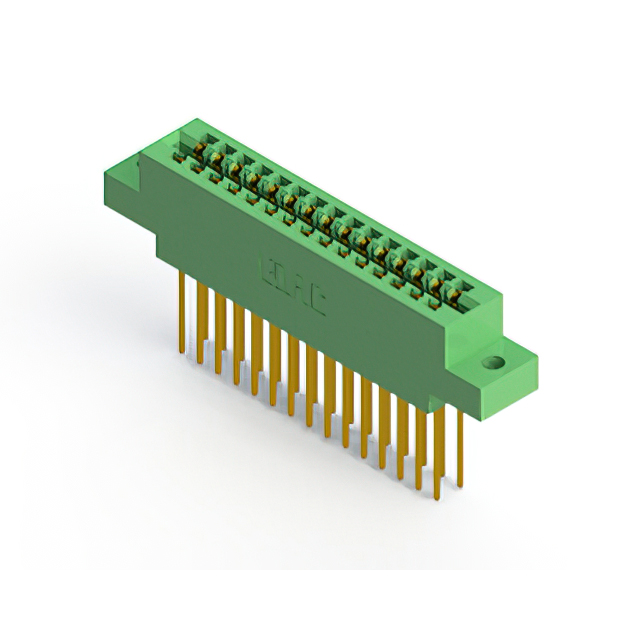

EDAC Inc. 317-030-542-804	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Gold	Female	Through Hole	Cantilever	0.25 Ám	10 Áin	Dual	Green	30	2	0.156 "	3.96 mm	-65 ░C	125 °C	3.96 mm	0.156 in	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	15

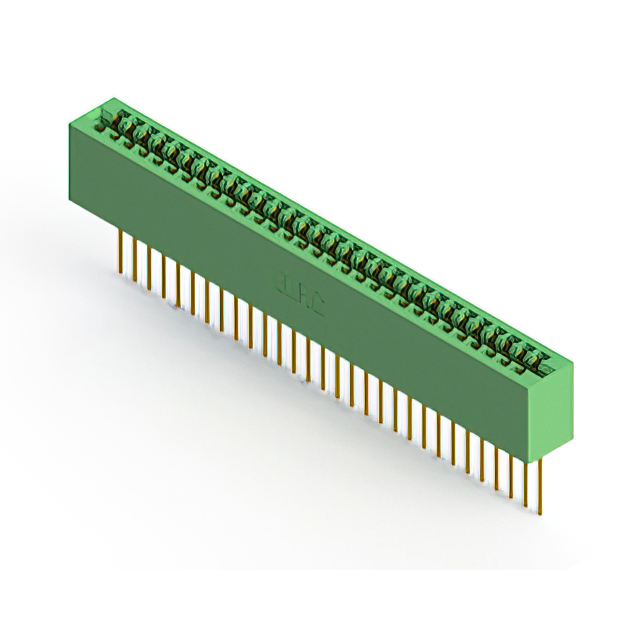

EDAC Inc. 317-030-541-601	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Gold	Female	Through Hole	Cantilever	0.25 Ám	10 Áin	Single	Green	60	2			-65 ░C	125 °C	3.96 mm	0.156 in	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	30

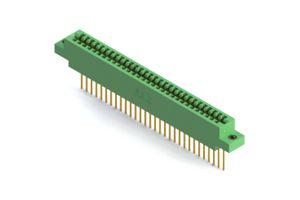

EDAC Inc. 317-030-541-608	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Gold	Female	Through Hole	Cantilever	0.25 Ám	10 Áin	Single	Green	60	2			-65 ░C	125 °C	3.96 mm	0.156 in	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	30	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 317-030-541-603	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Gold	Female	Through Hole	Cantilever	0.25 Ám	10 Áin	Single	Green	60	2	0.116 "	2.95 mm	-65 ░C	125 °C	3.96 mm	0.156 in	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	30	Floating Bobbin Flush Mount

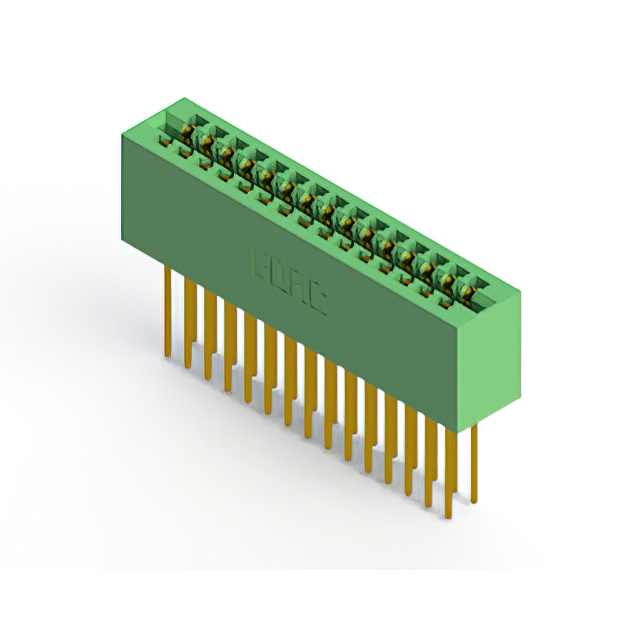

EDAC Inc. 317-030-542-801	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Gold	Female	Through Hole	Cantilever	0.25 Ám	10 Áin	Dual	Green	30	2			-65 ░C	125 °C	3.96 mm	0.156 in	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	15

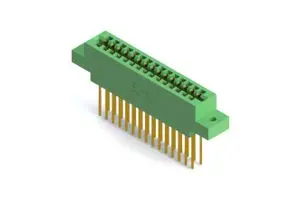

EDAC Inc. 317-030-542-802	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Gold	Female	Through Hole	Cantilever	0.25 Ám	10 Áin	Dual	Green	30	2			-65 ░C	125 °C	3.96 mm	0.156 in	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	15
EDAC Inc. 317-030-542-807	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Gold	Female	Through Hole	Cantilever	0.25 Ám	10 Áin	Dual	Green	30	2			-65 ░C	125 °C	3.96 mm	0.156 in	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	15	M3 Threaded Insert Top Mount Opening

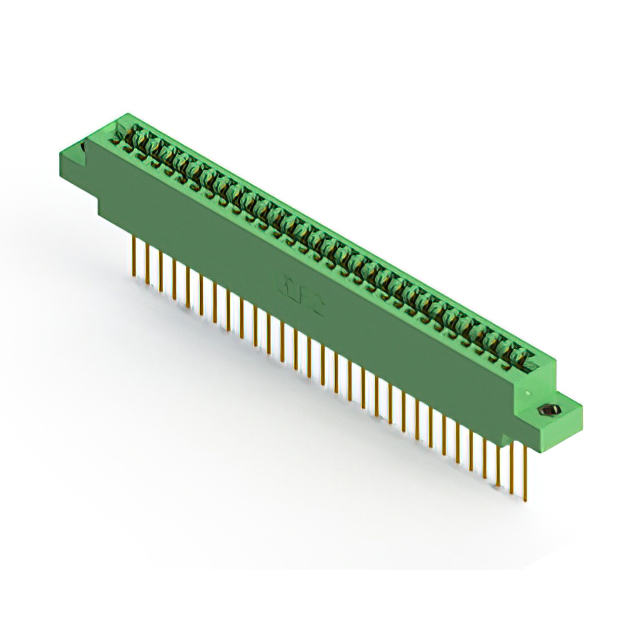

EDAC Inc. 317-030-541-607	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Gold	Female	Through Hole	Cantilever	0.25 Ám	10 Áin	Single	Green	60	2			-65 ░C	125 °C	3.96 mm	0.156 in	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	30	M3 Threaded Insert Top Mount Opening
