TL1250 Series

Manufacturer: E-Switch

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Mechanical Life	Switch Travel	Illumination	Contact Rating @ Voltage	Circuit	Operating Force	Illumination Type, Color	Termination Style	Features	Actuator Orientation	Actuator Length, Right Angle	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Voltage (Nominal)	Mounting Type	Actuator Type	Switch Function	Outline [y]	Outline [x]	Actuator Length, Right Angle [custom]

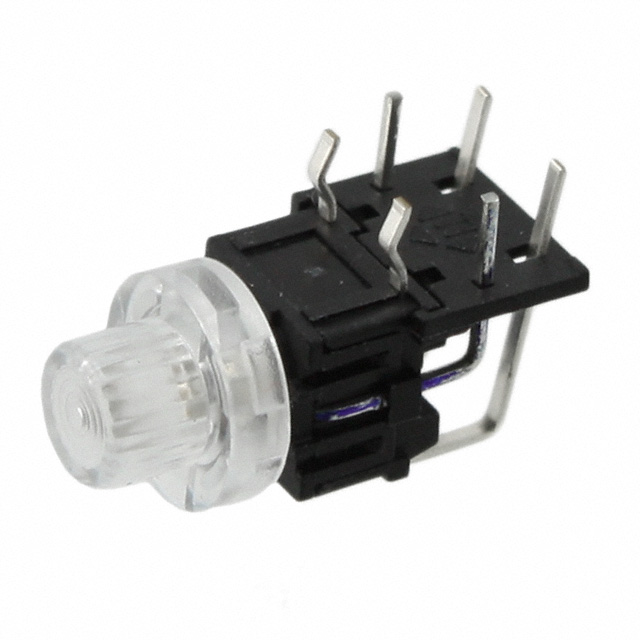

E-Switch TL1250F180BQRCLR	50000 Cycles	0.2 mm	Illuminated	0.05 A 12 VDC	SPST-NO	180 gf	Blue LED	PC Pin	Tactile Feedback	Side Actuated	10.7 mm	-20 ░C	70 °C	4 VDC	Right Angle Through Hole	Round Button	Off-Mom	10.3 mm	8.3 mm

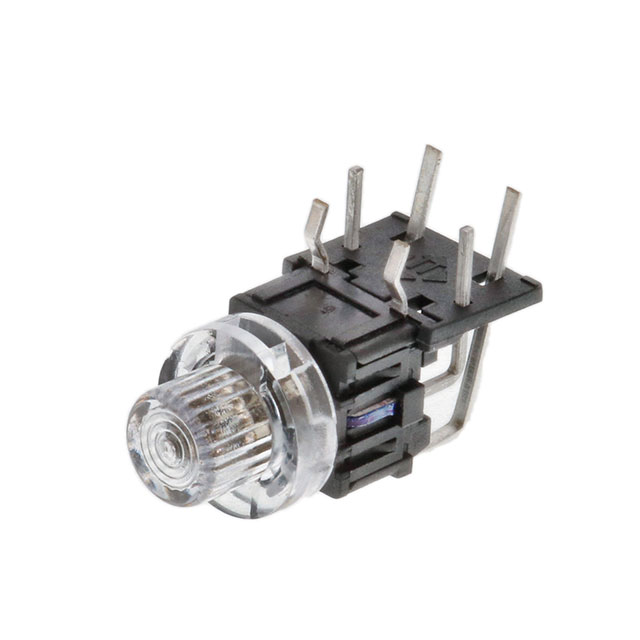

E-Switch TL1250F120BQRCLR	50000 Cycles	0.2 mm	Illuminated	0.05 A 12 VDC	SPST-NO	120 gf	Blue LED	PC Pin	Tactile Feedback	Side Actuated	10.7 mm	-20 ░C	70 °C	4 VDC	Right Angle Through Hole	Round Button	Off-Mom	10.3 mm	8.3 mm

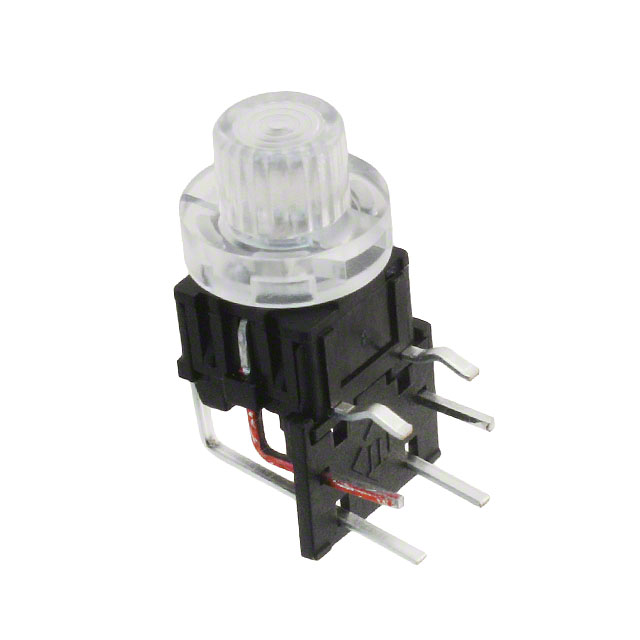

E-Switch TL1250F180RQRCLR	50000 Cycles	0.2 mm	Illuminated	0.05 A 12 VDC	SPST-NO	180 gf	LED Red	PC Pin	Tactile Feedback	Side Actuated	10.7 mm	-20 ░C	70 °C	2.3 VDC	Right Angle Through Hole	Round Button	Off-Mom	10.3 mm	8.3 mm

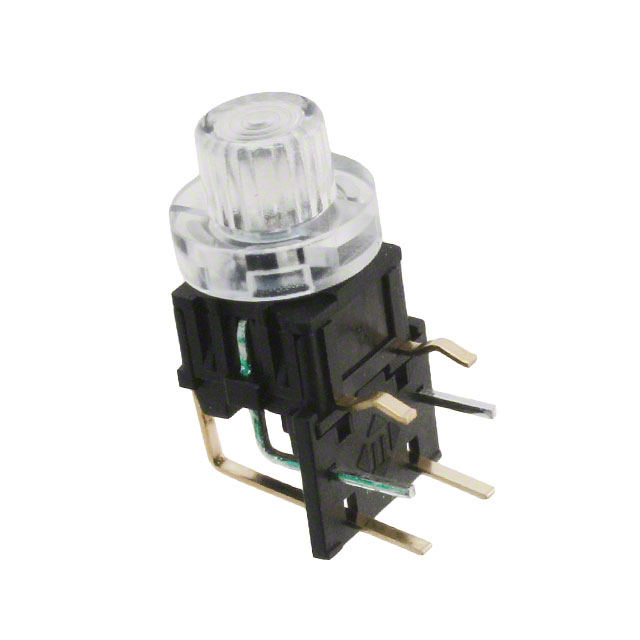

E-Switch TL1250F280GRRCLR	50000 Cycles	0.2 mm	Illuminated	0.05 A 12 VDC	SPST-NO	280 gf	Green LED	PC Pin	Tactile Feedback	Side Actuated	10.7 mm	-20 ░C	70 °C	2.3 VDC	Right Angle Through Hole	Round Button	Off-Mom	10.3 mm	8.3 mm

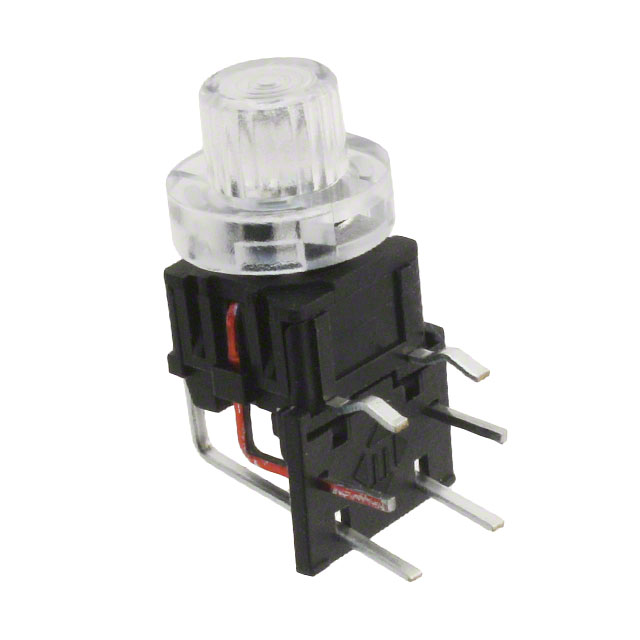

E-Switch TL1250F280RQRCLR	50000 Cycles	0.2 mm	Illuminated	0.05 A 12 VDC	SPST-NO	280 gf	LED Red	PC Pin	Tactile Feedback	Side Actuated	10.7 mm	-20 ░C	70 °C	2.3 VDC	Right Angle Through Hole	Round Button	Off-Mom	10.3 mm	8.3 mm

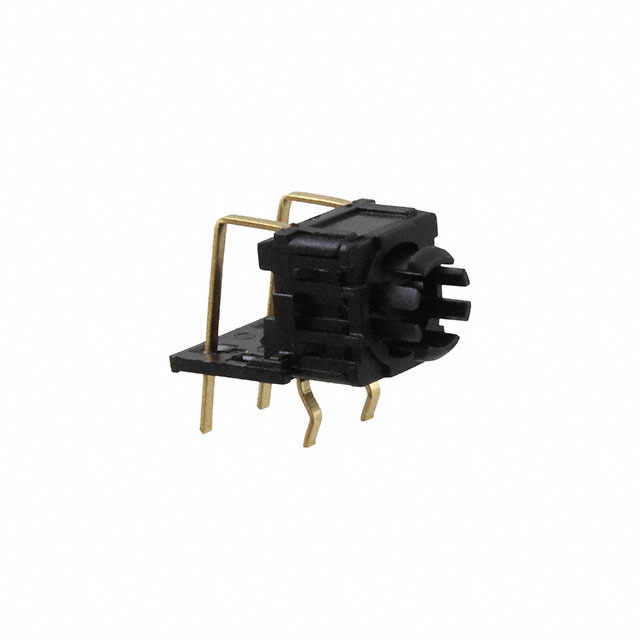

E-Switch TL1250F280ARN	50000 Cycles	0.2 mm	Non-Illuminated	0.05 A 12 VDC	SPST-NO	280 gf		PC Pin	Tactile Feedback	Side Actuated		-20 ░C	70 °C		Right Angle Through Hole	Plunger for Cap	Off-Mom	10.3 mm	8.3 mm	6.4 mm

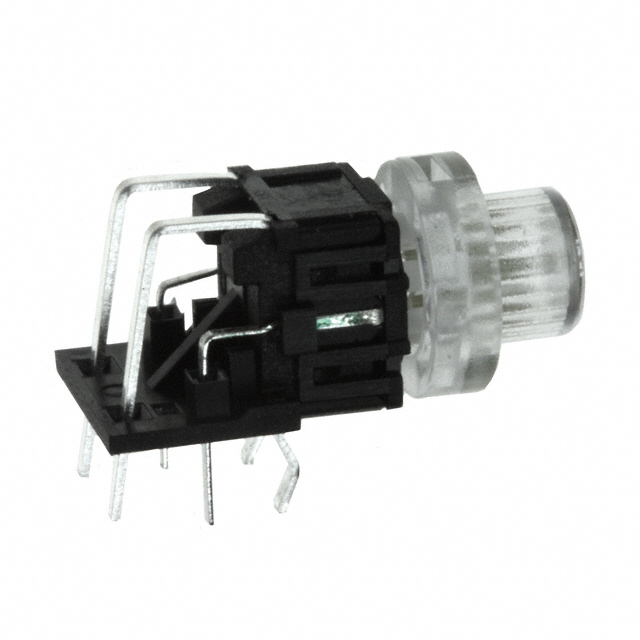

E-Switch TL1250F180GQRCLR	50000 Cycles	0.2 mm	Illuminated	0.05 A 12 VDC	SPST-NO	180 gf	Green LED	PC Pin	Tactile Feedback	Side Actuated	10.7 mm	-20 ░C	70 °C	2.3 VDC	Right Angle Through Hole	Round Button	Off-Mom	10.3 mm	8.3 mm
E-Switch TL1250F180AQRCLR	50000 Cycles	0.2 mm	Illuminated	0.05 A 12 VDC	SPST-NO	180 gf		PC Pin	Tactile Feedback	Side Actuated	10.7 mm	-20 ░C	70 °C		Right Angle Through Hole	Round Button	Off-Mom	10.3 mm	8.3 mm
E-Switch TL1250F180RGRRCLR	50000 Cycles	0.2 mm	Illuminated	0.05 A 12 VDC	SPST-NO	180 gf	Green/Red LED	PC Pin		Side Actuated	10.7 mm	-20 ░C	70 °C	2.3 VDC	Right Angle Through Hole	Round Button	Off-Mom	10.3 mm	8.3 mm

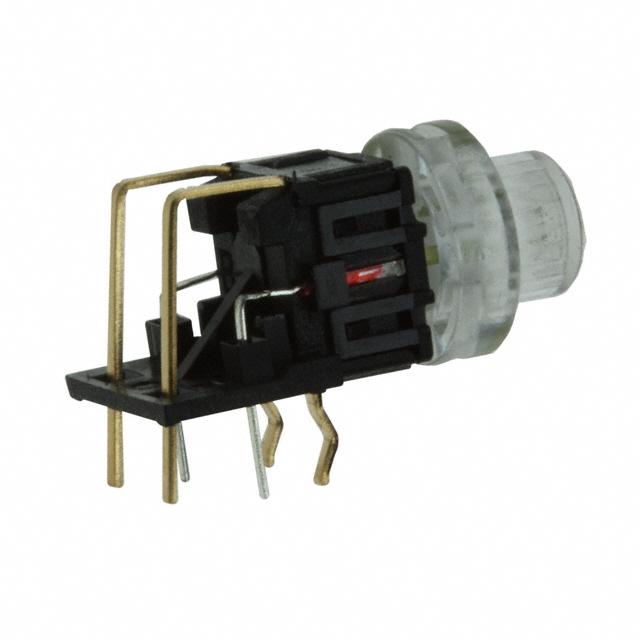

E-Switch TL1250F180RRRCLR	50000 Cycles	0.2 mm	Illuminated	0.05 A 12 VDC	SPST-NO	180 gf	LED Red	PC Pin	Tactile Feedback	Side Actuated	10.7 mm	-20 ░C	70 °C	2.3 VDC	Right Angle Through Hole	Round Button	Off-Mom	10.3 mm	8.3 mm
