3-PH OLR/100-240V/12.5-800FLA/
Description
AI

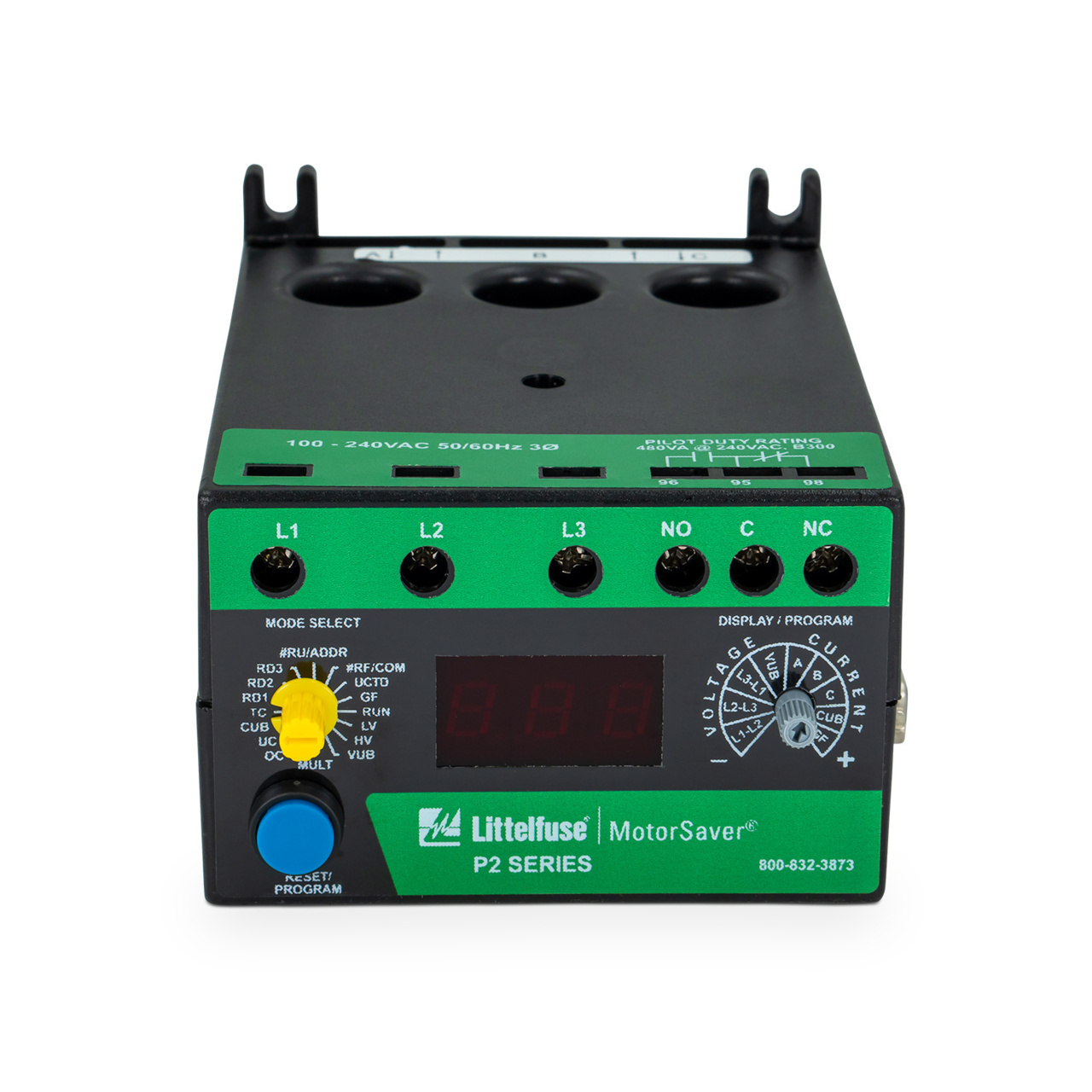

The 777-MV-P2 three-phase current and voltage monitor provides motor protection with input voltage from 100–240 V ac and motor full load ampere range of 10–800 A (external CTs required).
Beta
⌘K
3-PH OLR/100-240V/12.5-800FLA/
3-PH OLR/100-240V/12.5-800FLA/
| Part | Mounting Type | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply [Min] | Voltage - Supply [Max] | Function | Delay Time [Max] | Delay Time [Min] | Trip Range [Min] | Trip Range [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | Chassis Mount | Screw Terminal | -20 C | 70 °C | 100 VAC | 240 VAC | Multiple | 999 Sec | 0 s | 10 A 85 VAC | 264 VAC 800 A |
