T 3424 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN PLUG HSNG MALE 6POS INLINE

Part	Contact Type	Shell Size - Insert	Mounting Type	Orientation	Fastening Type	Note	Number of Positions	Type	Shell Material	Contact Shape	Ingress Protection	Connector Type	Features	Shell Finish	Housing Color	Insert Material	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Size	Current Rating (Amps)	Voltage Rating	Primary Material	Contact Finish - Mating	Color

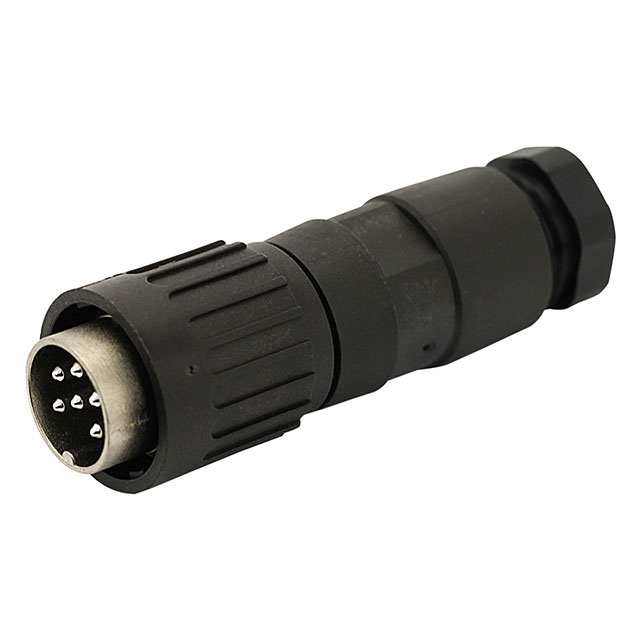

Amphenol Tuchel Industrial T 3424 552	Crimp	M16-6	Free Hanging (In-Line)	Keyed	Bayonet Lock	Contacts Not Included	6	For Male Pins	Die Cast	Circular	IP40	Plug Housing	Backshell Cable Clamp Coupling Nut	Nickel	Black Silver	Thermoplastic	Unshielded	-40 C	100 °C	UL94 V-0	1.5 mm

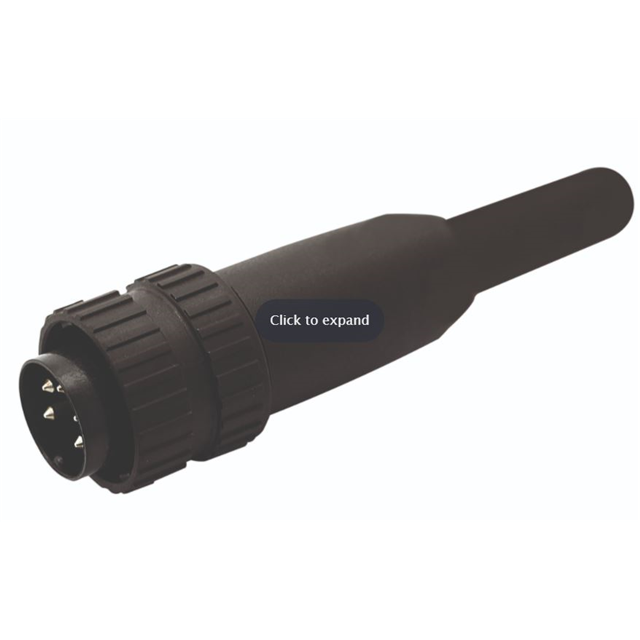

Amphenol Tuchel Industrial T 3424 991		M16-6	Free Hanging (In-Line)	Keyed	Bayonet Lock		6		Plastic		IP40	Plug Male Pins	Strain Relief					-40 C	100 °C			7 A	250 V	Plastic	Silver
Amphenol Tuchel Industrial T 3424 518		M16-6	Free Hanging (In-Line)	Keyed	Bayonet Lock		6		Die Cast		IP40	Plug Male Pins	Strain Relief	Nickel				-40 C	100 °C			7 A	250 V	Metal	Gold	Silver

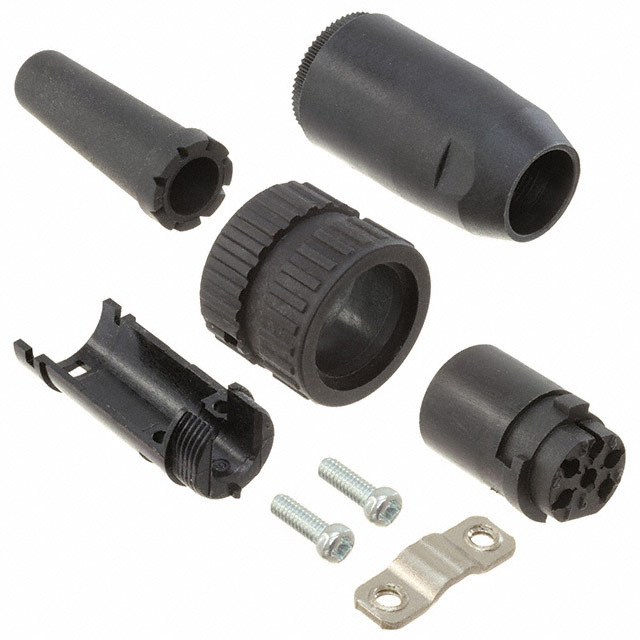

Amphenol Tuchel Industrial T 3424 951	Crimp	M16-6	Free Hanging (In-Line)	Keyed	Bayonet Lock	Contacts Not Included	6	For Male Pins	Plastic	Circular	IP40	Plug Housing	Coupling Nut Strain Relief		Black	Thermoplastic	Unshielded	-40 C	100 °C	UL94 V-0	1.5 mm
Amphenol Tuchel Industrial T 3424 005		M16-6	Free Hanging (In-Line) Right Angle	Keyed	Bayonet Lock		6		Die Cast		IP40	Plug Male Pins	Strain Relief	Nickel				-40 C	100 °C			7 A	250 V	Metal	Silver	Silver

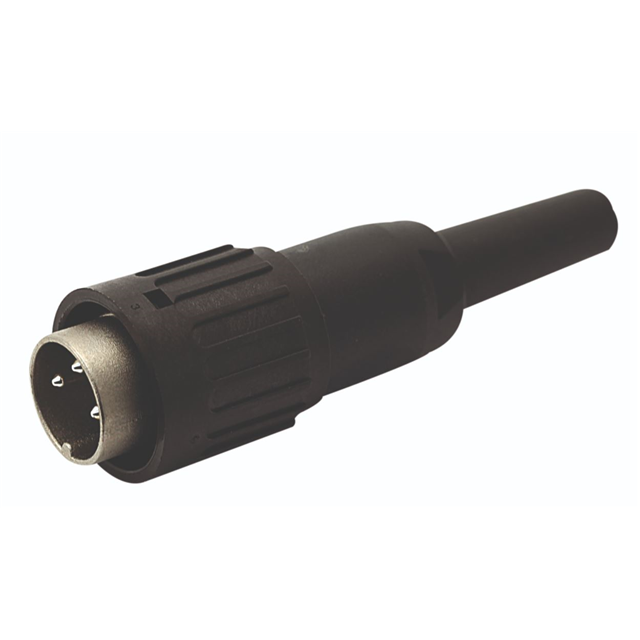

Amphenol Tuchel Industrial T 3424 551	Crimp	M16-6	Free Hanging (In-Line)	Keyed	Bayonet Lock	Contacts Not Included	6	For Male Pins	Die Cast	Circular	IP40	Plug Housing	Cable Clamp Coupling Nut Strain Relief	Nickel	Black Silver	Thermoplastic	Unshielded	-40 C	100 °C	UL94 V-0	1.5 mm
