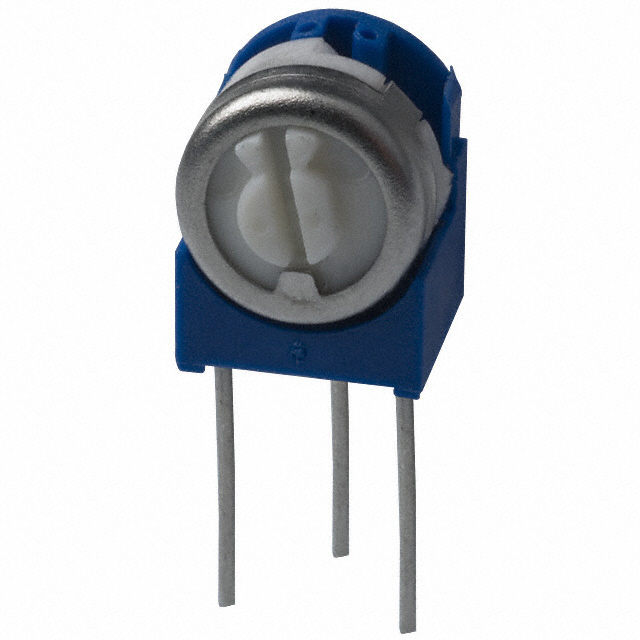

3329S Series

Catalog

TRIMMER 200KOHM 0.5W PC PIN SIDE

Part	Temperature Coefficient	Tolerance	Adjustment Type	Termination Style	Resistive Material	Power (Watts)	Power (Watts)	Number of Turns	Resistance	Size / Dimension [y]	Size / Dimension [x]	Mounting Type
Bourns Inc. 3329S-1-204LF	100 ppm/°C	10 %	Side Adjustment	PC Pins	Cermet	0.5 W	0.5 W	1	200000 Ohms	0.33 " 8.38 mm	0.26 in 6.6 mm	Through Hole
Bourns Inc. 3329S-1-500LF	100 ppm/°C	10 %	Side Adjustment	PC Pins	Cermet	0.5 W	0.5 W	1	50 Ohms	0.33 " 8.38 mm	0.26 in 6.6 mm	Through Hole
Bourns Inc. 3329S-1-101LF	100 ppm/°C	10 %	Side Adjustment	PC Pins	Cermet	0.5 W	0.5 W	1	100 Ohms	0.33 " 8.38 mm	0.26 in 6.6 mm	Through Hole
Bourns Inc. 3329S-1-502LF	100 ppm/°C	10 %	Side Adjustment	PC Pins	Cermet	0.5 W	0.5 W	1	5 kOhms	0.33 " 8.38 mm	0.26 in 6.6 mm	Through Hole
Bourns Inc. 3329S-1-501	100 ppm/°C	10 %	Side Adjustment	PC Pins	Cermet	0.5 W	0.5 W	1	0.5 kOhms	0.33 " 8.38 mm	0.26 in 6.6 mm	Through Hole
Bourns Inc. 3329S-1-202LF	100 ppm/°C	10 %	Side Adjustment	PC Pins	Cermet	0.5 W	0.5 W	1	2 kOhms	0.33 " 8.38 mm	0.26 in 6.6 mm	Through Hole
Bourns Inc. 3329S-1-104LF	100 ppm/°C	10 %	Side Adjustment	PC Pins	Cermet	0.5 W	0.5 W	1	100 kOhms	0.33 " 8.38 mm	0.26 in 6.6 mm	Through Hole
Bourns Inc. 3329S-1-503LF	100 ppm/°C	10 %	Side Adjustment	PC Pins	Cermet	0.5 W	0.5 W	1	50000 Ohms	0.33 " 8.38 mm	0.26 in 6.6 mm	Through Hole
Bourns Inc. 3329S-1-103LF	100 ppm/°C	10 %	Side Adjustment	PC Pins	Cermet	0.5 W	0.5 W	1	10000 Ohms	0.33 " 8.38 mm	0.26 in 6.6 mm	Through Hole
Bourns Inc. 3329S-1-501LF	100 ppm/°C	10 %	Side Adjustment	PC Pins	Cermet	0.5 W	0.5 W	1	0.5 kOhms	0.33 " 8.38 mm	0.26 in 6.6 mm	Through Hole
