M24308/23 Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K
CONN D-SUB RCPT 37POS R/A SOLDER
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Shell Material, Finish [custom] | Shell Material, Finish [custom] | Shell Size, Connector Layout | Shell Size, Connector Layout | Contact Finish | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Termination | Flange Feature | Number of Rows [custom] | Features | Current Rating (Amps) | Connector Style | Number of Positions | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Material, Finish | Shell Size, Connector Layout [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

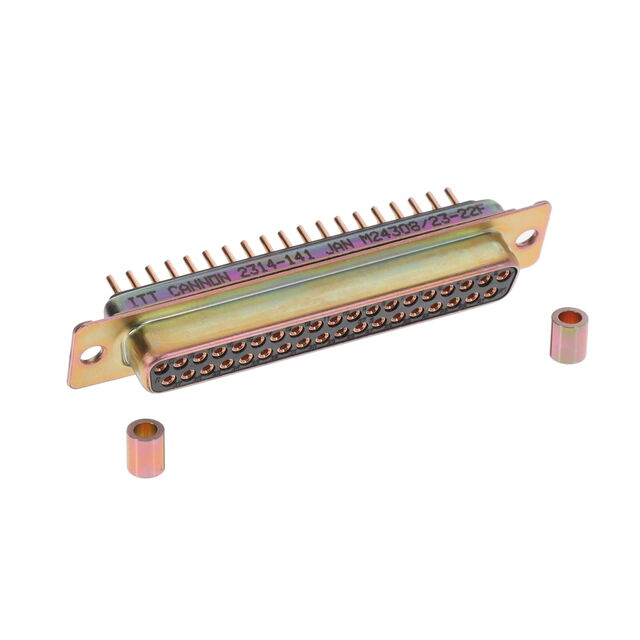

 ITT Cannon, LLC | Polyester | -55 C | 150 °C | Signal | Yellow Chromate Plated Zinc | Steel | 4 | DC C | Gold | Panel Mount Right Angle Through Hole | 50 µin | 1.27 µm | Receptacle Female Sockets | Solder | Housing/Shell (Unthreaded) | 2 | Mounting Brackets | 7.5 A | D-Sub | 37 | ||||

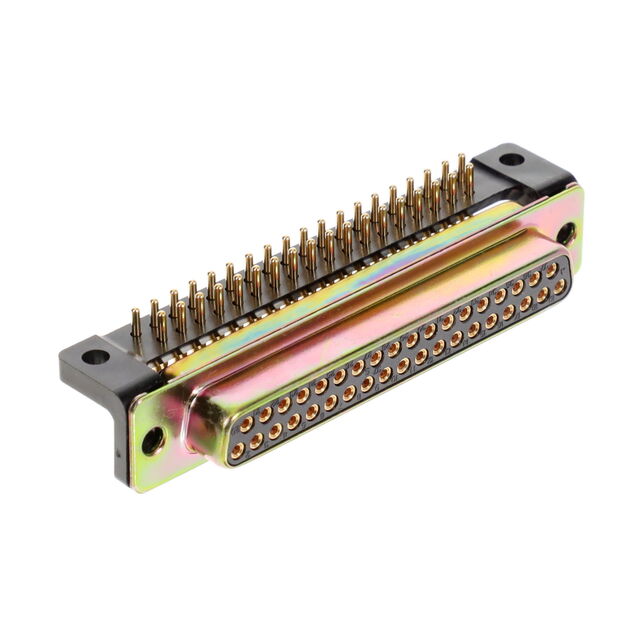

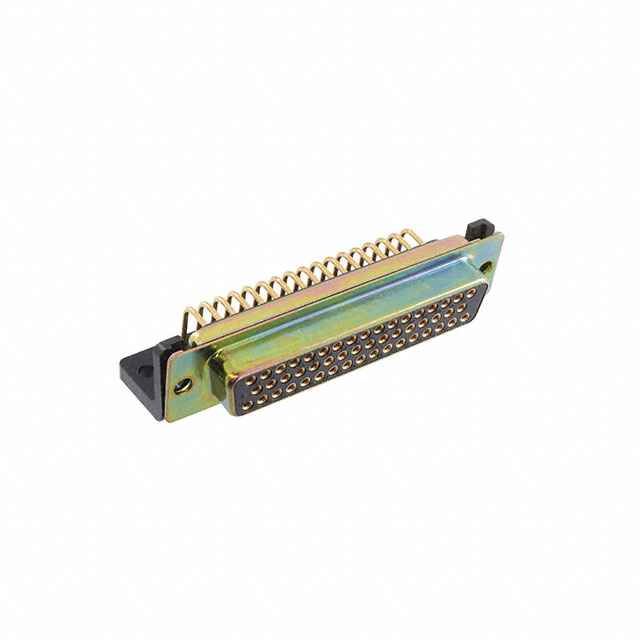

 ITT Cannon, LLC | Polyester | -55 C | 150 °C | Signal | Yellow Chromate Plated Zinc | Steel | Gold | Panel Mount Right Angle Through Hole | 50 µin | 1.27 µm | Receptacle Female Sockets | Solder | Housing/Shell (Unthreaded) | 3 | Mounting Brackets | 7.5 A | D-Sub | 50 | 5 | D DD | ||||
 ITT Cannon, LLC | Polyester | -55 C | 150 °C | Signal | 4 | DC C | Gold | Panel Mount Through Hole | 50 µin | 1.27 µm | Receptacle Female Sockets | Solder | Housing/Shell (Unthreaded) | 2 | 7.5 A | D-Sub | 37 | Steel Yellow Chromate Plated Cadmium | ||||||
 ITT Cannon, LLC | Polyester | -55 C | 150 °C | Signal | B DB | Gold | Panel Mount Through Hole | 50 µin | 1.27 µm | Receptacle Female Sockets | Solder | Housing/Shell (Unthreaded) | 2 | 7.5 A | D-Sub | 25 | Steel Yellow Chromate Plated Cadmium | 3 | ||||||

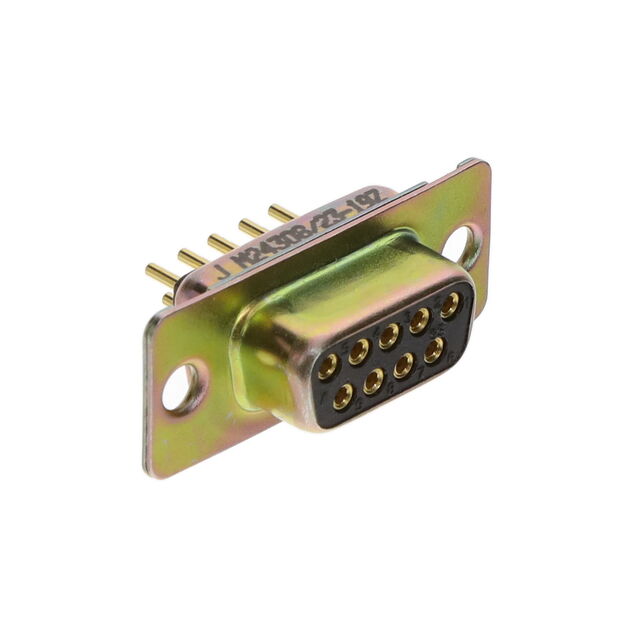

 ITT Cannon, LLC | Thermoplastic | -55 C | 125 °C | Signal | Yellow Chromate Plated Zinc | Steel | Gold | Panel Mount Through Hole | 50 µin | 1.27 µm | Receptacle Female Sockets | Solder | Housing/Shell (Unthreaded) | 2 | Shielded | 7.5 A | D-Sub | 9 | 1 | DE E | ||||

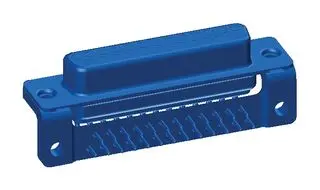

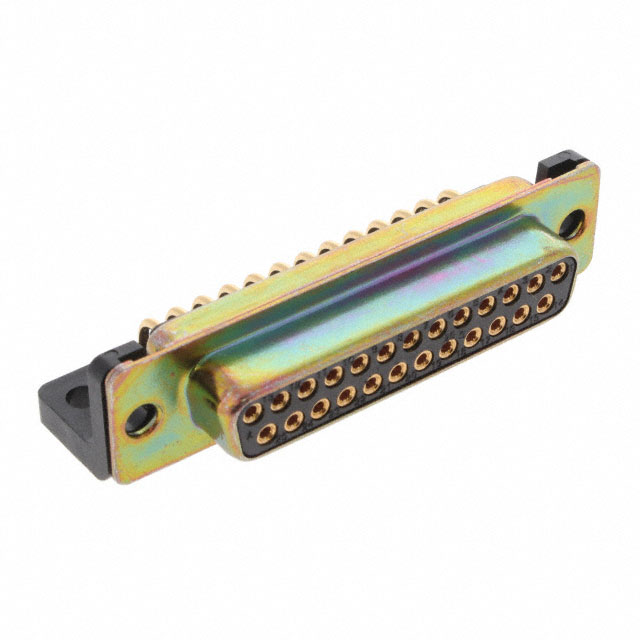

 ITT Cannon, LLC | Polyester | -55 C | 150 °C | Signal | Yellow Chromate Plated Zinc | Steel | B DB | Gold | Panel Mount Right Angle Through Hole | 50 µin | 1.27 µm | Receptacle Female Sockets | Solder | Housing/Shell (Unthreaded) | 2 | Mounting Brackets | 7.5 A | D-Sub | 25 | 3 | ||||

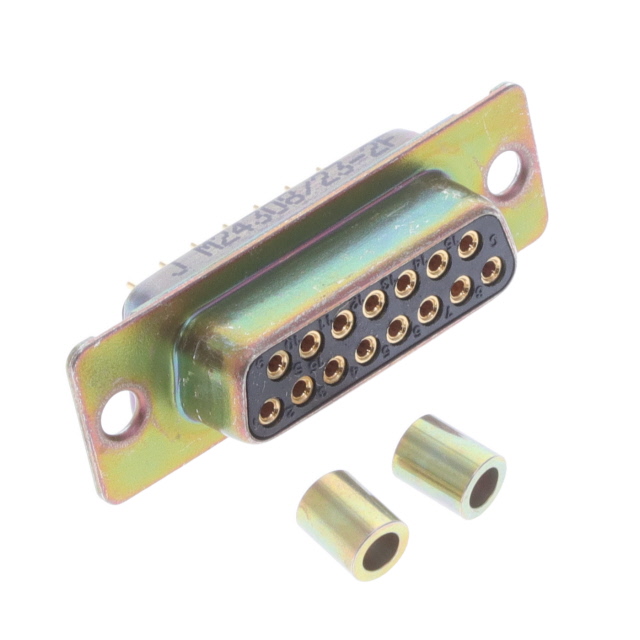

 ITT Cannon, LLC | Polyester | -55 C | 150 °C | Signal | 2 | Gold | Panel Mount Through Hole | 50 µin | 1.27 µm | Receptacle Female Sockets | Solder | Housing/Shell (Unthreaded) | 2 | 7.5 A | D-Sub | 15 | Steel Yellow Chromate Plated Cadmium | |||||||

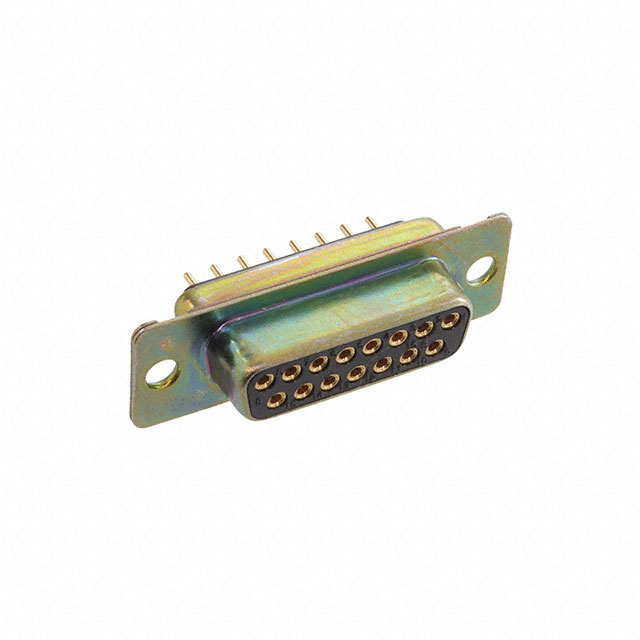

 ITT Cannon, LLC | Polyester | -55 C | 150 °C | Signal | Yellow Chromate Plated Zinc | Steel | 2 | Gold | Panel Mount Through Hole | 50 µin | 1.27 µm | Receptacle Female Sockets | Solder | Housing/Shell (Unthreaded) | 2 | 7.5 A | D-Sub | 15 | ||||||
 ITT Cannon, LLC | Thermoplastic | -55 C | 125 °C | Signal | 4 | DC C | Gold | Panel Mount Through Hole | 50 µin | 1.27 µm | Receptacle Female Sockets | Solder | Housing/Shell (Unthreaded) | 2 | Shielded | 7.5 A | D-Sub | 37 | Steel Yellow Chromate Plated Cadmium | |||||
 ITT Cannon, LLC | Polyester | -55 C | 150 °C | Signal | B DB | Gold | Panel Mount Right Angle Through Hole | 50 µin | 1.27 µm | Receptacle Female Sockets | Solder | Housing/Shell (Unthreaded) | 2 | Mounting Brackets | 7.5 A | D-Sub | 25 | Steel Yellow Chromate Plated Cadmium | 3 |
