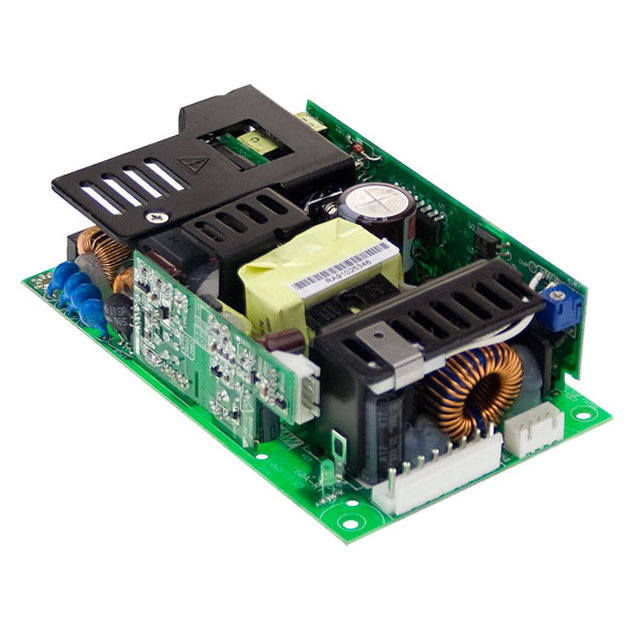

RPT-160 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 5V 12V 24V 95W
| Part | Minimum Load Required | Voltage - Output 3 | Voltage - Output 1 | Number of Outputs | Type | Approval Agency | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Current - Output 2 | Current - Output 1 | Features | Voltage - Output 2 | Applications | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | Efficiency | Current - Output 3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 24 V | 5 V | 3 | Open Frame | CB CE cURus TUV | 264 VAC 370 VDC | 90 VAC 127 VDC | 4000 V | 70 °C | -20 °C | 95 W 144 W | 2.6 A | 8 A | Adjustable Output Universal Input | 12 V | Medical | 127 mm | 1.36 in | 3 " | 34.5 mm | 5 " | 76.2 mm | Chassis Mount | 83 % | ||
MEAN WELL USA Inc. | -5 V | 5 V | 3 | Open Frame | CB CE cURus TUV | 264 VAC 370 VDC | 90 VAC 127 VDC | 4000 V | 70 °C | -20 °C | 96 W 141 W | 3.8 A | 9 A | Adjustable Output Universal Input | 12 V | Medical | 127 mm | 1.36 in | 3 " | 34.5 mm | 5 " | 76.2 mm | Chassis Mount | 84 % | 600 mA | |
MEAN WELL USA Inc. | -15 V | 5 V | 3 | Open Frame | CB CE cURus TUV | 264 VAC 370 VDC | 90 VAC 127 VDC | 4000 V | 70 °C | -20 °C | 96 W 139 W | 2.6 A | 9 A | Adjustable Output Universal Input | 15 V | Medical | 127 mm | 1.36 in | 3 " | 34.5 mm | 5 " | 76.2 mm | Chassis Mount | 83 % | 0.8 A |
