25073/1 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

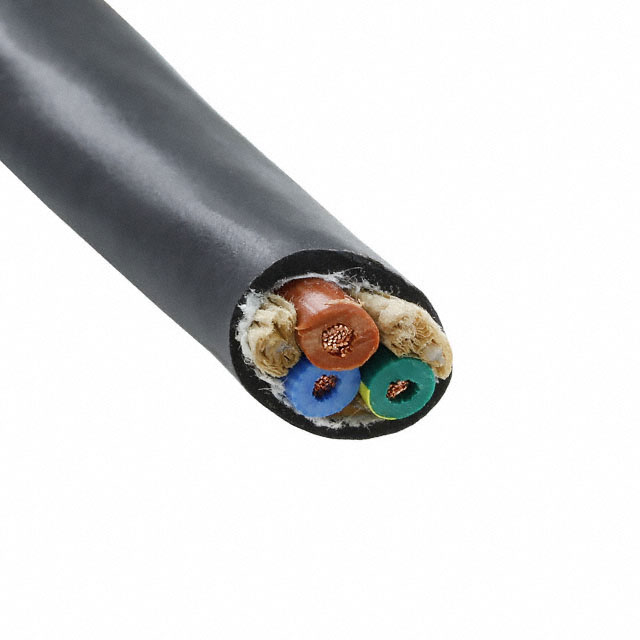

CABLE 3COND 16AWG BLACK 1000'
| Part | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Jacket (Insulation) Material | Conductor Insulation | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Number of Conductors | Ratings | Conductor Strand [custom] | Conductor Strand [diameter] | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Multi-Conductor | 0.813 mm | 0.032 in | 304.8 m | 1000 ft | Polyurethane (PU) | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | 0.264 in | 6.71 mm | 300 VDC | Copper Tinned | -30 ░C | 90 °C | Black | 3 | ISO 10993 UL Style 20668 | 19 | 0.0117 in | 16 AWG |
