146175 Series
Manufacturer: Molex
Beta
⌘K

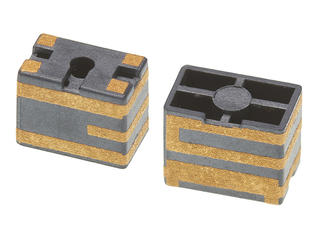

2.4GHZ / 5GHZ SMT MID CHIP ANTENNA, 5.00MM BY 3.00MM
| Part | Antenna Type | Frequency Group | Height (Max) [z] | Height (Max) [z] | RF Family/Standard | Gain | Return Loss | Frequency Range [Min] | Frequency Range [Max] | Number of Bands | Applications | Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Chip | SHF UHF | 4 mm | 0.157 in | WiFi | 4.2 dBi | -6 dB | 2.4 GHz 5.15 GHz | 5.85 GHz 2485 MHz | 2 | WLAN | Solder | Surface Mount |
