RELAY SOCKETS & HARDWARE RV8H C1D2 RELAY SCREW SOCKET
| Part | For Use With/Related Products | Type | Number of Positions | Mounting Type | Termination Style | Accessory Type | Must Operate Voltage | Approval Agency | Coil Type | Coil Current | Switching Voltage | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Must Release Voltage | Release Time | Relay Type | Contact Material | Contact Rating (Current) | Coil Voltage | Contact Form | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IDEC | RV8H Series | Socket | 5 | DIN Rail | Screw Terminal | |||||||||||||||||
 IDEC | RV8H Series | Socket | 5 | DIN Rail | Screw Terminal | |||||||||||||||||
RV8H RV8S Series | Label Strips Tags | |||||||||||||||||||||
 IDEC | Socket | 5 | DIN Rail | Screw Terminal | ||||||||||||||||||
IDEC | Through Hole | PC Pin | 9.6 VDC | CE cULus | Non Latching | 31.7 mA | 250 VAC | 15 ms | 55 °C | -40 C | 0.84 VDC | 15 ms | General Purpose | Gold (Au) Silver Nickel (AgNi) | 8 A | 12 VDC | DPDT (2 Form C) | |||||
IDEC | RV8H Series | Socket | 5 | DIN Rail | Screw Terminal | |||||||||||||||||
IDEC | RV8 Series | Socket | 5 | DIN Rail | Spring Terminal | |||||||||||||||||

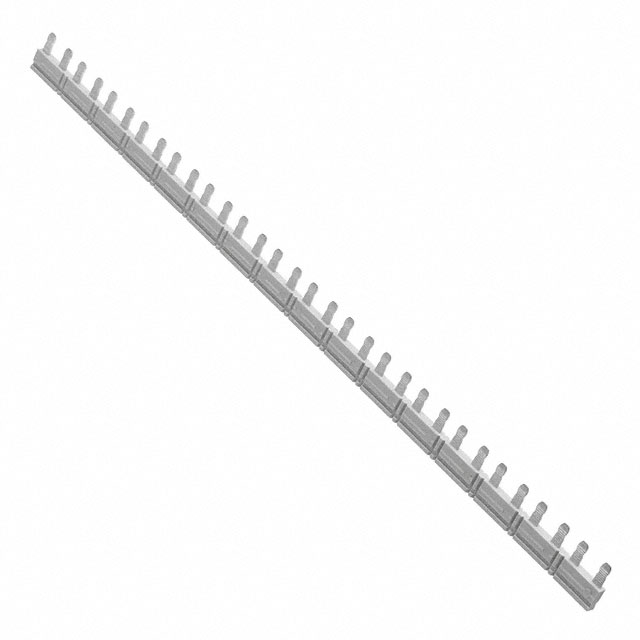

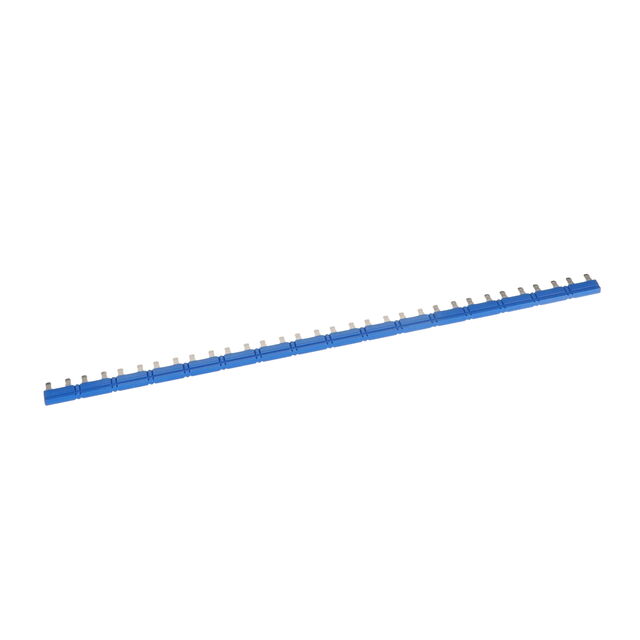

 IDEC | RV8 Series | Jumper | ||||||||||||||||||||
IDEC | Through Hole | PC Pin | 8.1 VDC | CE cULus VDE | Non Latching | 18.6 mA | 125 VDC 400 VAC | 15 ms | 70 °C | -40 C | 0.63 VDC | 20 ms | General Purpose | Gold (Au) Silver Nickel (AgNi) | 6 A | 9 VDC | SPDT (1 Form C) | 750 W 2400 VA |
