175042 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

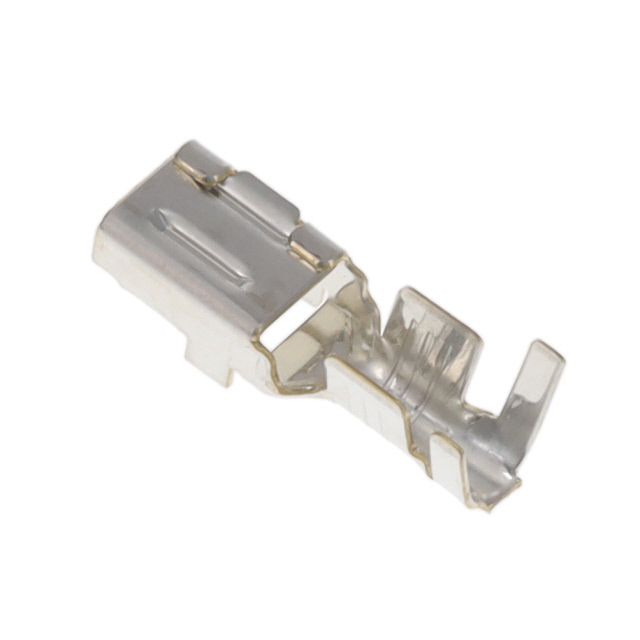

TERMINALS 187 SERIES REC CONTACT
| Part | Insulation | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Terminal Type | Termination | Contact Finish | Wire Gauge [Max] | Wire Gauge [Min] | Gender | Length - Overall [x] | Length - Overall [x] | Tab Length | Tab Length | Mounting Type | Tab Thickness | Tab Thickness | Contact Material | Tab Width | Tab Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Non-Insulated | 0.12 in | 4.06 mm | 3.05 mm | 0.16 in | Standard | Crimp | Tin | 14 AWG | 12 AWG | Female | 0.709 " | 18 mm | 8 mm | 0.315 in | Free Hanging (In-Line) | 0.032 in | 0.81 mm | Brass | 4.75 mm | 0.187 in |
