5299C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

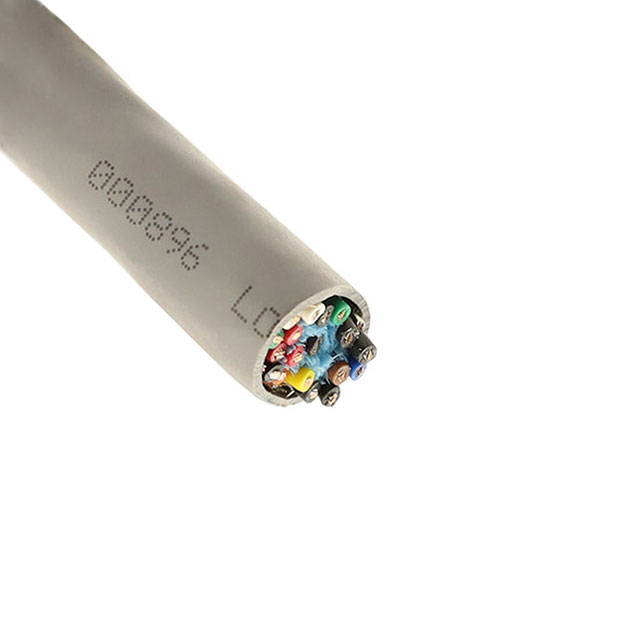

MULTIPAIR CABLE, XTRA GUARD® 1, SHIELDED, 9 PAIR, 20 AWG, 0.56 MM², 500 FT, 152.4 M
| Part | Shield Coverage | Shield Material | Length | Length | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Features | Voltage | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Cable Type | Conductor Insulation | Jacket Color | Shield Type | Number of Conductors | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | 0.515 in | 13.08 mm | -35 °C | 105 ░C | Copper Tinned | Biological Compatibility Drain Wire Rip Cord | 300 VDC | ISO 10993 | 28 AWG | 7 | 20 AWG | Multi-Pair | Poly-Vinyl Chloride (PVC) | Slate | Braid Foil | 18 | Communication Control | 0.813 mm | 0.032 in |
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | 0.515 in | 13.08 mm | -35 °C | 105 ░C | Copper Tinned | Biological Compatibility Drain Wire Rip Cord | 300 VDC | ISO 10993 | 28 AWG | 7 | 20 AWG | Multi-Pair | Poly-Vinyl Chloride (PVC) | Slate | Braid Foil | 18 | Communication Control | 0.813 mm | 0.032 in |
