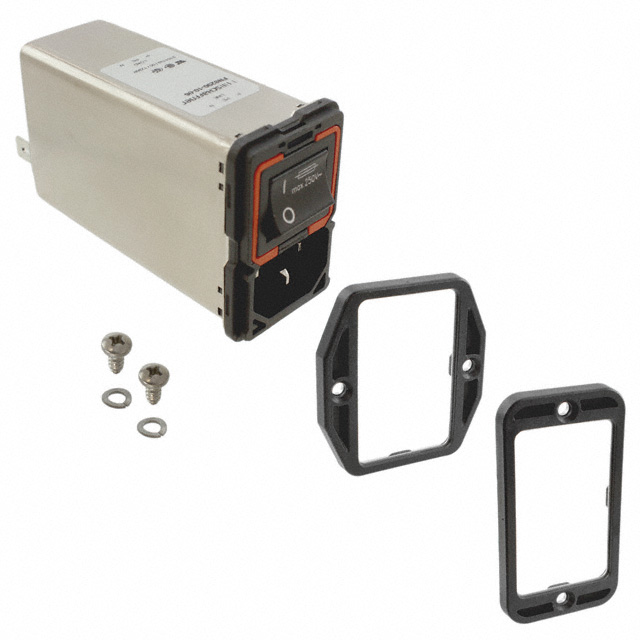

Schaffner FN9290 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Approval Agency	Ingress Protection	Connector Style	Material Flammability Rating	Current Rating - Filter	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Fuse Holder, Drawer	Switch Features	Connector Type	Mounting Type	Filter Type	Termination	Features	Termination	Termination
TE Connectivity AMP Connectors FN9299B-4-100	CQC CSA ENEC UL	IP40	IEC 320-C14	UL94 V-2	4 A	28.8 mm	47.1 mm	2.5 mm	0.039 in	0.098 in	1 mm	Twin Fused	Switch On-Off	Receptacle Male Blades - Module	Panel Mount Snap-In	Filtered (EMI RFI) - Commercial Medical	Spring-Cage
TE Connectivity AMP Connectors FN9290-10-06	CQC CSA ENEC UL	IP40	IEC 320-C14	UL94 V-2	10 A	28.8 mm	47.1 mm					Twin Fused	Switch On-Off	Receptacle Male Blades - Module	Flange Panel Mount	Filtered (EMI RFI) - Commercial	Quick Connect	Front or Rear Side Mount	6.3 mm	0.25 "
TE Connectivity AMP Connectors FN9299B-1-06	CE CQC CSA ENEC UL	IP40	IEC 320-C14	UL94 V-2	1 A	28.8 mm	47.8 mm	2.5 mm	0.039 in	0.098 in	1 mm	Twin Fused	Switch On-Off	Receptacle Male Blades - Module	Panel Mount Snap-In	Filtered (EMI RFI) - Commercial Medical	Quick Connect		6.3 mm	0.25 "
TE Connectivity AMP Connectors FN9290-10-100	CQC CSA ENEC UL	IP40	IEC 320-C14	UL94 V-2	10 A	28.8 mm	47.1 mm					Twin Fused	Switch On-Off	Receptacle Male Blades - Module	Flange Panel Mount	Filtered (EMI RFI) - Commercial	Spring-Cage	Front or Rear Side Mount
TE Connectivity AMP Connectors FN9290-4-100	CQC CSA ENEC UL	IP40	IEC 320-C14	UL94 V-2	4 A	28.8 mm	47.1 mm					Twin Fused	Switch On-Off	Receptacle Male Blades - Module	Flange Panel Mount	Filtered (EMI RFI) - Commercial	Spring-Cage	Front or Rear Side Mount
TE Connectivity AMP Connectors FN9290B-1-06	CE CQC CSA ENEC UL	IP40	IEC 320-C14	UL94 V-2	1 A	28.8 mm	47.1 mm					Twin Fused	Switch On-Off	Receptacle Male Blades - Module	Flange Panel Mount	Filtered (EMI RFI) - Commercial Medical	Quick Connect	Front or Rear Side Mount	6.3 mm	0.25 "
TE Connectivity AMP Connectors FN9290-10-100	CQC CSA ENEC UL	IP40	IEC 320-C14	UL94 V-2	10 A	28.8 mm	47.1 mm					Twin Fused	Switch On-Off	Receptacle Male Blades - Module	Flange Panel Mount	Filtered (EMI RFI) - Commercial	Spring-Cage	Front or Rear Side Mount
TE Connectivity AMP Connectors FN9299B-10-100	CE CQC CSA ENEC UL	IP40	IEC 320-C14	UL94 V-2	10 A	28.8 mm	47.8 mm	2.5 mm	0.039 in	0.098 in	1 mm	Twin Fused	Switch On-Off	Receptacle Male Blades - Module	Panel Mount Snap-In	Filtered (EMI RFI) - Commercial Medical	Spring-Cage
TE Connectivity AMP Connectors FN9292B-1-06	CE CQC CSA ENEC UL	IP40	IEC 320-C14	UL94 V-2	1 A	28.8 mm	47.1 mm					Twin Fused	Switch On-Off	Receptacle Male Blades - Module	Flange Panel Mount	Filtered (EMI RFI) - Commercial Medical	Quick Connect	Front Side Mount	6.3 mm	0.25 "
TE Connectivity AMP Connectors FN9299-2-06	CE CQC CSA ENEC UL	IP40	IEC 320-C14	UL94 V-2	2 A	28.8 mm	47.8 mm	2.5 mm	0.039 in	0.098 in	1 mm	Twin Fused	Switch On-Off	Receptacle Male Blades - Module	Panel Mount Snap-In	Filtered (EMI RFI) - Commercial	Quick Connect		6.3 mm	0.25 "
