RDMBR10 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROTARY DIP BCD 0.1A 42V
| Part | Electrical Life | Length | Length | Mechanical Life | Actuator Level | Voltage Rating | Washable | Contact Finish | Current Rating (Amps) | Circuit | Number of Positions | Height Above Board [z] | Height Above Board [z] | Mounting Type | Actuator Type | Features | Pitch | Pitch | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Height Above Board |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

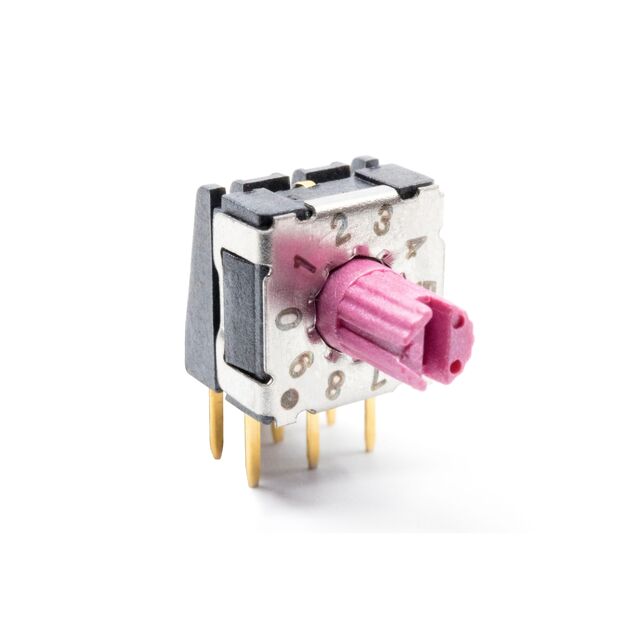

 E-Switch | 25000 Steps | 7.4 mm | 0.291 in | 25000 Steps | Raised | 42 VDC | Gold | 100 mA | BCD | 10 | 0.291 in | 7.39 mm | Right Angle Through Hole | Rotary with Shaft | IP67 - Dust Tight Waterproof | 2.54 mm | 0.1 " | PC Pin | -60 °C | 125 °C | ||

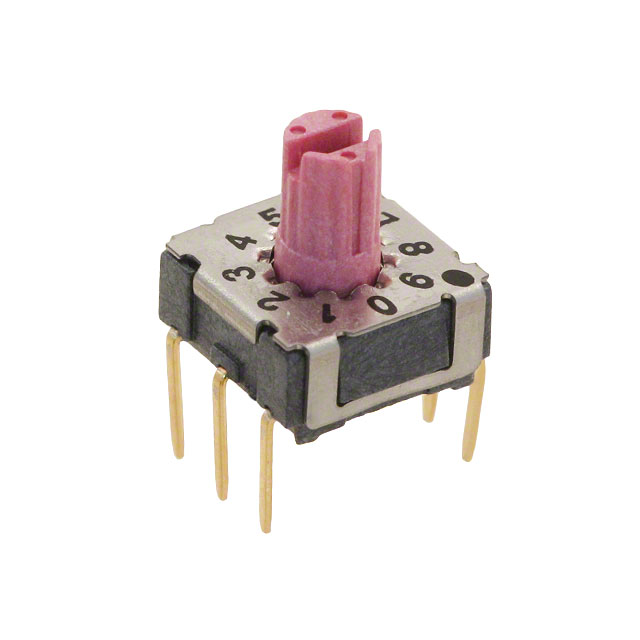

 E-Switch | 25000 Steps | 7.4 mm | 0.291 in | 25000 Steps | Raised | 42 VDC | Gold | 100 mA | BCD | 10 | 0.321 in | Through Hole | Rotary with Shaft | IP67 - Dust Tight Waterproof | 2.54 mm | 0.1 " | PC Pin | -60 °C | 125 °C | 8.15 mm |
