292174 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

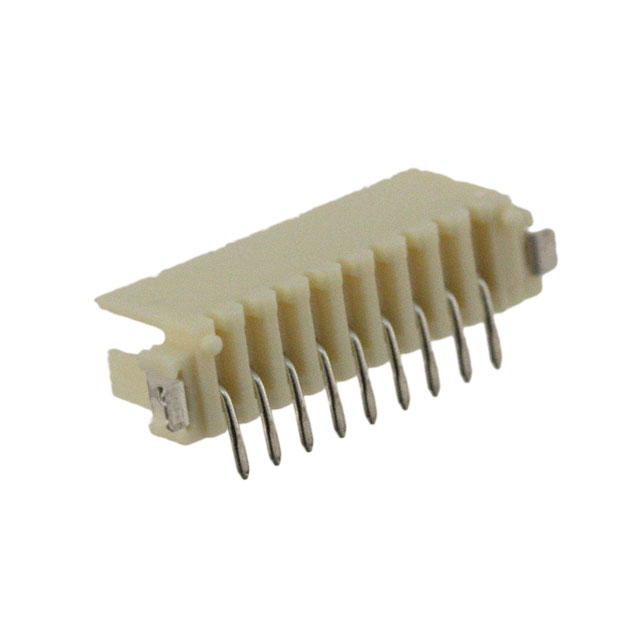

(292174-9) CT BOX HDR V SMT 9P O/TAPE NAT
| Part | Style | Contact Finish - Post | Shrouding | Features | Pitch - Mating [x] | Pitch - Mating [x] | Mounting Type | Number of Positions | Number of Positions Loaded | Applications | Connector Type | Voltage Rating | Termination | Number of Rows | Contact Type | Insulation Color | Contact Length - Mating | Contact Length - Mating | Fastening Type | Material Flammability Rating | Contact Shape | Insulation Material | Current Rating (Amps) | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Board to Cable/Wire | Tin | Shrouded - 4 Wall | Board Guide Solder Retention | 0.079 in | 2 mm | Surface Mount | 9 | All | General Purpose | Header | 125 VAC | Solder | 1 | Male Pin | Natural | 0.177 in | 4.5 mm | Detent Lock | UL94 V-0 | Square | Glass Filled Nylon Polyamide (PA) | Varies by Wire Gauge | Brass |

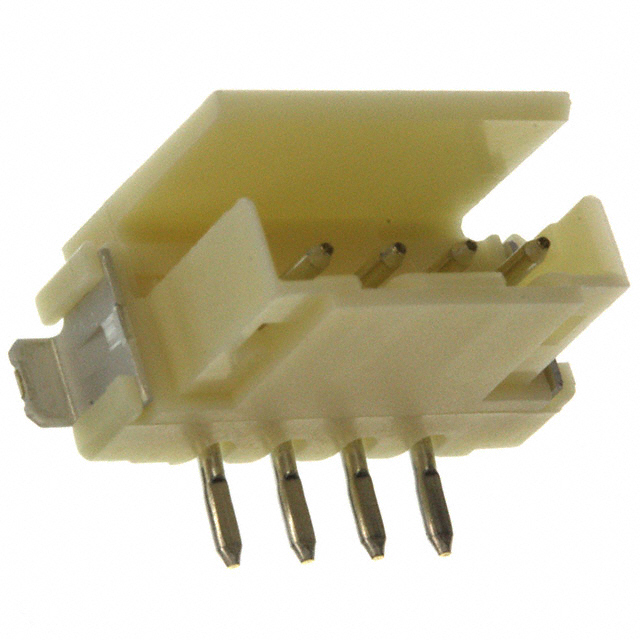

 TE Connectivity Raychem Cable Protection | Board to Cable/Wire | Tin | Shrouded - 4 Wall | Board Guide Solder Retention | 0.079 in | 2 mm | Surface Mount | 4 | All | General Purpose | Header | 125 VAC | Solder | 1 | Male Pin | Natural | 0.177 in | 4.5 mm | Detent Lock | UL94 V-0 | Square | Glass Filled Nylon Polyamide (PA) | Varies by Wire Gauge | Brass |

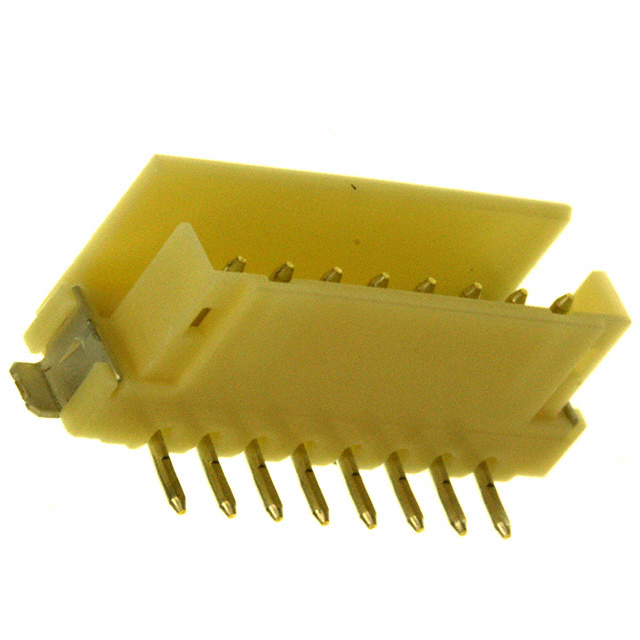

 TE Connectivity Raychem Cable Protection | Board to Cable/Wire | Tin | Shrouded - 4 Wall | Board Guide Solder Retention | 0.079 in | 2 mm | Surface Mount | 8 | All | General Purpose | Header | 125 VAC | Solder | 1 | Male Pin | Natural | 0.177 in | 4.5 mm | Detent Lock | UL94 V-0 | Square | Glass Filled Nylon Polyamide (PA) | Varies by Wire Gauge | Brass |
 TE Connectivity Raychem Cable Protection | Board to Cable/Wire | Tin | Shrouded - 4 Wall | Board Guide Solder Retention | 0.079 in | 2 mm | Surface Mount | All | General Purpose | Header | 125 VAC | Solder | 1 | Male Pin | Natural | 0.177 in | 4.5 mm | Detent Lock | UL94 V-0 | Square | Glass Filled Nylon Polyamide (PA) | Varies by Wire Gauge | Brass | |

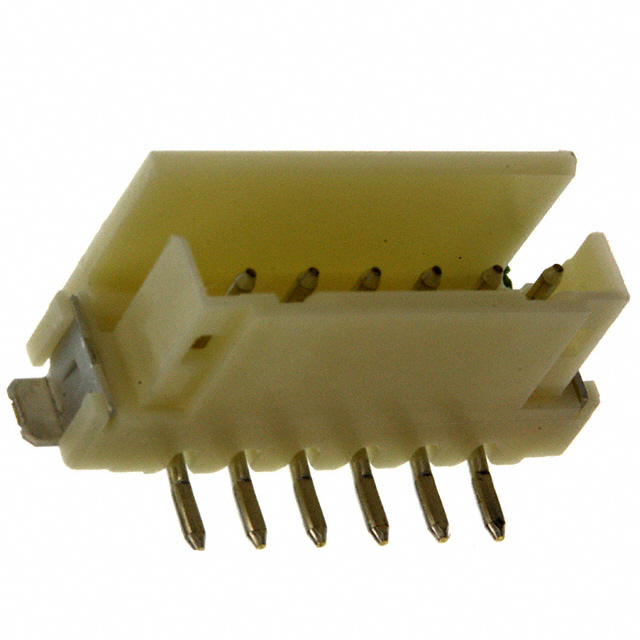

 TE Connectivity Raychem Cable Protection | Board to Cable/Wire | Tin | Shrouded - 4 Wall | Board Guide Solder Retention | 0.079 in | 2 mm | Surface Mount | 6 | All | General Purpose | Header | 125 VAC | Solder | 1 | Male Pin | Natural | 0.177 in | 4.5 mm | Detent Lock | UL94 V-0 | Square | Glass Filled Nylon Polyamide (PA) | Varies by Wire Gauge | Brass |

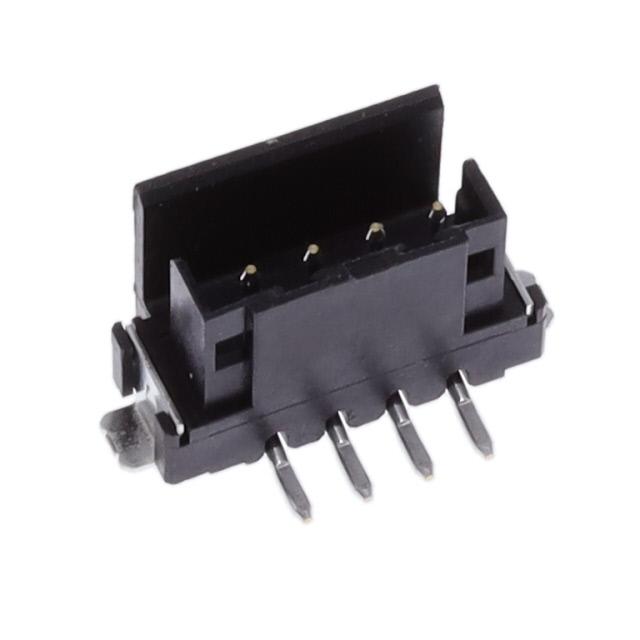

 TE Connectivity Raychem Cable Protection | Board to Cable/Wire | Tin | Shrouded - 4 Wall | Board Guide Solder Retention | 0.079 in | 2 mm | Surface Mount | 4 | All | General Purpose | Header | 125 VAC | Solder | 1 | Male Pin | Black | 0.177 in | 4.5 mm | Detent Lock | UL94 V-0 | Square | Glass Filled Nylon Polyamide (PA) | Varies by Wire Gauge | Brass |
