MAN67 Series

Catalog

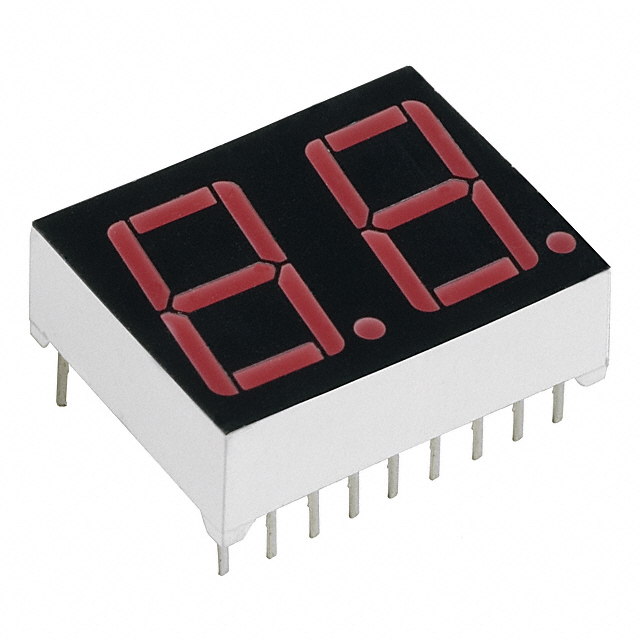

DISP 7SEG 0.56" 1.5DIG RED 18DIP

Part	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Common Pin	Package / Case	Package / Case	Package / Case	Digit/Alpha Size	Digit/Alpha Size	Display Type	Current - Test	Color	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Number of Characters	Wavelength - Peak	Power Dissipation (Max) [Max]	Package / Case
ON Semiconductor MAN6730	0.42 mcd	2 V	Common Anode	0.6 in 15	15.24 mm	18-DIP	0.56 in	14.22 mm	7-Segment	20 mA	Red	0.75 in	0.315 "	8 mm	0.985 "	25.02 mm	19.05 mm	1.5	650 nm	840 mW
ON Semiconductor MAN6750	0.42 mcd	2 V	Common Cathode	0.6 in 15	15.24 mm	18-DIP	0.56 in	14.22 mm	7-Segment	20 mA	Red	0.75 in	0.315 "	8 mm	0.985 "	25.02 mm	19.05 mm	1.5	650 nm	840 mW
ON Semiconductor MAN6740	0.42 mcd	2 V	Common Cathode		0.6 in	18-DIP	0.56 in	14.22 mm	7-Segment	20 mA	Red	0.75 in	0.315 "	8 mm	0.985 "	25.02 mm	19.05 mm	2	650 nm	960 mW	15.24 mm
