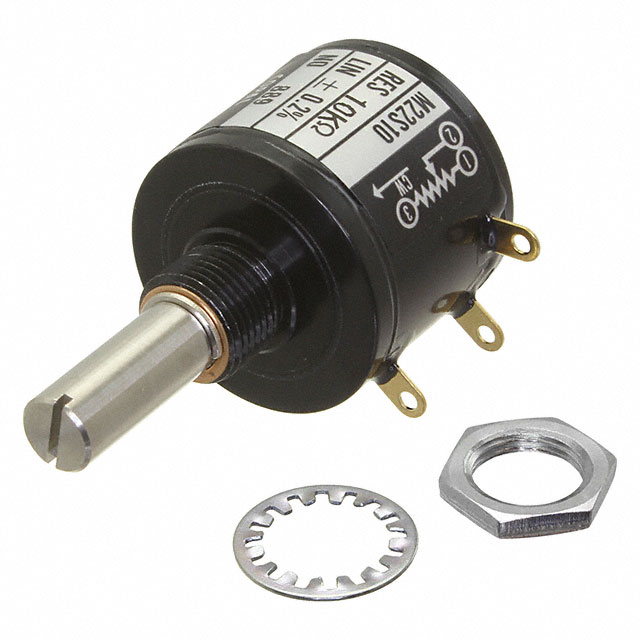

M-22S10 Series

Manufacturer: Nidec Components Corporation

Catalog

POT 10K OHM 2W WIREWOUND LINEAR

Part	Size - Body [diameter]	Size - Body [diameter]	Built in Switch	Adjustment Type	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Termination Style	Temperature Coefficient	Actuator Length [x]	Actuator Length [x]	Number of Gangs	Power (Watts)	Number of Turns	Actuator Type	Tolerance	Taper	Resistance (Ohms)	Mounting Type	Resistive Material	Bushing Thread	Rotation	Resistance (Ohms)	Resistance (Ohms) [custom]
Nidec Components Corporation M-22S10 10K	0.866 "	22 mm	None	User Defined	6 mm	0.236 in	Solder Lug	50 ppm/░C	0.906 in	23 mm	1	2 W	10	Slotted	0.2 %	Linear	10k	Panel Mount	Wirewound	M9 x 0.75	3600 °
Nidec Components Corporation M-22S10 20K	0.866 "	22 mm	None	User Defined	6 mm	0.236 in	Solder Lug	50 ppm/░C	0.906 in	23 mm	1	2 W	10	Slotted	0.2 %	Linear		Panel Mount	Wirewound	M9 x 0.75	3600 °	20 kOhms
Nidec Components Corporation M-22S10 5K	0.866 "	22 mm	None	User Defined	6 mm	0.236 in	Solder Lug	50 ppm/░C	0.906 in	23 mm	1	2 W	10	Slotted	0.2 %	Linear		Panel Mount	Wirewound	M9 x 0.75	3600 °	5 kOhms
Nidec Components Corporation M-22S10 50K	0.866 "	22 mm	None	User Defined	6 mm	0.236 in	Solder Lug	50 ppm/░C	0.906 in	23 mm	1	2 W	10	Slotted	0.2 %	Linear		Panel Mount	Wirewound	M9 x 0.75	3600 °		50 kOhms
Nidec Components Corporation M-22S10 100	0.866 "	22 mm	None	User Defined	6 mm	0.236 in	Solder Lug	50 ppm/░C	0.906 in	23 mm	1	2 W	10	Slotted	0.2 %	Linear		Panel Mount	Wirewound	M9 x 0.75	3600 °		100 Ohms
Nidec Components Corporation M-22S10 1K	0.866 "	22 mm	None	User Defined	6 mm	0.236 in	Solder Lug	50 ppm/░C	0.906 in	23 mm	1	2 W	10	Slotted	0.2 %	Linear	1k	Panel Mount	Wirewound	M9 x 0.75	3600 °
Nidec Components Corporation M-22S10 200	0.866 "	22 mm	None	User Defined	6 mm	0.236 in	Solder Lug	50 ppm/░C	0.906 in	23 mm	1	2 W	10	Slotted	0.2 %	Linear		Panel Mount	Wirewound	M9 x 0.75	3600 °		200 Ohms
Nidec Components Corporation M-22S10 500	0.866 "	22 mm	None	User Defined	6 mm	0.236 in	Solder Lug	50 ppm/░C	0.906 in	23 mm	1	2 W	10	Slotted	0.2 %	Linear		Panel Mount	Wirewound	M9 x 0.75	3600 °		500 Ohms
Nidec Components Corporation M-22S10 2K	0.866 "	22 mm	None	User Defined	6 mm	0.236 in	Solder Lug	50 ppm/░C	0.906 in	23 mm	1	2 W	10	Slotted	0.2 %	Linear		Panel Mount	Wirewound	M9 x 0.75	3600 °	2 kOhms
