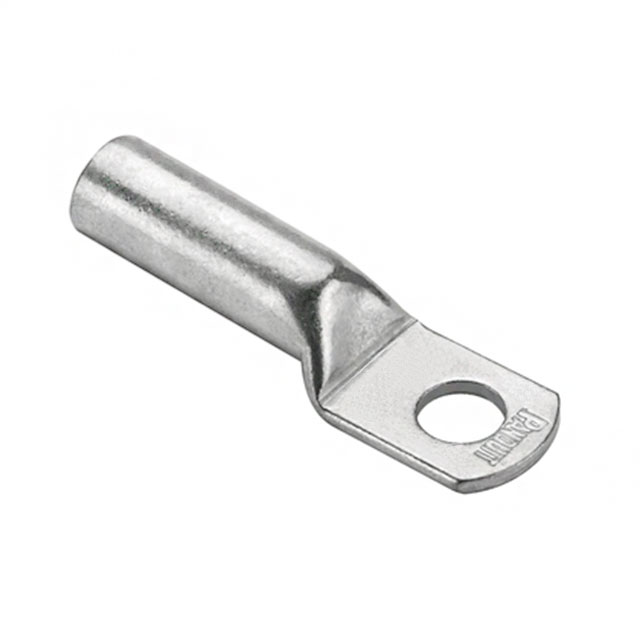

LCMB Series

Catalog

CONN TERM RECT RING 95MM #M16

Part	Width - Outer Edges [y]	Width - Outer Edges [y]	Contact Finish	Contact Material	Insulation	Terminal Type	Length - Overall [x]	Length - Overall [x]	Thickness [x]	Thickness [x]	Stud/Tab Size	Termination	Wire Gauge	Mounting Type	Thickness	Thickness	Length - Overall	Width - Outer Edges [x]	Width - Outer Edges [x]	Width - Outer Edges
Panduit Corp LCMB95-16-X	0.965 in	24.51 mm	Tin	Copper	Non-Insulated	Flat Sided Tubular (Battery Lugs)	78.99 mm	3.11 in	2.9 mm	0.114 in	M16 Stud	Crimp	95 mm²	Free Hanging (In-Line)
Panduit Corp LCMB25-10-L	0.61 in	15.49 mm	Tin	Copper	Non-Insulated	Flat Sided Tubular (Battery Lugs)	48.7 mm	1.917 in			M10 Stud	Crimp	25 mm²	Free Hanging (In-Line)	0.059 in	1.5 mm
Panduit Corp LCMB35-10-Q	0.61 in	15.49 mm	Tin	Copper	Non-Insulated	Flat Sided Tubular (Battery Lugs)	57.3 mm	2.256 in			M10 Stud	Crimp	35 mm˛	Free Hanging (In-Line)	0.081 in	2.05 mm
Panduit Corp LCMB50-8-E	0.709 in	18 mm	Tin	Copper	Non-Insulated	Flat Sided Tubular (Battery Lugs)	62.79 mm	2.472 in			M8 Stud	Crimp	50 mm²	Free Hanging (In-Line)	0.098 in	2.49 mm
Panduit Corp LCMB240-12-6	1.476 "	37.49 mm	Tin	Copper	Non-Insulated	Flat Sided Tubular (Battery Lugs)		4.528 in			M12 Stud	Crimp	240 mm˛	Free Hanging (In-Line)	0.209 in	5.3 mm	115 mm
Panduit Corp LCMB150-8-X			Tin	Copper	Non-Insulated	Flat Sided Tubular (Battery Lugs)	100 mm	3.937 in			M8 Stud	Crimp	150 mm²	Free Hanging (In-Line)	0.175 in	4.45 mm		30.51 mm	1.201 in
Panduit Corp LCMB150-10-X			Tin	Copper	Non-Insulated	Flat Sided Tubular (Battery Lugs)	100 mm	3.937 in			M10 Stud	Crimp	150 mm²	Free Hanging (In-Line)	0.175 in	4.45 mm		30.51 mm	1.201 in
Panduit Corp LCMB95-12-X	0.965 in	24.51 mm	Tin	Copper	Non-Insulated	Flat Sided Tubular (Battery Lugs)	78.99 mm	3.11 in			M12 Stud	Crimp	95 mm²	Free Hanging (In-Line)	0.118 in	3 mm
Panduit Corp LCMB35-6-Q	0.61 in	15.49 mm	Tin	Copper	Non-Insulated	Flat Sided Tubular (Battery Lugs)	57.3 mm	2.256 in			M6 Stud	Crimp	35 mm˛	Free Hanging (In-Line)	0.081 in	2.05 mm
Panduit Corp LCMB400-20-6	1.949 in		Tin	Copper	Non-Insulated	Flat Sided Tubular (Battery Lugs)	127.4 mm	5.016 in			M20 Stud	Crimp	400 mm²	Free Hanging (In-Line)	0.295 in	7.5 mm				49.5 mm
