5591301 Series
Manufacturer: DIALIGHT
Beta
⌘K

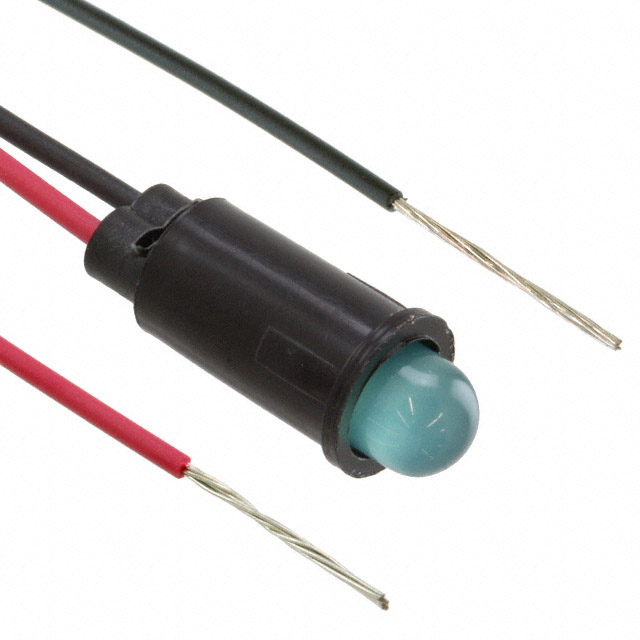

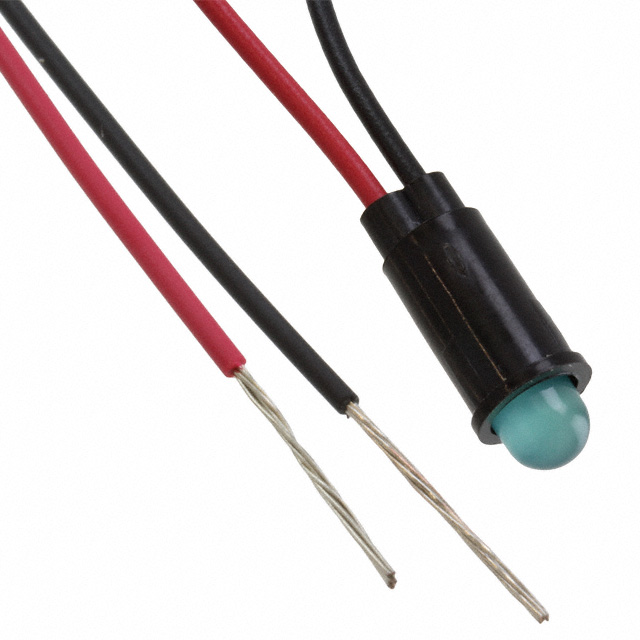

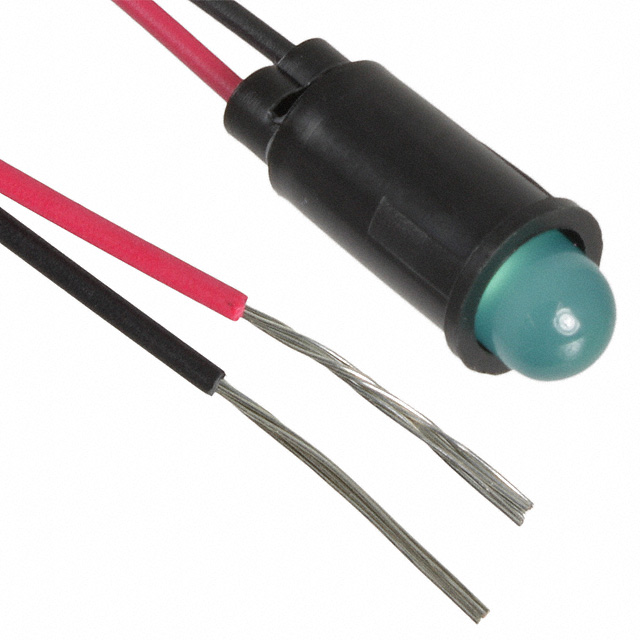

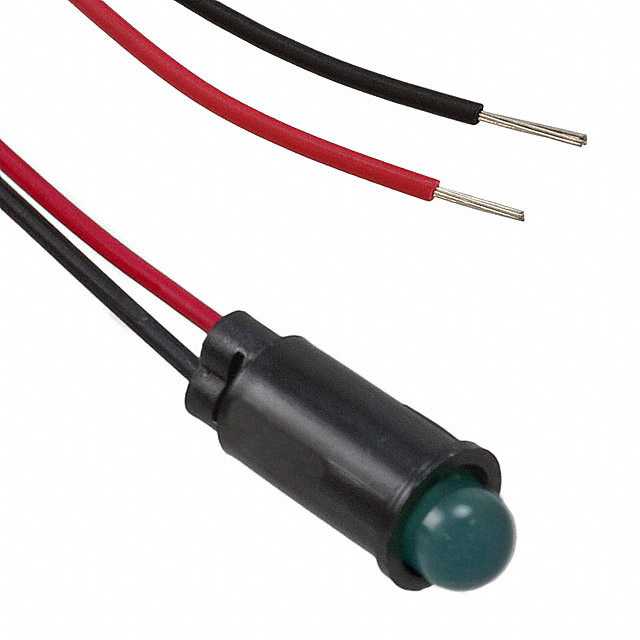

LED PMI SNAP-IN GRN PVC FREE
| Part | Lens Transparency | Viewing Angle | Current | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [x] | Type | Lamp Color | Panel Cutout Shape | Wavelength - Peak | Lens Color | Lens Style | Voltage | Millicandela Rating | Lens Size | Lens Size | Termination Style | Termination Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 DIALIGHT | Diffused | 50 ° | 7 mA | 6.35 mm | 0.25 in | LED | Green | Round | 565 nm | Green | Round with Domed Top | 1.8 V | 1.8 mcd | 5 mm | T-1 3/4 | |||
 DIALIGHT | Diffused | 50 ° | 7 mA | 6.35 mm | 0.25 in | LED | Green | Round | 565 nm | Green | Round with Domed Top | 1.8 V | 1.8 mcd | 5 mm | T-1 3/4 | |||
 DIALIGHT | Diffused | 50 ° | 7 mA | 6.35 mm | 0.25 in | LED | Green | Round | 565 nm | Green | Round with Domed Top | 1.8 V | 1.8 mcd | 5 mm | T-1 3/4 | Wire Leads | 14 in | 355.6 mm |
 DIALIGHT | Diffused | 50 ° | 7 mA | 6.35 mm | 0.25 in | LED | Green | Round | 565 nm | Yellow | Round with Domed Top | 1.8 V | 1.8 mcd | 5 mm | T-1 3/4 | |||
 DIALIGHT | Diffused | 50 ° | 7 mA | 6.35 mm | 0.25 in | LED | Green | Round | 565 nm | Green | Round with Domed Top | 1.8 V | 1.8 mcd | 5 mm | T-1 3/4 | Wire Leads | 14 in | 355.6 mm |
