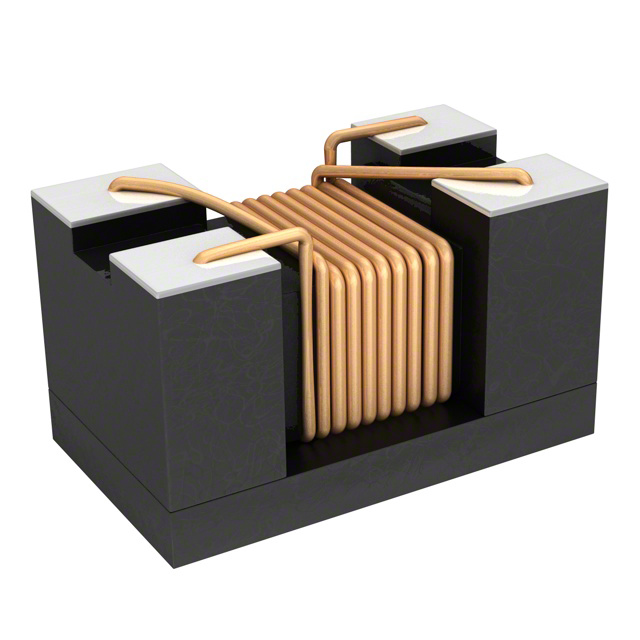

SRF2012 Series

Catalog

CMC 290MA 2LN 300 OHM SMD

Part	Package / Case	Mounting Type	Height (Max) [z]	Height (Max) [z]	Current Rating (Max) [Max]	Number of Lines	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Impedance @ Frequency	Voltage Rating - DC	DC Resistance (DCR) (Max) [Max]	DC Resistance (DCR) (Max)
Bourns Inc. SRF2012-301Y	Horizontal 4 PC Pad	Surface Mount	1.45 mm	0.057 in	290 mA	2	-55 C	125 °C	1.25 mm	0.081 in	2.05 mm	0.049 "	300 Ohms	50 VDC	400 mOhm
Bourns Inc. SRF2012-900YA	Horizontal 4 PC Pad	Surface Mount	1.4 mm	0.055 in	400 mA	2	-40 C	125 °C	1.2 mm	0.079 in	2 mm	0.047 in	90 Ohms	50 VDC	300 mOhm
Bourns Inc. SRF2012-121YA	Horizontal 4 PC Pad	Surface Mount	1.4 mm	0.055 in	400 mA	2	-40 C	125 °C	1.2 mm	0.079 in	2 mm	0.047 in	120 Ohms	50 VDC	300 mOhm
Bourns Inc. SRF2012-301YA	Horizontal 4 PC Pad	Surface Mount	1.4 mm	0.055 in	300 mA	2	-40 C	125 °C	1.2 mm	0.079 in	2 mm	0.047 in	300 Ohms	50 VDC	500 mOhm
Bourns Inc. SRF2012-361YA	Horizontal 4 PC Pad	Surface Mount	1.4 mm	0.055 in	300 mA	2	-40 C	125 °C	1.2 mm	0.079 in	2 mm	0.047 in	360 Ohms	50 VDC	500 mOhm
Bourns Inc. SRF2012-261Y	Horizontal 4 PC Pad	Surface Mount	1.45 mm	0.057 in	300 mA	2	-55 C	125 °C	1.25 mm	0.081 in	2.05 mm	0.049 "	260 Ohms	50 VDC	400 mOhm
Bourns Inc. SRF2012-671YA	Horizontal 4 PC Pad	Surface Mount	1.4 mm	0.055 in	140 mA	2	-40 C	125 °C	1.2 mm	0.079 in	2 mm	0.047 in	670 Ohms	50 VDC		600 mOhm
Bourns Inc. SRF2012-161YA	Horizontal 4 PC Pad	Surface Mount	1.4 mm	0.055 in	350 mA	2	-40 C	125 °C	1.2 mm	0.079 in	2 mm	0.047 in	160 Ohms	50 VDC	350 mOhm
Bourns Inc. SRF2012-371YA	Horizontal 4 PC Pad	Surface Mount	1.4 mm	0.055 in	300 mA	2	-40 C	125 °C	1.2 mm	0.079 in	2 mm	0.047 in	370 Ohms	50 VDC	500 mOhm
Bourns Inc. SRF2012-181Y	Horizontal 4 PC Pad	Surface Mount	1.45 mm	0.057 in	330 mA	2	-55 C	125 °C	1.25 mm	0.081 in	2.05 mm	0.049 "	180 Ohms	50 VDC	350 mOhm
