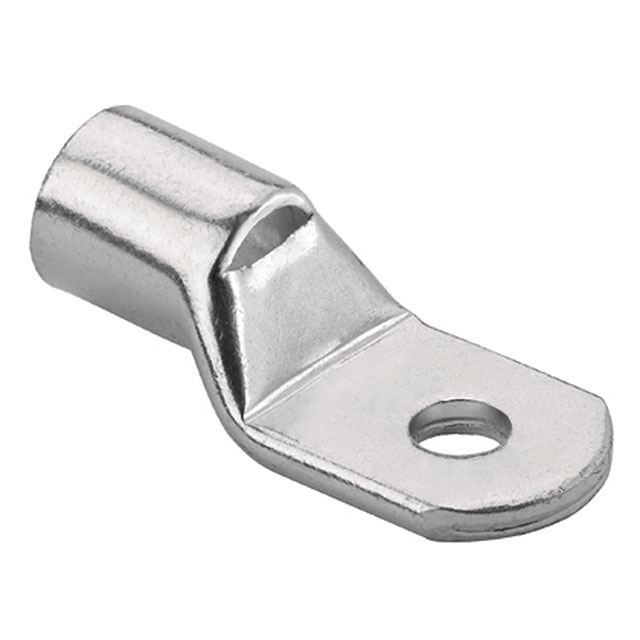

LCMA Series

Catalog

CONN TERM RECT RING 185MM #M16

Part	Insulation	Termination	Mounting Type	Terminal Type	Stud/Tab Size	Width - Outer Edges	Width - Outer Edges	Contact Finish	Contact Material	Wire Gauge	Thickness	Thickness	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges [x]	Width - Outer Edges [x]	Wire Gauge [Max]	Wire Gauge [Min]	Thickness [custom]	Thickness [custom]

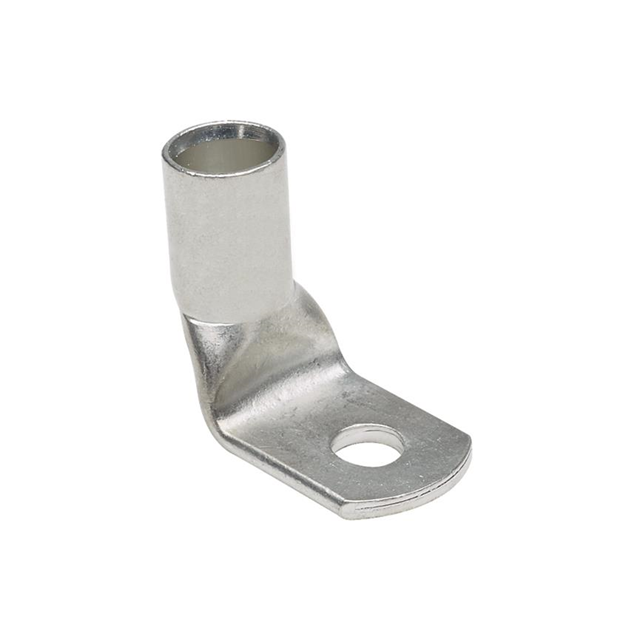

Panduit Corp LCMA185-16F-X	Non-Insulated	Crimp Flag	Free Hanging (In-Line) Right Angle	Flat Sided Tubular (Battery Lugs)	M16 Stud	1.319 in	33.5 mm	Tin	Copper	185 mm²
Panduit Corp LCMA70-10-L	Non-Insulated	Crimp	Free Hanging (In-Line)	Flat Sided Tubular (Battery Lugs)	M10 Stud			Tin	Copper	70 mm˛	0.112 in	2.85 mm	0.819 "	20.8 mm	2.106 in	53.5 mm

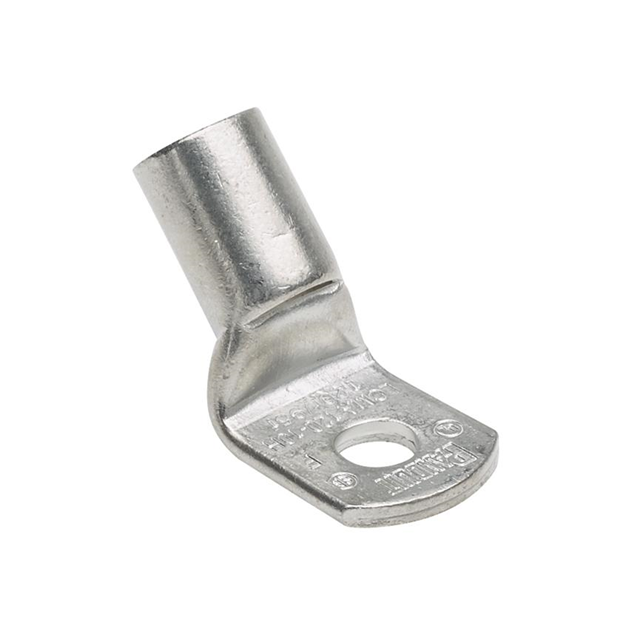

Panduit Corp LCMA50-8H-L	Non-Insulated	Crimp	45° Angle Free Hanging (In-Line)	Flat Sided Tubular (Battery Lugs)	M8 Stud			Tin	Copper	50 mm²			0.709 in	18 mm
Panduit Corp LCMA25-8H-C	Non-Insulated	Crimp	45° Angle Free Hanging (In-Line)	Flat Sided Tubular (Battery Lugs)	M8 Stud			Tin	Copper	16 mm²			0.61 in	15.49 mm
Panduit Corp LCMA6-5-C	Non-Insulated	Crimp	Free Hanging (In-Line)	Flat Sided Tubular (Battery Lugs)	M5 Stud			Tin	Copper						1.083 in	27.51 mm	0.394 in	10 mm	6 mm²	4 mm˛
Panduit Corp LCMA70-6-L	Non-Insulated	Crimp	Free Hanging (In-Line)	Flat Sided Tubular (Battery Lugs)	M6 Stud			Tin	Copper	70 mm˛	0.112 in	2.85 mm	0.819 "	20.8 mm	2.106 in	53.5 mm
Panduit Corp LCMA25-6-C	Non-Insulated	Crimp	Free Hanging (In-Line)	Flat Sided Tubular (Battery Lugs)	M6 Stud			Tin	Copper	25 mm²	0.063 "	1.6 mm	0.551 in	14 mm	1.457 in	37 mm
Panduit Corp LCMA185-16-X	Non-Insulated	Crimp	Free Hanging (In-Line)	Flat Sided Tubular (Battery Lugs)	M16 Stud	1.319 in	33.5 mm	Tin	Copper	185 mm²					2.854 in	72.49 mm					0.173 "	4.4 mm
Panduit Corp LCMA95-16H-L	Non-Insulated	Crimp	45° Angle Free Hanging (In-Line)	Flat Sided Tubular (Battery Lugs)	M16 Stud			Tin	Copper	95 mm²			0.965 in	24.51 mm
Panduit Corp LCMA10-5-C	Non-Insulated	Crimp	Free Hanging (In-Line)	Flat Sided Tubular (Battery Lugs)	M5 Stud			Tin	Copper	10 mm˛	0.047 in	1.19 mm			1.213 in	30.8 mm
