1520230 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
SWITCH TOGGLE DPST 20A 250V
| Part | Circuit | Voltage Rating - AC | Bushing Thread | Termination Style | Current Rating (Amps) | Actuator Type | Illumination | Actuator Length [x] | Switch Function | Color - Actuator/Cap | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Actuator Marking | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

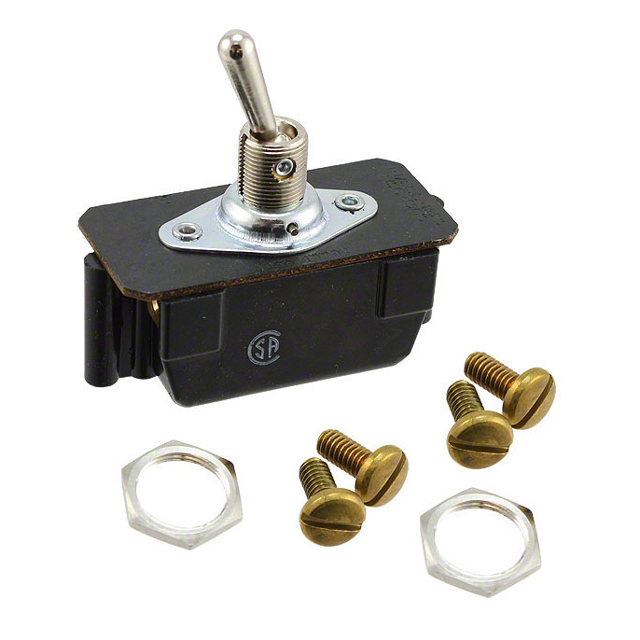

 TE Connectivity Raychem Cable Protection | DPST | 250 V | 15/32-32 | Screw Terminal | 20 A | Standard Round | Non-Illuminated | 20.65 mm | On-Off | |||||

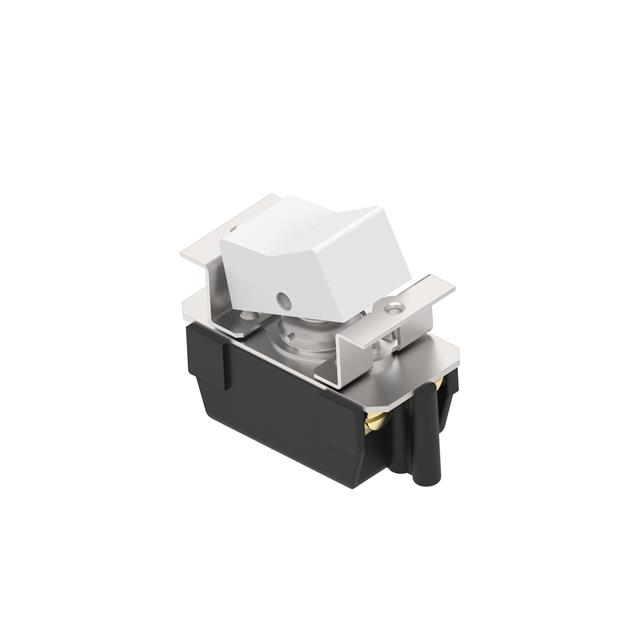

 TE Connectivity Raychem Cable Protection | DPDT | 250 V | Screw Terminal | 20 A | Concave (Standard V) | On-On | White | 32.54 mm | 67.08 mm | No Marking | Flange Panel Mount |
